ADJ Products, LLC - www.adj.com - Hydro Beam X1 User Manual Page 25

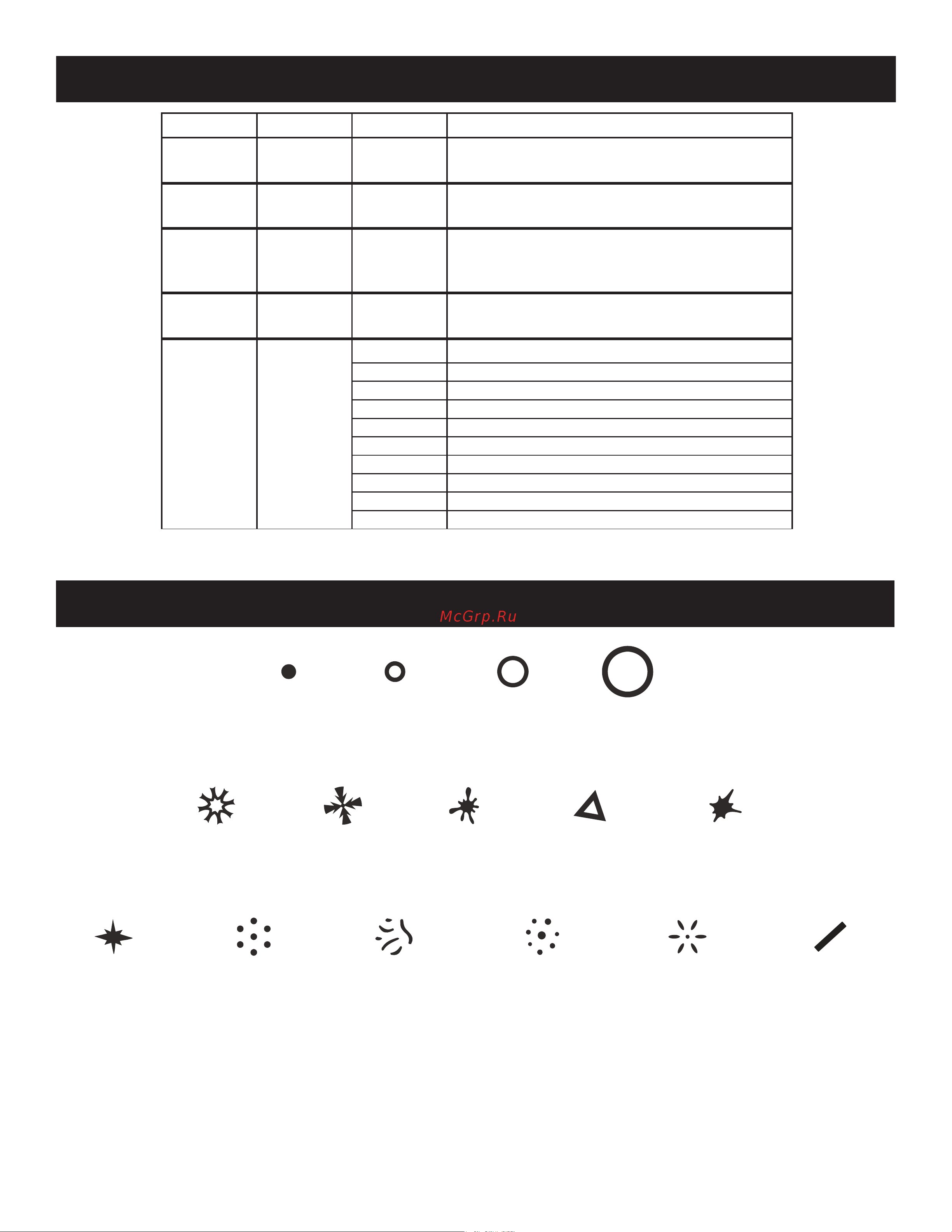

Hydro Beam X1 DMX Channel Modes
DIMMER:
0%-100%
DIMMER FINE:
0%-100%
FROST:
Close
Open
PAN/TILT MOVEMENT SPEED
Fast-Slow
SPECIAL FUNCTIONS:
Null
Lamp On
Reset Pan/Tilt Motors
Reset Effect Motor
Null
Reset All Motors
Null
Lamp Off
Null
Functions
11 Channels 14 Channels Values
000-255
000-255
000-007
008-255
000-255
000-129
130-139
140-149
150-159
160-199
200-209
210-229
230-239
240-255
8 10
9
11
12
13
14
11
10
Hydro Beam X1 Gobos
Gobo 4Gobo 1 Gobo 2 Gobo 3
Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9
Gobo 10 Gobo 11 Gobo 13 Gobo 14 Gobo 15Gobo 12
