Hydro Beam X1 Fixture Installation

Screw one clamp via a M12 screw and nut into the Omega holder. Insert the quick-lock fasteners of

the Omega holder into the respective holes of the adjustable mounting bracket. Tighten the quick-lock

fasteners fully clockwise. Pull the safety-cable through the opening(s) located on the bottom of the

unit and over the trussing system or a safe xation spot. Insert the end in the carabine and tighten

the safety screw.

NOTICE: The suitable enviromental temperature for this lighting xture is between -25˚ C to 45˚ C.

Do not place this lighting xture in an enviroment where the temperatures are under or above the

temperatures stated above. This will allow the xture to run at its best and help prolong the xture

life.

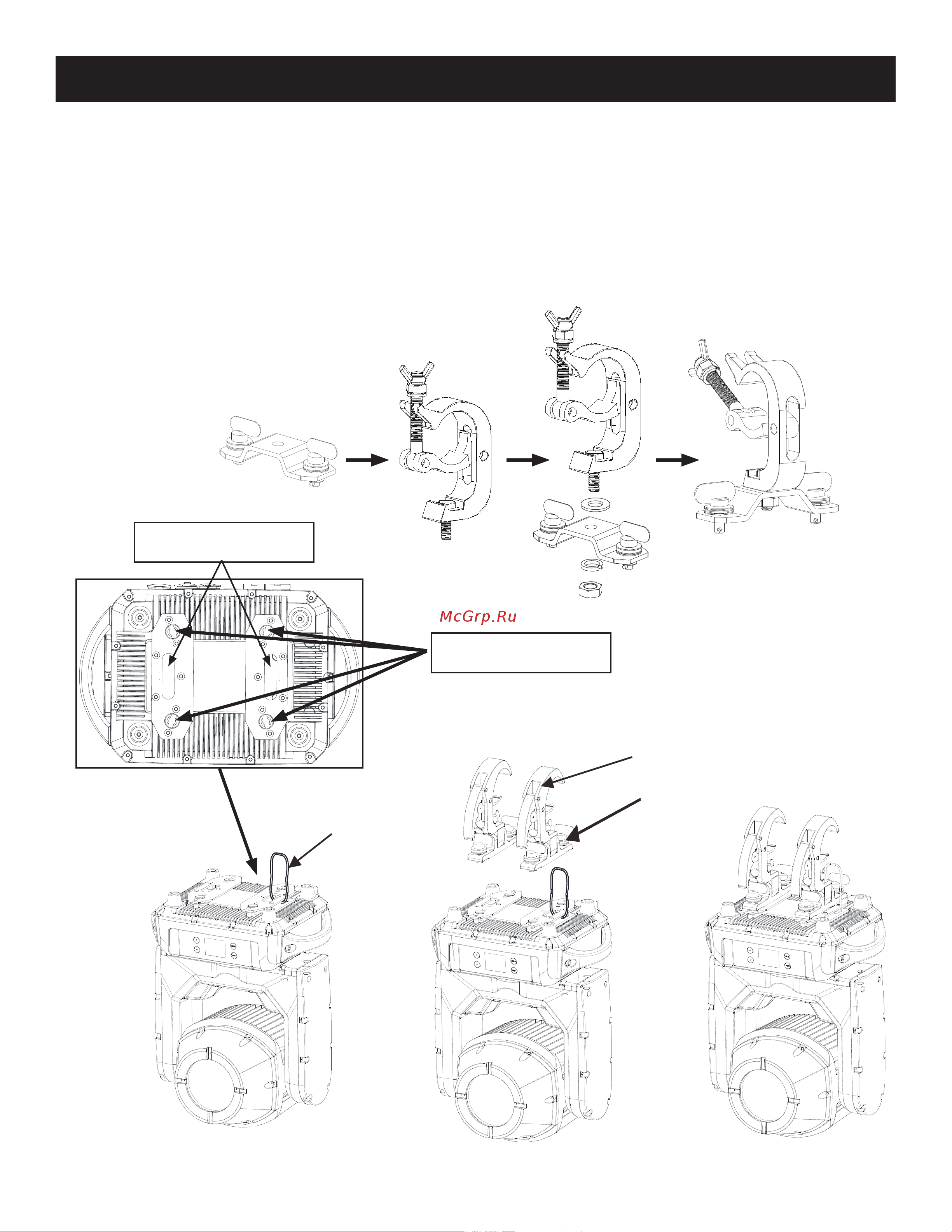

CLAMP AND OMEGA

BRACKET SET UP

SAFETY CABLE

CLAMP

OMEGA BRACKET

SAFETY CABLE

ATTACHMENT POINTS

OMEGA BRACKET

ATTACHMENT POINTS
