BMW C1 (2001) [118/458] Piston removal installation replacement
![BMW C1 (2001) [118/458] Piston removal installation replacement](/views2/1121050/page118/bg76.png)
11.42

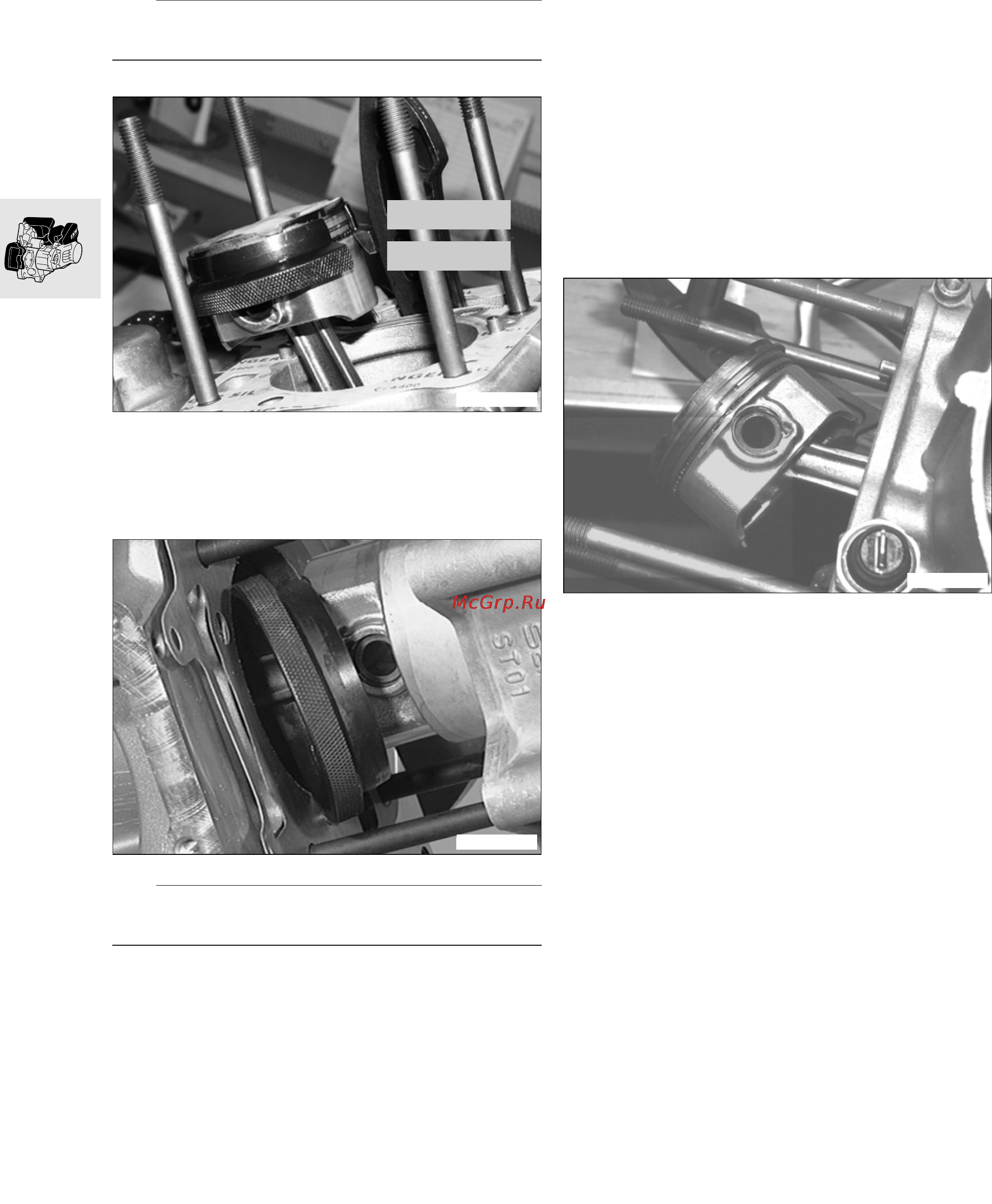

When installing:
L
Note:
Always install with new seal!
•
Secure crankshaft at TDC (
a
11.14)
•
Use ring squeezer sleeve
C1:
BMW No. 11 7 632
C1 200:
BMW No. 11 7 633
L
Note:
Do not damage the piston!
•
Slide cylinder over the piston
•
Carefully slip sleeve up and to one side to re-
move
Replacing stud bolts
– Removing cylinder
•
Use vise grips to remove studs
When installing:
X
Torque specification:
Stud ............................................................. 10 Nm
11 25 050
Piston removal, installation,
replacement
– Removing cylinder
•
Remove circlip
11 7 632
C1111000
11 7 633
C1111010
C1111020
