BMW C1 (2001) [384/458] Mirror removal and installa tion
![BMW C1 (2001) [384/458] Mirror removal and installa tion](/views2/1121050/page384/bg180.png)
51.6
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Never extract the key from the lock barrel when it is
removed, as the tumblers would spring out!
X
Torque specification:
Lock bolt attachment ..................................... 3 Nm
51 16 042

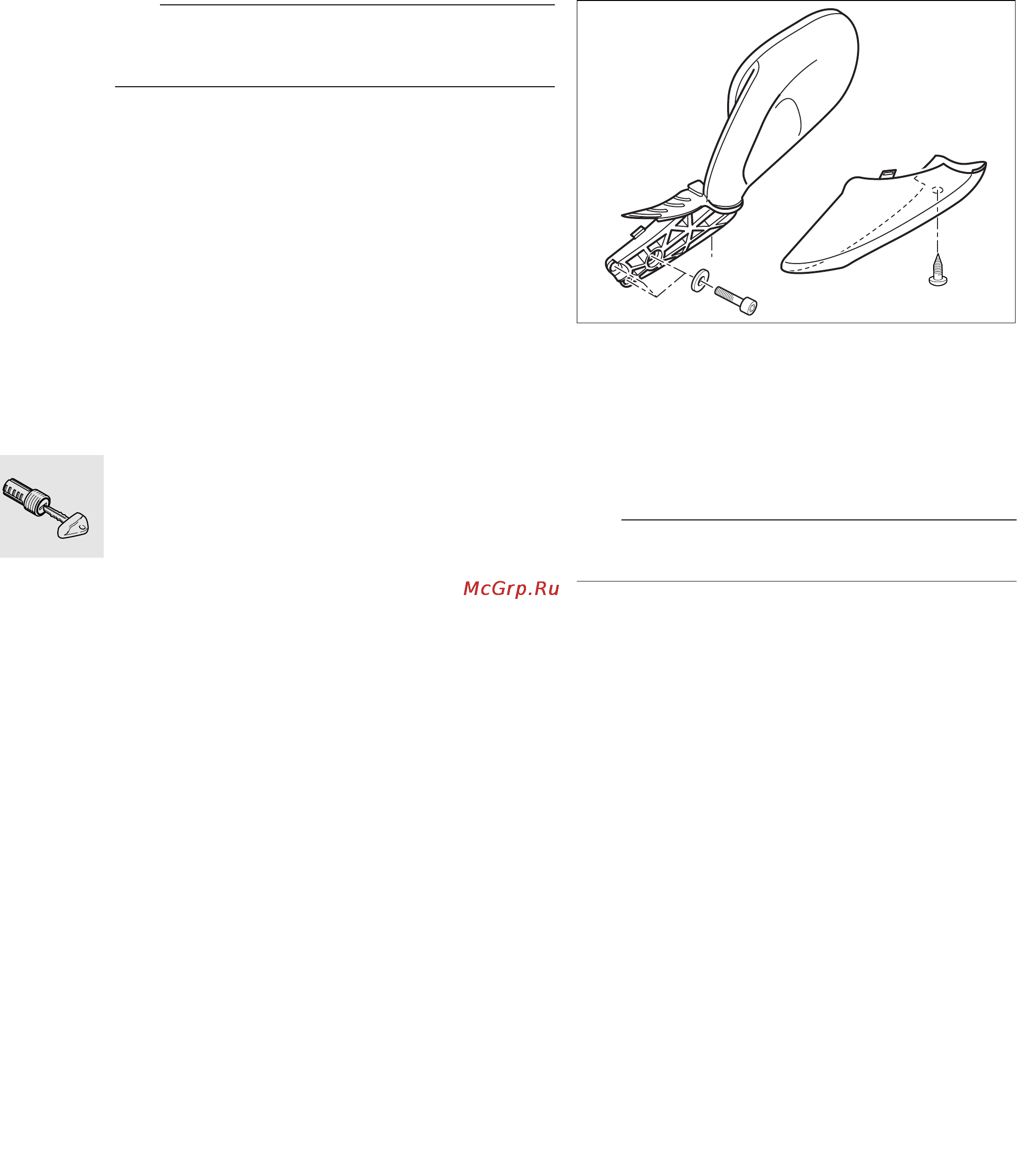

Mirror removal and installa-
tion
•
Remove Phillips screw from housing
•
3x from adapter
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
L
Note:
Note clip with projection!
X
Torque specification:
Mirror attachment........................................... 4 Nm
Cover attachment........................................... 3 Nm
C1460140
