![BMW C1 (2001) [181/458] Removing and installing silencer heat shield](/img/pdf.png)
BMW C1 (2001) [181/458] Removing and installing silencer heat shield
![BMW C1 (2001) [181/458] Removing and installing silencer heat shield](/views2/1121050/page181/bgb5.png)
18.5
18 12 212

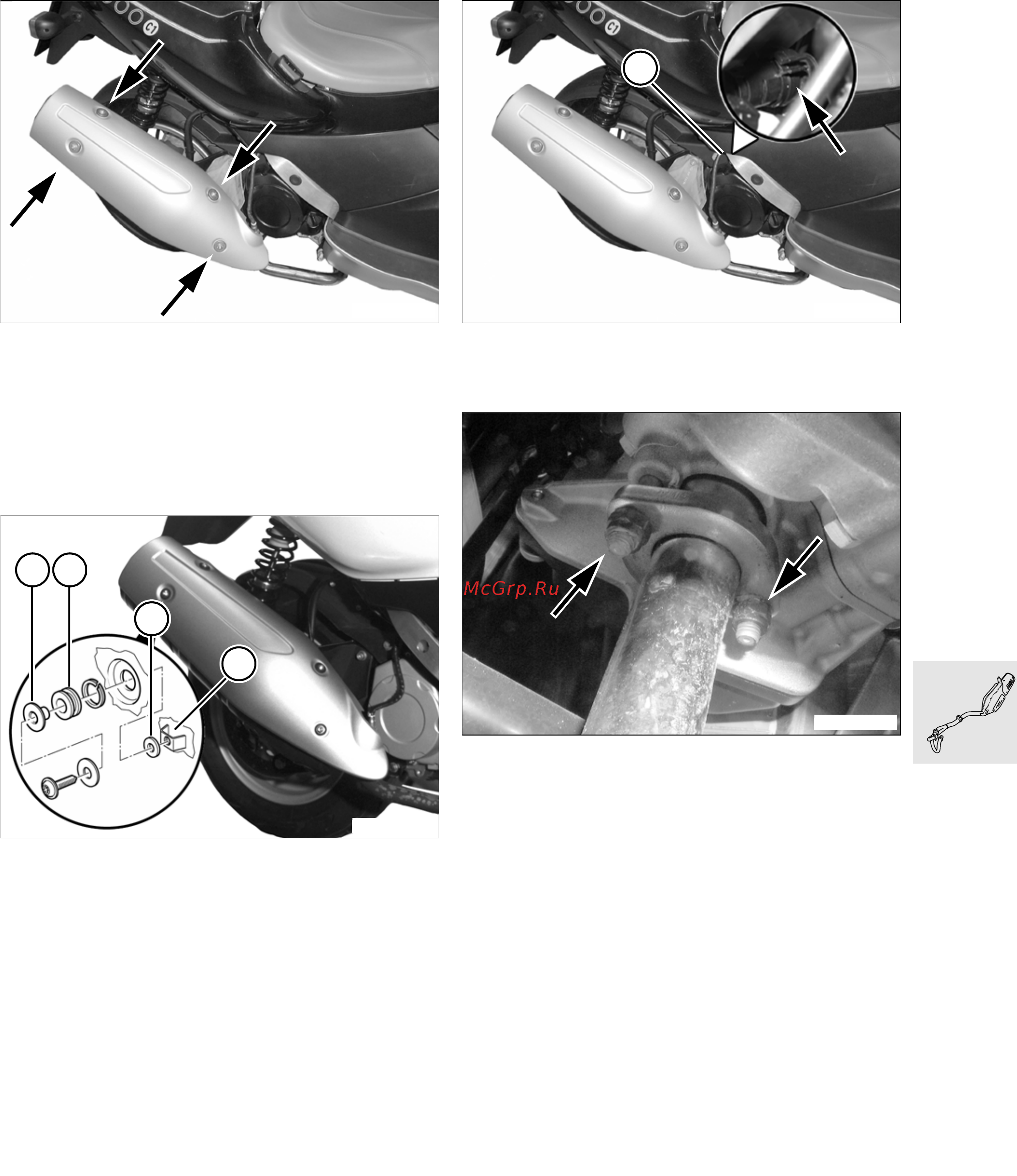

Removing and installing
silencer heat shield
•
Remove 4 fasteners (arrows)
•
Remove exhaust heat shield
When installing:
•
Installation is the reverse of the removal proce-
dure: Pay particular attention to the sequence for
securing the bolts
1Spacing sleeve
2 Rubber grommet
3 Insulating washer
4Cage nut
X
Torque specification:
Exhaust panel mount...................................... 5 Nm
18 00 020
Removing and installing
silencer system
•
Open cable clip (arrow)
•
Disconnect plug (1) from the oxygen sensor
•
Undo 2 mounts (arrows) holding silencer to cylin-
der head
C1180001
C1180010
4
1 2
3
1
C1180021
C1180031
