BMW C1 (2001) [172/458] Checking cooling system for leaks
![BMW C1 (2001) [172/458] Checking cooling system for leaks](/views2/1121050/page172/bgac.png)
17.16
•

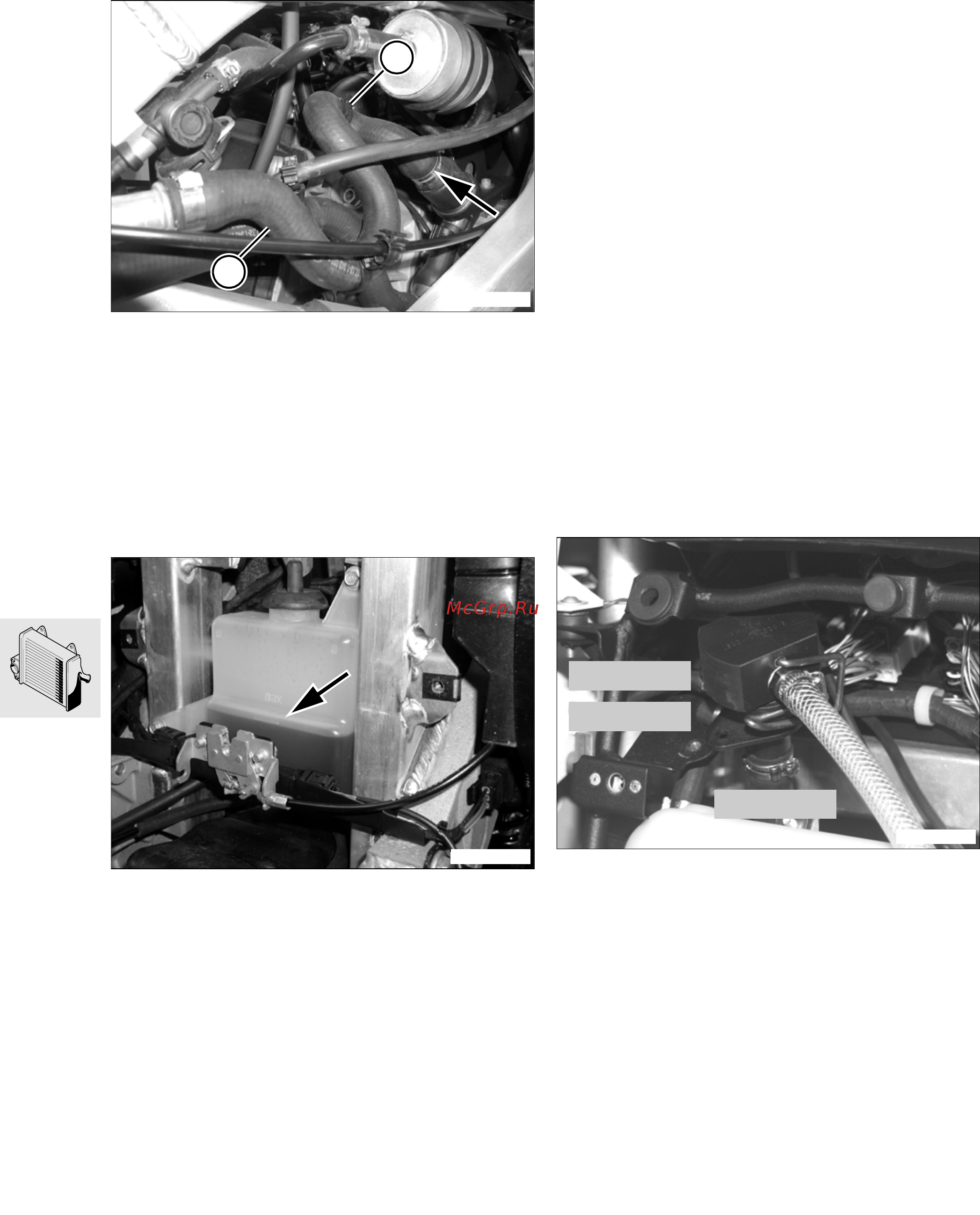

if necessary, squeeze/move moulded return
hose (4) to push trapped air upward in front of
the thermostat (arrow)
•
Secure moulded return hose (4) in bracket (3)
•
Install cap on refill reservoir
Filling expansion tank with coolant
–Open the seat
– Remove the backrest
a
....................................................See Group 52
•
Top up with coolant to the MAX mark (arrow)
•
Install the cap on the expansion tank
Checking coolant level
•
Warm up the engine to operating temperature
•
Check the coolant level in the refill reservoir and
top up if necessary
•
Check the coolant level in the expansion tank
and top up if necessary
Fluids and lubricants
Coolant
in circuit ....................................1.25 l (2.2 Imp pint)
in expansion tank ......................0.2 l (0.35 Imp pint)
Composition
Use only nitride-free extended-duty antifreeze with
corrosion inhibitor
Mixture ratio
Antifreeze.........................................................50%
Water ...............................................................50%
17 00 501
Checking cooling system for
leaks
– Remove front fairing panel
a
....................................................See Group 46
•
Remove the filler cap from the refill reservoir
•
Remove fasteners at refill reservoir
•
Attach pump,
BMW No. 17 0 500,
with
adapter,
BMW No. 17 5 520,
and spring
clamp,
BMW No. 17 5 525,
to refill bag
•
Pressure-test the system; the pressure must re-
main unchanged for at least 5 minutes
Setting:
Test pressure .................................. 1 bar (14.5 psi)
When installing:
•
Installation is the reverse of the removal proce-
dure
C1170181
3
4
C1170121
17 0 500
C1170190
17 5 520
17 5 525
