36.11
36 30 028
Static balancing of front and
rear wheels
36 30 008

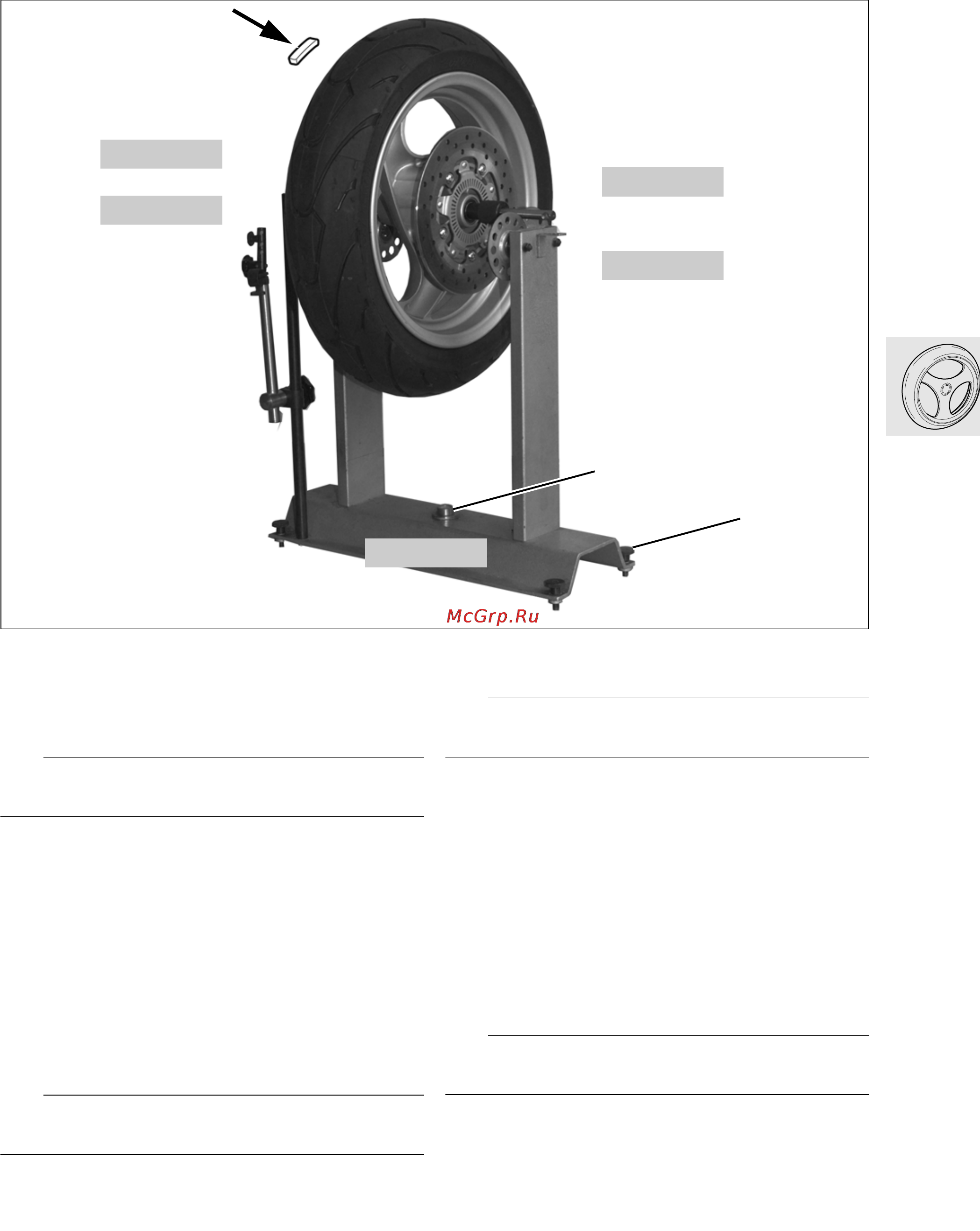

Static balancing of front wheel
L
Note:
The front wheel can also be balanced dynamically
– Level balancing rig,
BMW No. 36 3 601
, using
knurled-head screws (2) and spirit level (1)
•
Insert the balancing shaft,
BMW No. 36 3 617,
through the front wheel
•
Use knurled nut
BMW No. 36 3 617,
to turn bal-
ance shaft hand-tight
•
Place front wheel on balancer
BMW No. 36 3 601
•
Rotate the front wheel and allow it to come to a
hal
•
Clean the attachment points for the adhesive
weights
e
Attention:
Maximum balance weight is 45 g (1.587 oz)!
•
Affix the adhesive weights (arrows) uniformly
spaced on both sides of the rim opposite the
wheel's heaviest point
•
Repeat the balancing procedure as a check
36 30 018
Static balancing of rear wheel
L
Note:
The rear wheel can also be balanced dynamically
– Level balancing rig,
BMW No. 36 3 601
, using
knurled-head screws (2) and spirit level (1)
•
Insert balance shaft
BMW No. 36 3 617,
with
slider
BMW No. 36 3 632,
through rear wheel
•
Use knurled nut
BMW No. 36 3 631,
to pull in
balance shaft hand-tight
•
Place the rear wheel on the balancer,
BMW No. 36 3 601
•
Rotate the rear wheel and allow it to come to a
hal
•
Clean the attachment points for the adhesive
weights
e
Attention:
Maximum balance weight is 45 g (1.587 oz)!
•
Affix the adhesive weights (arrows) uniformly
spaced on both sides of the rim opposite the
wheel's heaviest point
•
Repeat the balancing procedure as a check
C1360060
36 3 601
36 3 617
1
2
36 6 632
36 6 631
36 3 617
