61.10
32 72 110
Combination switch, right,
removal and installation
– Remove handlebar trim
– Remove instrument trim
a
....................................................See Group 46
•

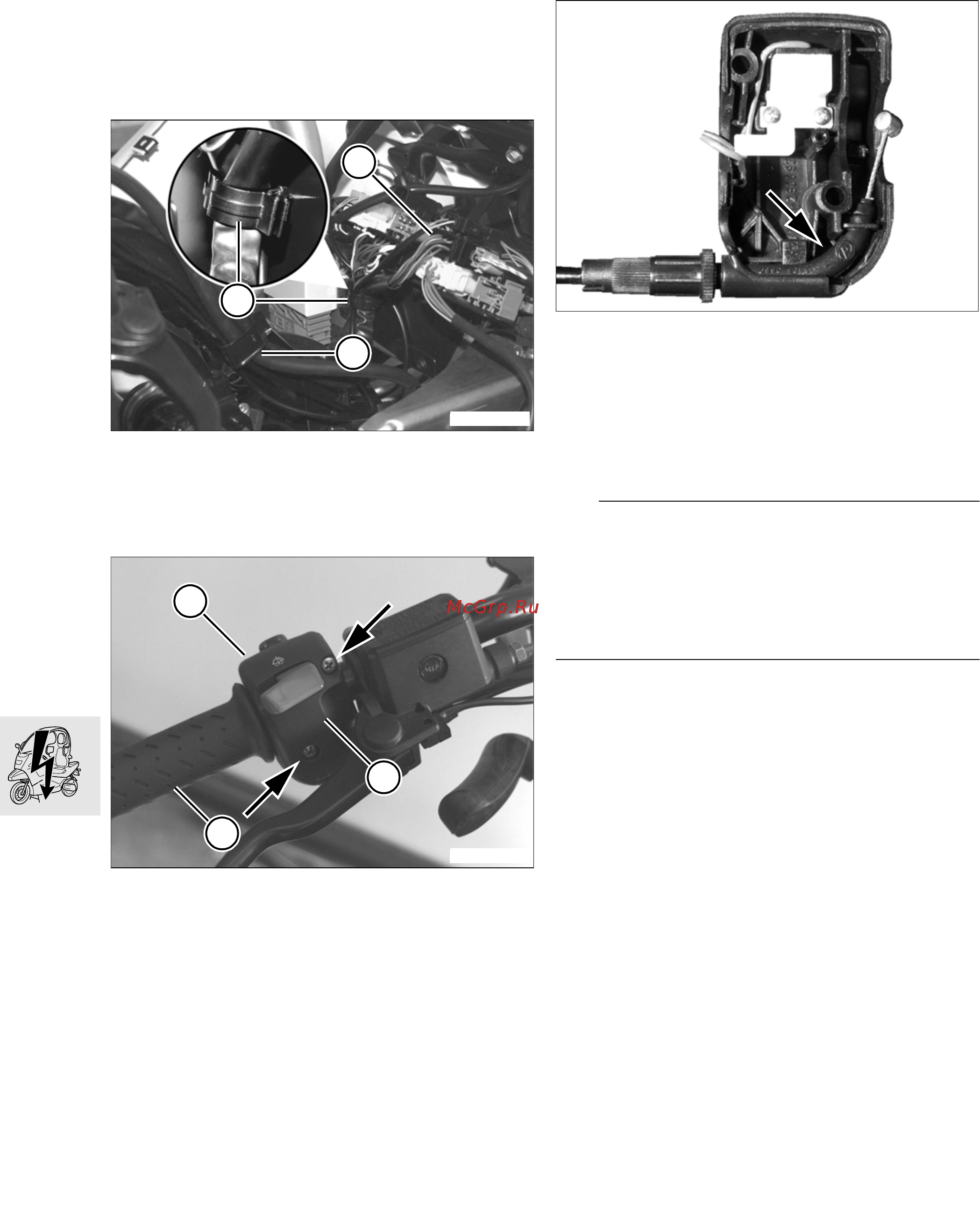

Disconnect plug (1)
•
Open cable clip (3)
•
Remove cable harness from bracket (2) on han-
dlebar
•
Remove fasteners (arrows)
•
Fold back rear section of combination switch (1)
•
Gently raise front section of handlebar fitting (2)
toward the front whilst simultaneously detaching
throttle twist grip (3) from combination switch
•
Slide throttle twist grip (3) to the right and detach
Bowden cable from cam plate
•
Remove throttle twistgrip
•
Apply gentle pressure to the handbrake lever
whilst simultaneously removing the front section
of the combination switch (2) from its retainer
•
Remove Bowden ccable (arrow) from front sec-
tion of the combination switch
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Ensure that Bowden cable and all lines are routed
correctly!
Make sure that the anti-twist lock is correctly seated
in the bore!
Ensure adequate clearance between combination
switch and brake fitting!
C1320030
1
3
2
C1320040
1
2
3
C1320051
