BMW C1 (2001) [168/458] Replacing vapour discharge hose
![BMW C1 (2001) [168/458] Replacing vapour discharge hose](/views2/1121050/page168/bga8.png)
17.12
17 12 200
Replacing vapour discharge
hose
– Remove front fairing panel
– Swing the headlight forward and down
– Remove right service cover
– Remove right running board
– Remove top and right tunnel panels
– Remove right side trim panel
– Remove knee pad
a
....................................................See Group 46
–Open the seat
– Remove the backrest
a
....................................................See Group 52
•

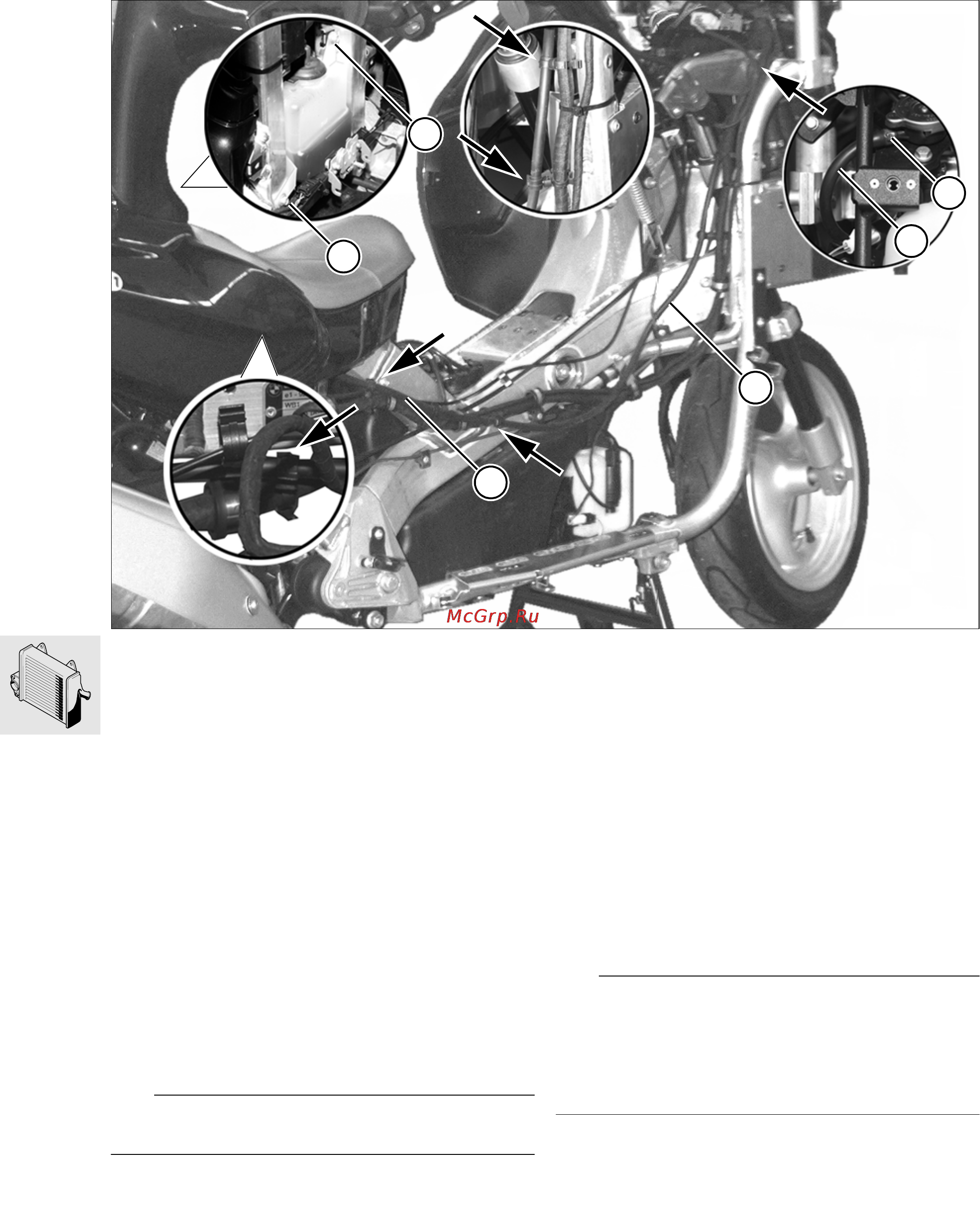

Disengage the vapour discharge hose (3) from its
fasteners (arrows)
•
Remove fasteners (1, 4) for expansion tank
•
Open hose clip (2) at refill reservoir and discon-
nect the vapour discharge hose
L
Note:
Coolant can leak from the coolant expansion tank!
If the expansion tank still contains coolant:
•
Clamp vapour discharge hose with
clamp,
BMW No. 13 3 010
•
Pull the vapour discharge hose out toward the
rear until the end is approximately half-way along
the vehicle
•
Open the hose and drain off the coolant from the
expansion tank
•
Lift the expansion tank complete with vapour dis-
charge hose clear of the vehicle
•
Open hose clip at expansion tank and discon-
nect the vapour discharge hose
When installing:
e
Attention:
Always make sure that hose clamps are correctly
positioned in order to ensure easy access whenever
necessary.
Make sure the hoses are routed well away from any
components that could cause rubbing and abrasion!
•
Installation is the reverse of the removal proce-
dure
•
Fill the expansion tank with coolant up to the cor-
rect level
•
After running the engine check the coolant level
and top up if necessary
C1170131
3
3
3
1
4
2
