51.4
51 47 000

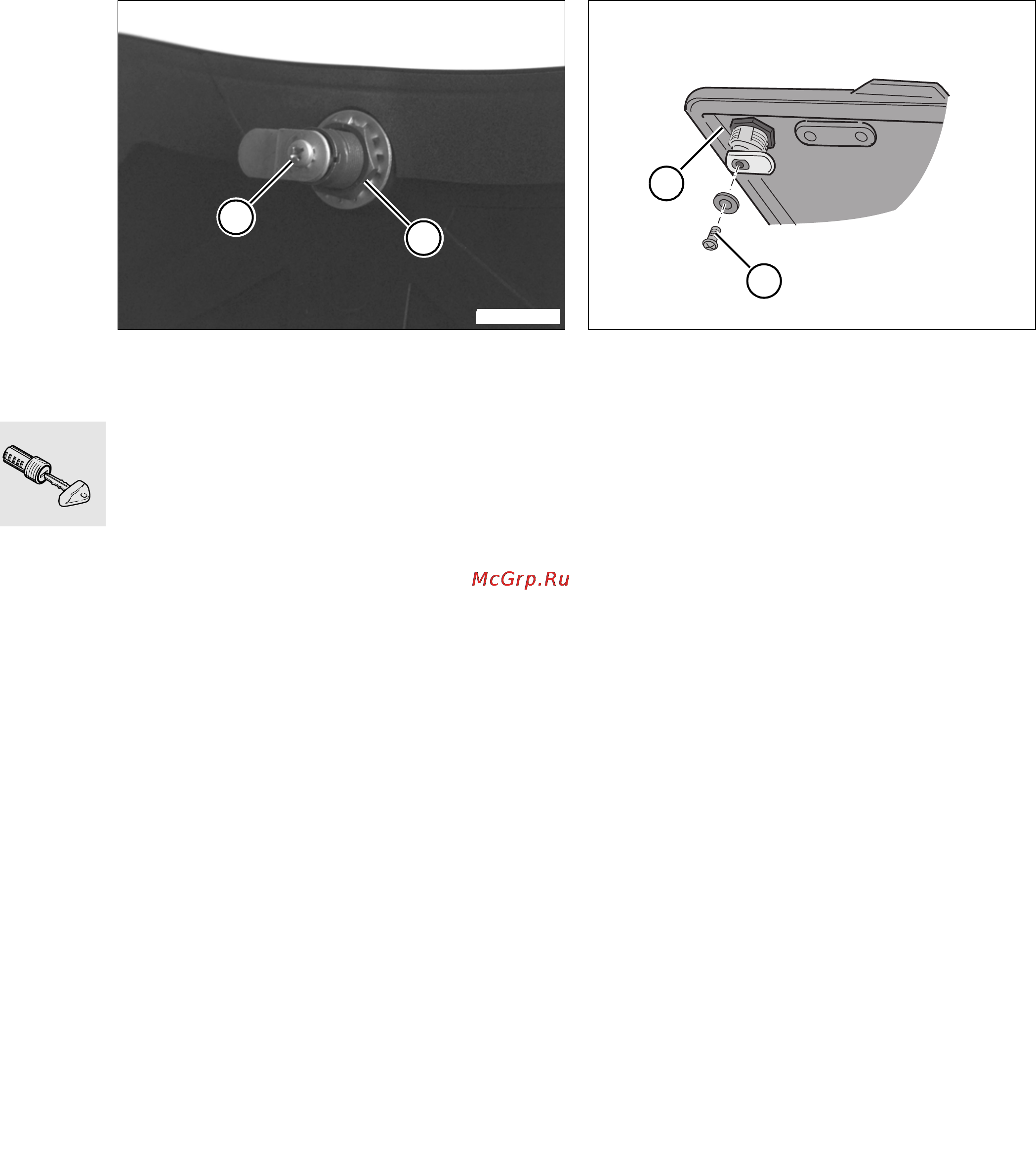

Rear storage compartment
lock barrel replacement
– Open the rear storage compartment
a
....................................................See Group 46
•
Release mount (1) remove lock bolt
•
Undo attachment (2) on lock barrel
•
Remove lock barrel
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Lock bolt mount ............................................. 3 Nm
Lock barrel mount .......................................... 7 Nm
Replacing lock barrel on large/small
storage compartment
– Open storage compartment
•
Release mount (2), remove lock bolt
•
Undo mount (1) for lock barrel
•
Remove lock barrel
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Lock bolt mount ............................................. 3 Nm
Lock barrel mount .......................................... 7 Nm
C1510060
2
1
C1510070
2
1
