46.27
46 63 040
Roof removal and installa-
tion
– Remove the backrest
– Remove head restraint
– Remove spoiler
– Remove inside trim on C-pillars
– Remove lightweight foam elements from left and
right C-pillars
– Remove lightweight foam element from cross
brace
•

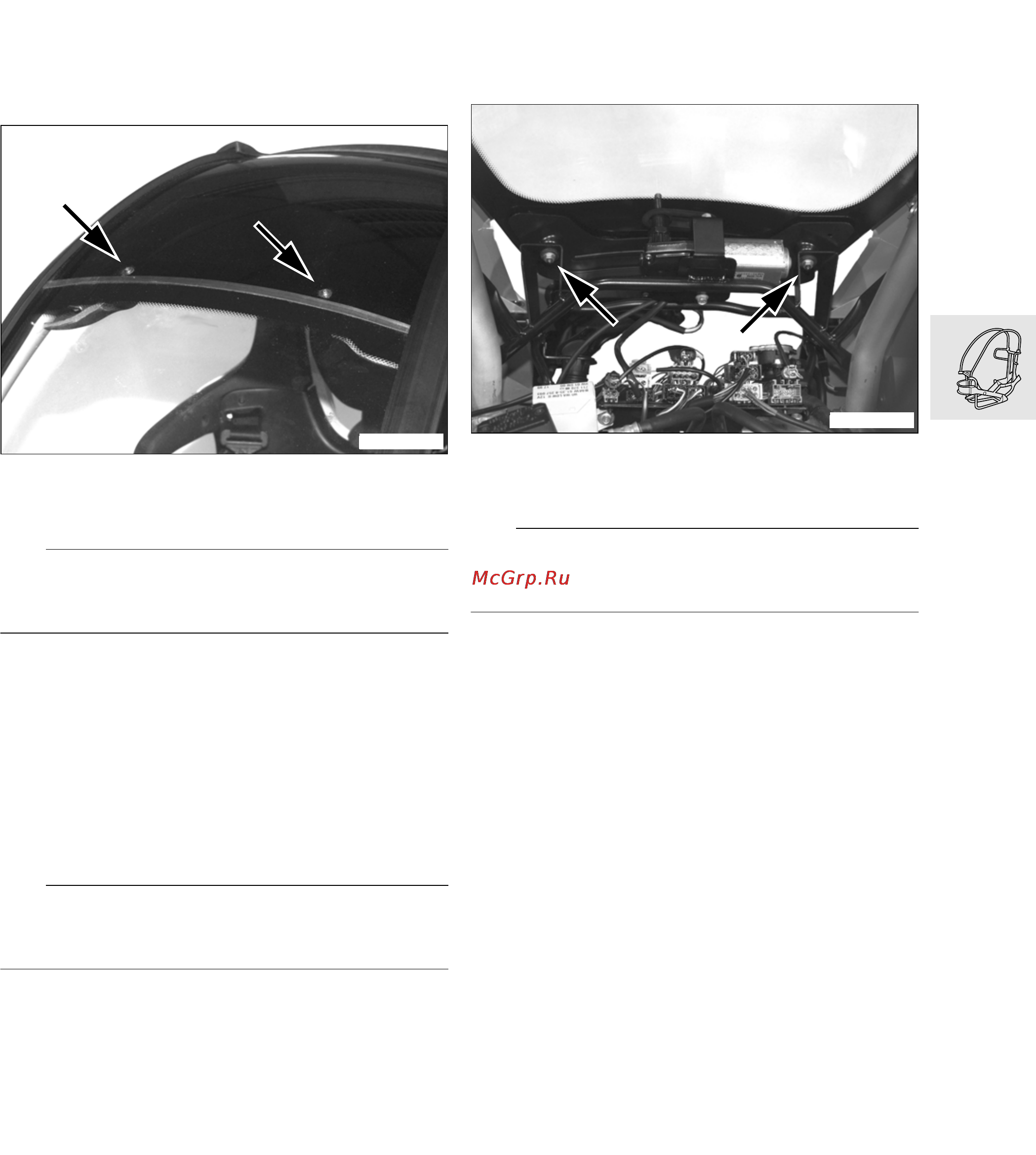

Remove fasteners (arrows) from top of wind-
screen
e
Attention:
Do not scratch the roof frame – mask it off if neces-
sary!
•
Starting at the rear and working forward to the
windscreen, pry left and right A-pillar trim out of
the retaining clips
•
Pull the roof to the rear until it is clear of the
A-pillar trim
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Make sure that the seal between front windscreen
and roof is correctly positioned!
X
Torque specification:
Windscreen attachment ................................. 5 Nm
51 31 001
Windscreen removal and
installation
– Remove front fairing panel
– Remove left and right mirrors
– Disengage side trim panels from front frame at
left and right
– Remove wiper arms (
a
61.22)
– Remove instrument trim
– Remove roof
•
Remove fasteners (arrows) from bottom of wind-
screen
e
Attention:
Do not scratch the roof frame – mask it off if neces-
sary!
•
Starting at the top and working down, pry A-pillar
trim out of the retaining clips
•
Disengage tube for windscreen washer fluid
•
Lift windscreen up to remove
C1460330
C1460340
