17.17
17 11 007
Removing and installing
radiator with fan
Removing and installing front frame
with radiator
– Remove front fairing panel
– Swing the headlight forward and down
– Remove sill panel centre section and left and
right sills
– Remove left and right side trim panels
– Remove front crash element
a
....................................................See Group 46
– Draining coolant (
a
17.14)
– Disconnect filler hose for washer fluid from reser-
voir
a
....................................................See Group 61
•

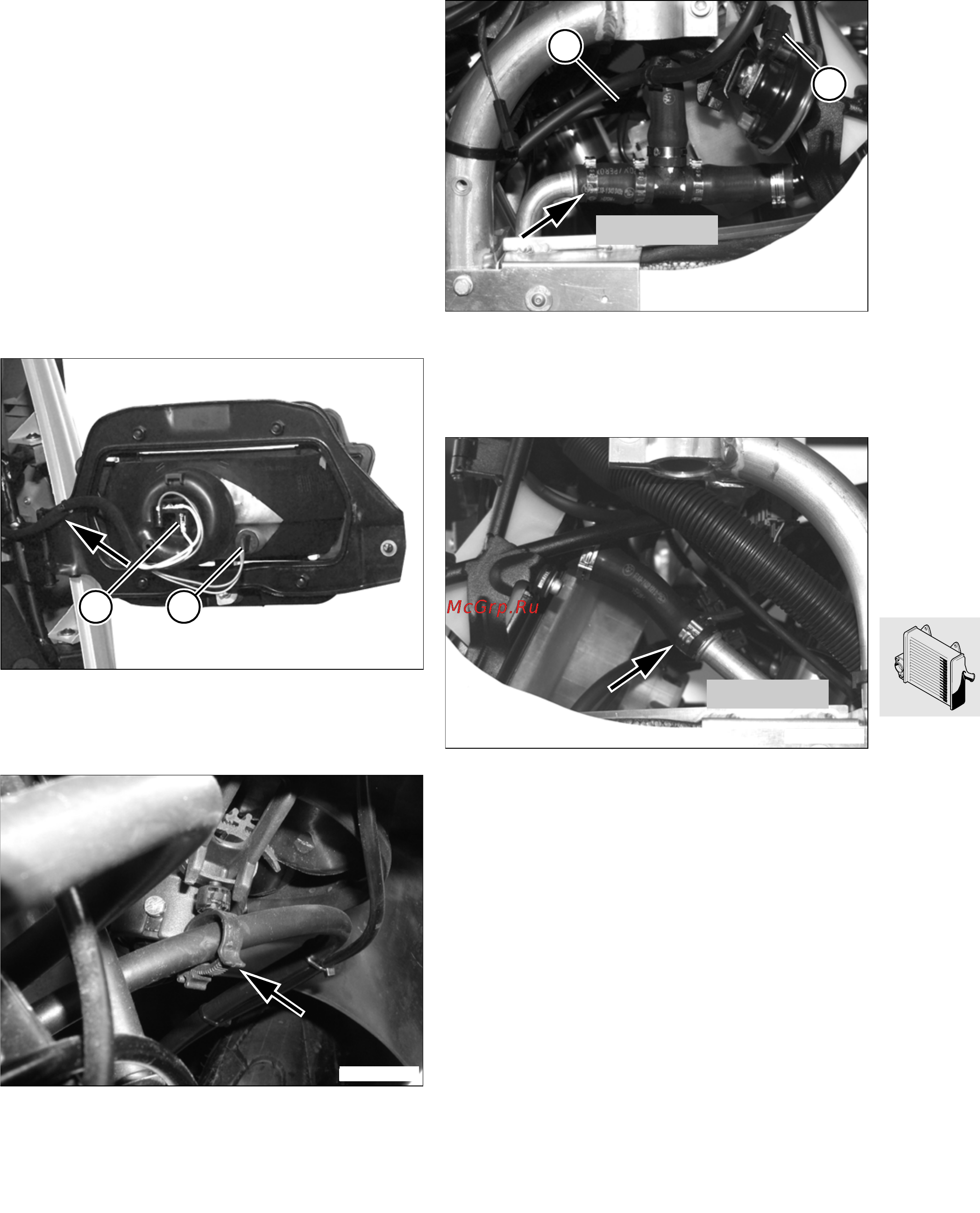

Disconnect plug (1) from headlight
•
Remove parking light (2) from its socket
•
Open cable ties (arrows)
•
Open cable clip (arrow)
•
Disconnect plug (1) from fan motor
•
Disconnect plug (2) from horn
•
Release right hose clamp (arrow) with pliers,
BMW No. 17 5 500
•
Release left hose clamp (arrow) with pliers,
BMW No. 17 5 500
C1170200
2
1
C1340490
C1170210
17 5 500
2
1
C1170060
17 5 500
