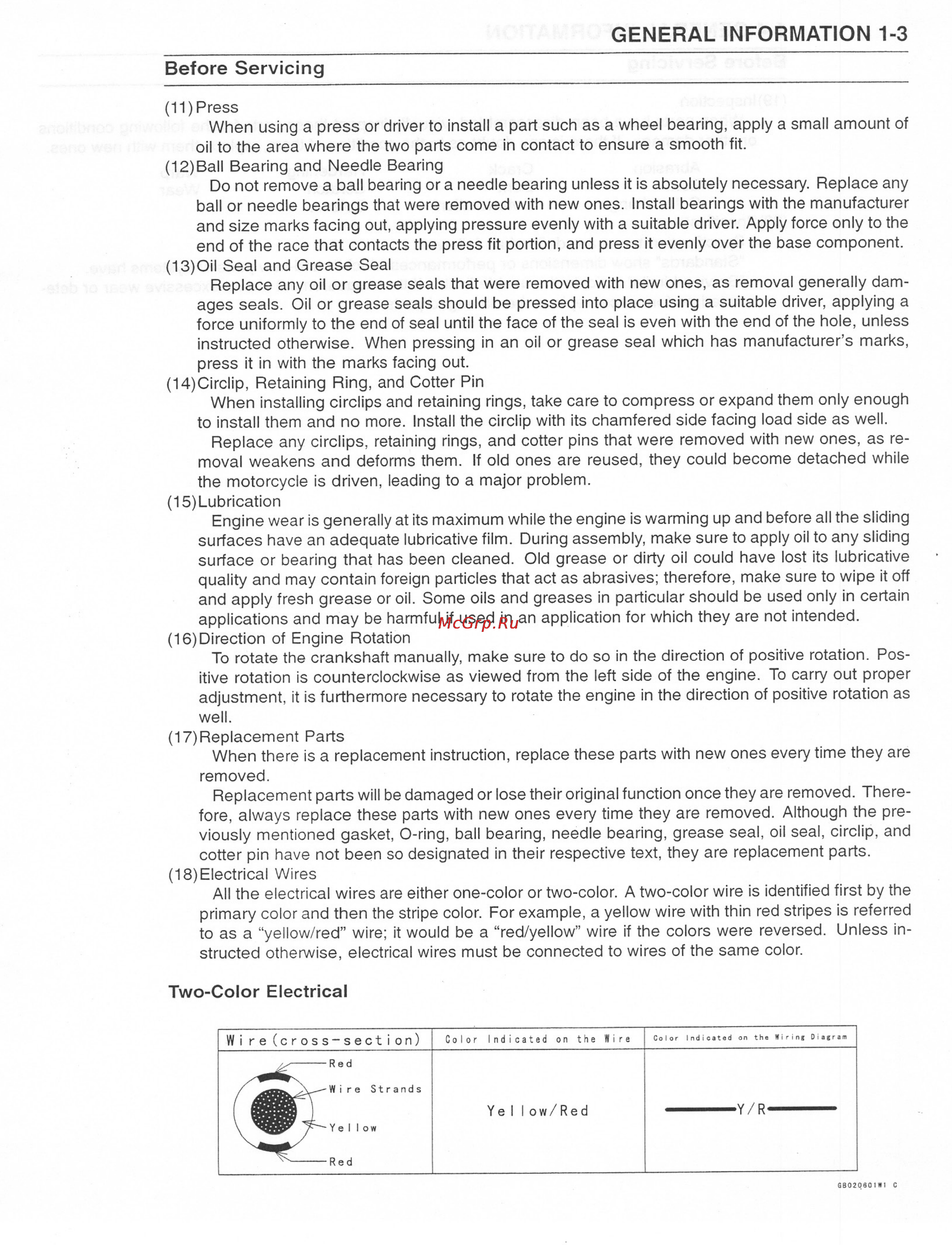

GENERAL INFORMATION 1 3 Before Servicing 11 Press When using a press or driver to install a part such as a wheel bearing apply a small amount of oil to the area where the two parts come in contact to ensure a smooth fit 12 Ball Bearing and Needle Bearing Do not remove a ball bearing or a needle bearing unless it is absolutely necessary Replace any ball or needle bearings that were removed with new ones Install bearings with the manufacturer and size marks facing out applying pressure evenly with a suitable driver Apply force only to the end of the race that contacts the press fit portion and press it evenly over the base component 13 Oil Seal and Grease Seal Replace any oil or grease seals that were removed with new ones as removal generally dam ages seals Oil or grease seals should be pressed into place using a suitable driver applying a force uniformly to the end of seal until the face of the seal is even with the end of the hole unless instructed otherwise When pressing in an oil or grease seal which has manufacturer s marks press it in with the marks facing out 14 Circlip Retaining Ring and Cotter Pin When installing circlips and retaining rings take care to compress or expand them only enough to install them and no more Install the circlip with its chamfered side facing load side as well Replace any circlips retaining rings and cotter pins that were removed with new ones as re moval weakens and deforms them If old ones are reused they could become detached while the motorcycle is driven leading to a major problem 15 Lubrication Engine wear is generally at its maximum while the engine is warming up and before all the sliding surfaces have an adequate lubricative film During assembly make sure to apply oil to any sliding surface or bearing that has been cleaned Old grease or dirty oil could have lost its lubricative quality and may contain foreign particles that act as abrasives therefore make sure to wipe it off and apply fresh grease or oil Some oils and greases in particular should be used only in certain applications and may be harmful if used in an application for which they are not intended 16 Direction of Engine Rotation To rotate the crankshaft manually make sure to do so in the direction of positive rotation Pos itive rotation is counterclockwise as viewed from the left side of the engine To carry out proper adjustment it Is furthermore necessary to rotate the engine in the direction of positive rotation as well 17 Replacement Parts When there is a replacement instruction replace these parts with new ones every time they are removed Replacement parts will be damaged or lose their original function once they are removed There fore always replace these parts with new ones every time they are removed Although the pre viously mentioned gasket O ring ball bearing needle bearing grease seal oil seal circlip and cotter pin have not been so designated in their respective text they are replacement parts 18 Electrical Wires All the electrical wires are either one color or two color A two color wire is identified first by the primary color and then the stripe color For example a yellow wire with thin red stripes is referred to as a yellow red wire it would be a red yellow wire if the colors were reversed Unless in structed otherwise electrical wires must be connected to wires of the same color Two Color Electrical W i re cross section Color Indicated on the Wire Color Indicated on the Wiring Diagram Red xjjHBK Wire Strands Ye I Iow R e d Y R Y e I low http manuals magnamaniac com Red GgozoBom c
