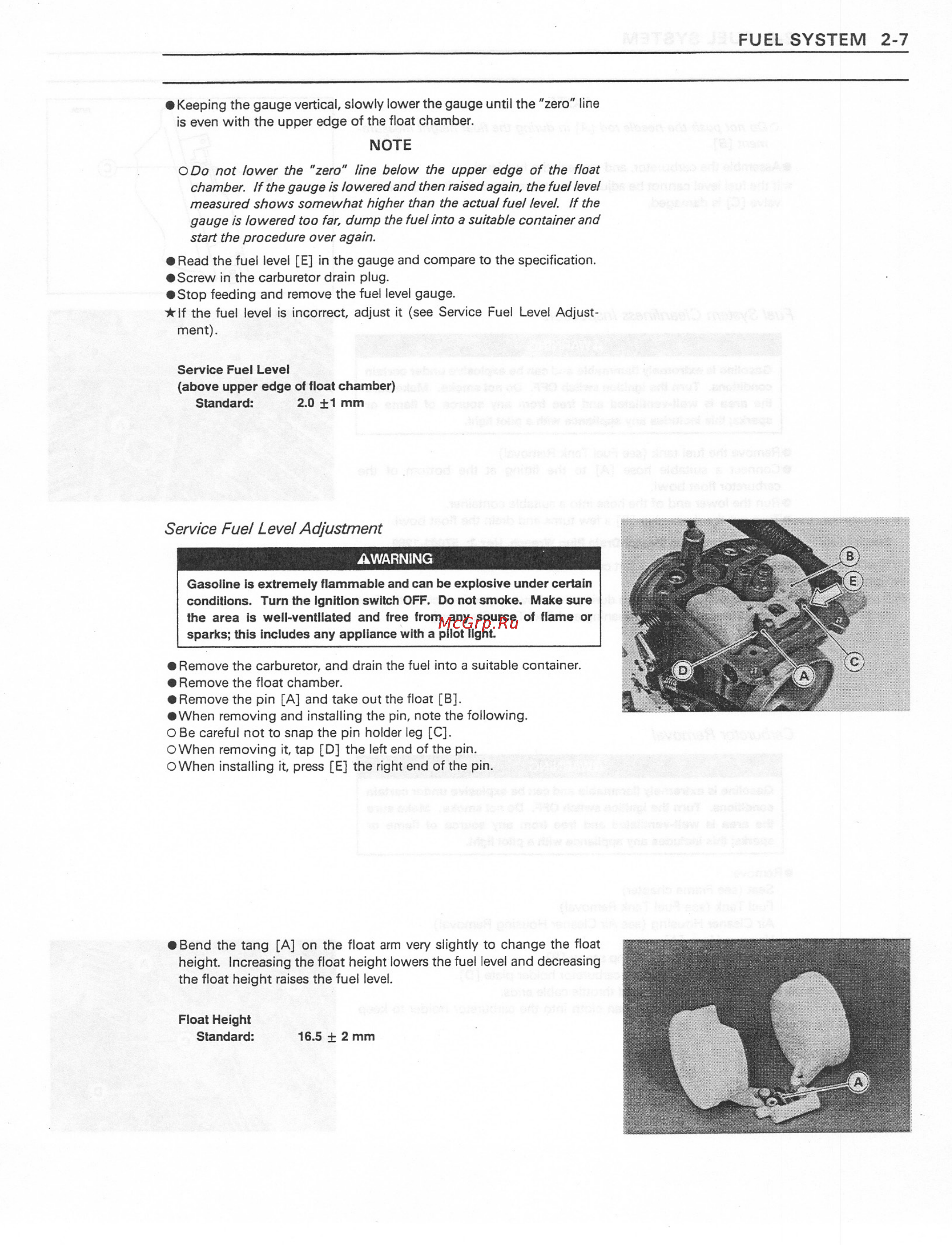

FUEL SYSTEM 2 7 Keeping the gauge vertical slowly lower the gauge until the zero line is even with the upper edge of the float chamber NOTE ODo not lower the zero line below the upper edge of the float chamber If the gauge is lowered and then raised again thefuel level measured shows somewhat higher than the actual fuel level If the gauge is lowered too far dump the fuel into a suitable container and start the procedure over again Read the fuel level E in the gauge and compare to the specification Screw in the carburetor drain plug Stop feeding and remove the fuel level gauge If the fuel level is incorrect adjust it see Service Fuel Level Adjust ment Service Fuel Level above upper edge of float chamber Standard 2 0 1 mm Service Fuel Level Adjustment A WARNING Gasoline is extremely flammable and can be explosive under certain conditions Turn the Ignition switch OFF Do not smoke Make sure the area is well ventilated and free from any source of flame or sparks this includes any appliance with a pilot light Remove the carburetor and drain the fuei into a suitable container Remove the float chamber Remove the pin A and take out the float B When removing and installing the pin note the following OBe careful not to snap the pin holder leg C O When removing it tap D the left end of the pin OWhen installing it press E the right end of the pin Bend the tang A on the float arm very slightly to change the float height Increasing the float height lowers the fuel level and decreasing the float height raises the fuel level Float Height Standard 16 5 2 mm http manuals magnamaniac com http manuals magnamaniac com
