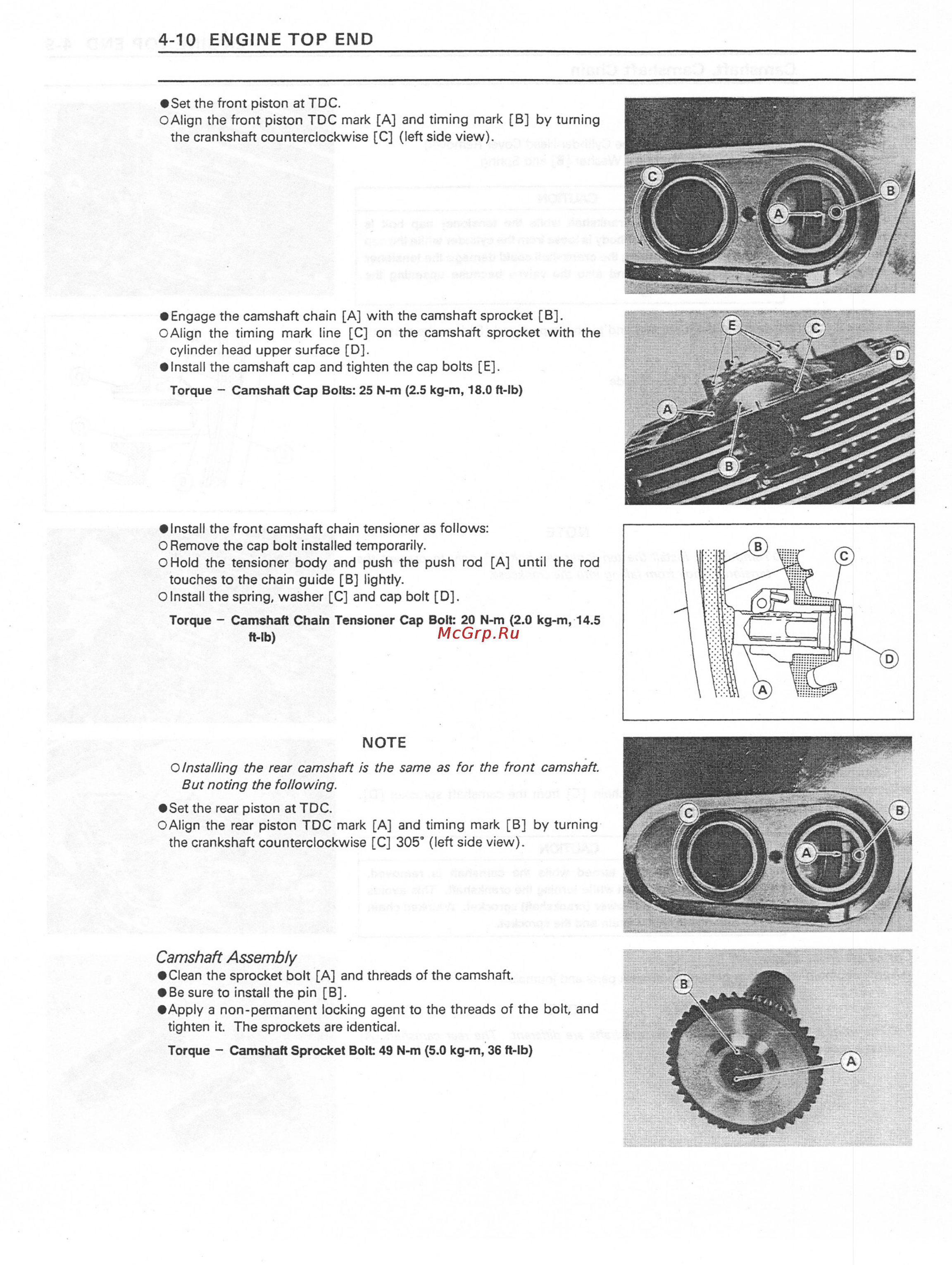

4 10 ENGINE TOP END Set the front piston at TDC OAlign the front piston TDC mark A and timing mark B by turning the crankshaft counterclockwise C left side view Engage the camshaft chain A with the camshaft sprocket B OAlign the timing mark line C on the camshaft sprocket with the cylinder head upper surface D Install the camshaft cap and tighten the cap bolts E Torque Camshaft Cap Bolts 25 N m 2 5 kg m 18 0 ft lb Install the front camshaft chain tensioner as follows O Remove the cap bolt installed temporarily OHold the tensioner body and push the push rod A untii the rod touches to the chain guide B lightly O Install the spring washer C and cap bolt D Torque Camshaft Chain Tensioner Cap Bolt 20 N m 2 0 kg m 14 5 ft lb NOTE O Installing the rear camshaft is the same as for the front camshaft But noting the following Set the rear piston at TDC OAlign the rear piston TDC mark A and timing mark B by turning the crankshaft counterclockwise C 305 left side view Camshaft Assembly Clean the sprocket bolt A and threads of the camshaft Be sure to install the pin B Apply a non permanent locking agent to the threads of the bolt and tighten it The sprockets are identical Torque Camshaft Sprocket Bolt 49 N m 5 0 kg m 36 ft lb http manuals magnamaniac com http manuals magnamaniac com
