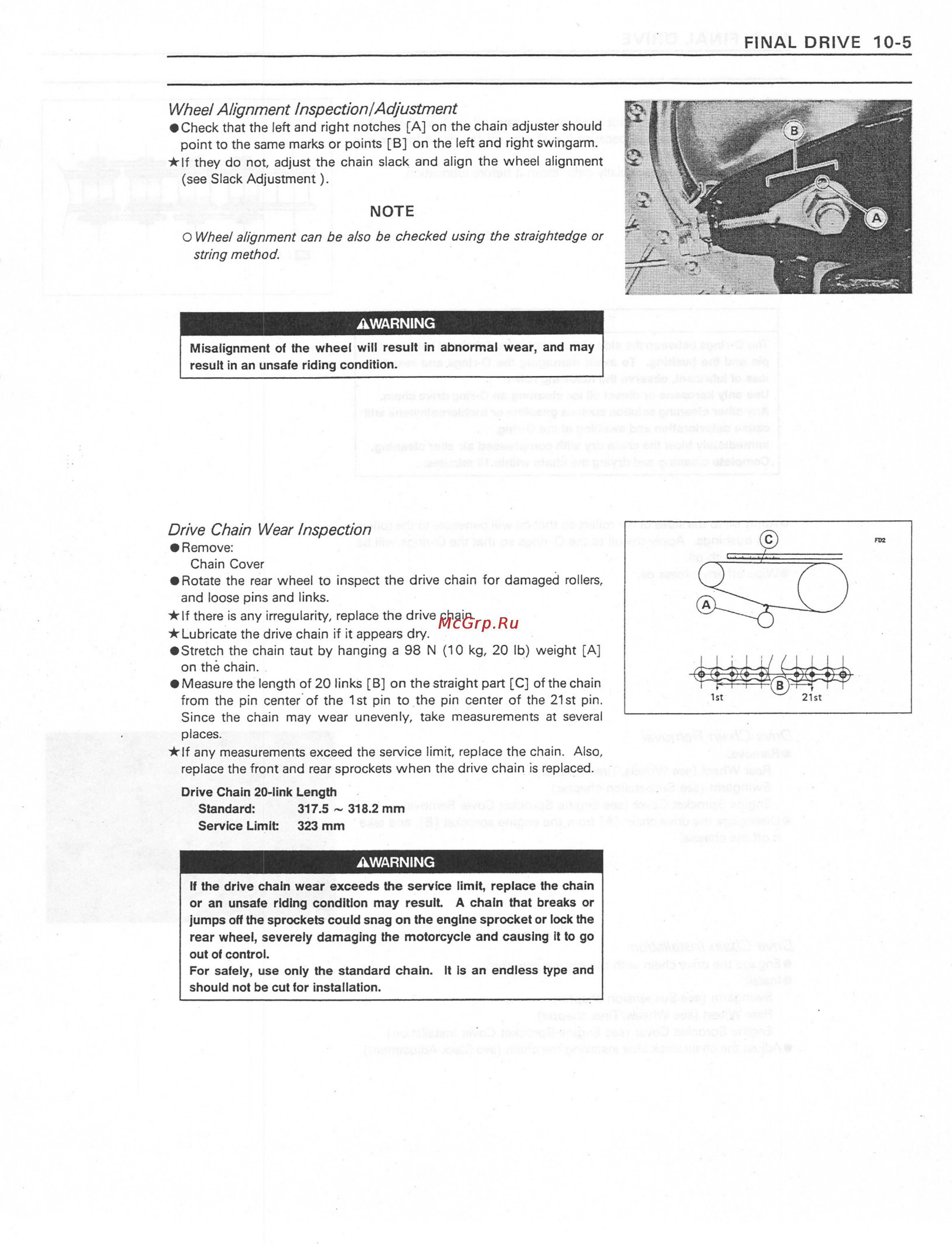

FINAL DRIVE 10 5 Wheel Alignment Inspection Adjustment Check that the left and right notches A on the chain adjuster should point to the same marks or points B on the left and right swingarm If they do not adjust the chain slack and align the wheel alignment see Slack Adjustment NOTE O Wheel alignment can be also be checked using the straightedge or string method AWARNING Misalignment of the wheel will result in abnormal wear and may result in an unsafe riding condition Drive Chain Wear Inspection Remove Chain Cover Rotate the rear wheel to inspect the drive chain for damaged rollers and loose pins and links If there is any irregularity replace the drive chain Lubricate the drive chain if it appears dry Stretch the chain taut by hanging a 98 N 10 kg 20 lb weight A on thé chain Measure the length of 20 inks B on the straight part C of the chain from the pin center of the 1st pin to the pin center of the 21st pin Since the chain may wear unevenly take measurements at several places if any measurements exceed the service limit replace the chain Also replace the front and rear sprockets when the drive chain is replaced rive Chain 20 link Length Standard 317 5 31S 2 mm Service Limit 323 mm AWARNING If the drive chain wear exceeds the service limit replace the chain or an unsafe riding condition may result A chain that breaks or jumps off the sprockets could snag on the engine sprocket or lock the rear wheel severely damaging the motorcycle and causing It to go out of control For safely use only the standard chain It Is an endless type and should not be cut for installation http manuals magnamaniac com http manuals magnamaniac com
