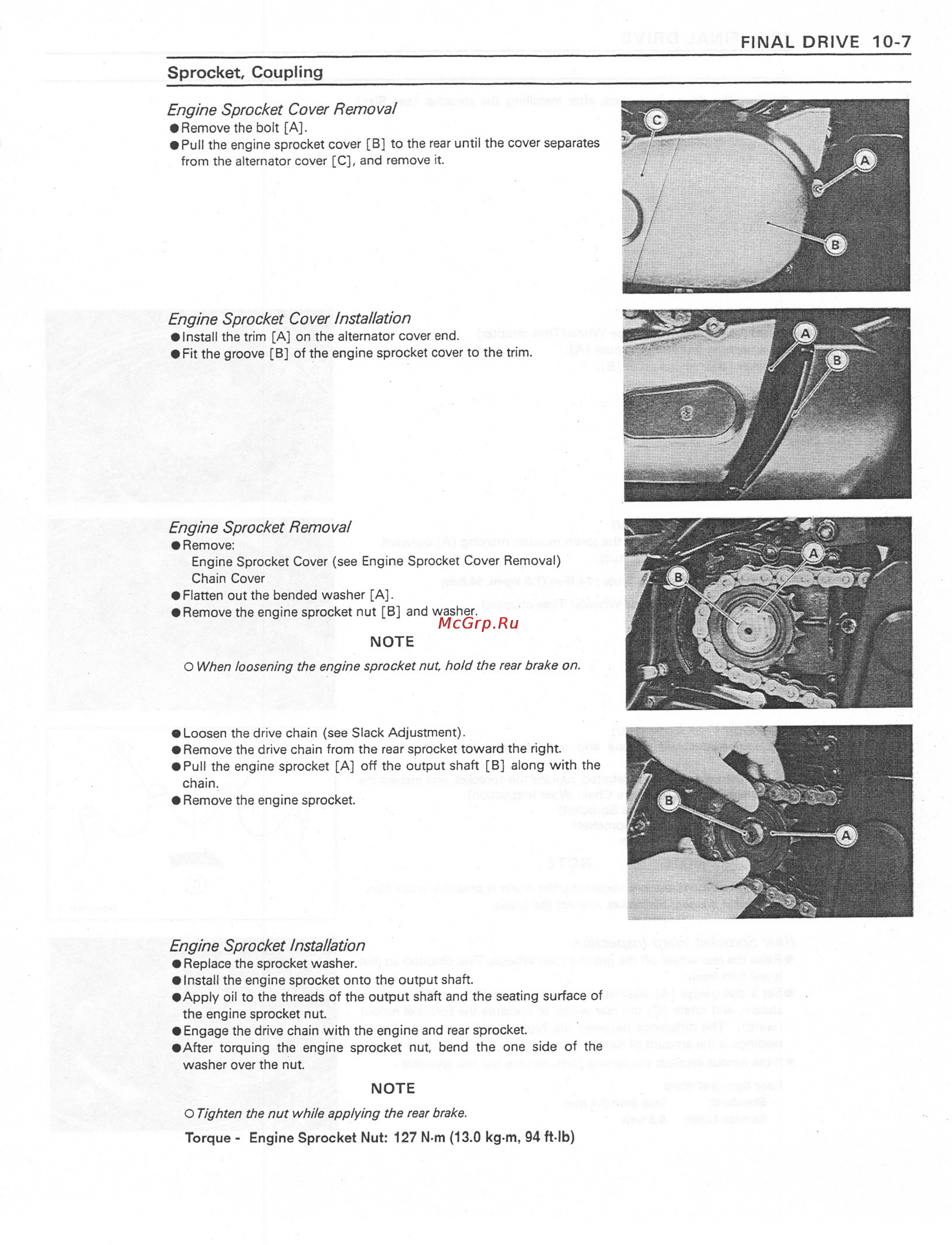

FINAL DRIVE 10 7 Sprocket Coupling Engine Sprocket Cover Removal Remove the bolt A Full the engine sprocket cover B to the rear until the cover separates from the alternator cover C and remove it Engine Sprocket Cover Installation Install the trim A on the alternator cover end Fit the groove B of the engine sprocket cover to the trim Engine Sprocket Removal Remove Engine Sprocket Cover see Engine Sprocket Cover Removal Chain Cover Flatten out the bended washer A Remove the engine sprocket nut B and washer NOTE O When loosening the engine sprocket nut hold the rear brake on Loosen the drive chain see Slack Adjustment Remove the drive chain from the rear sprocket toward the right Pull the engine sprocket A off the output shaft Bl along with the chain Remove the engine sprocket Engine Sprocket Installation Replace the sprocket washer Install the engine sprocket onto the output shaft Apply oil to the threads of the output shaft and the seating surface of the engine sprocket nut Engage the drive chain with the engine and rear sprocket After torquing the engine sprocket nut bend the one side of the washer over the nut NOTE O Tighten the nut while applying the rear brake Torque Engine Sprocket Nut 127 N m 13 0 kg m 94 ft lb http manuals magnamaniac com http manuals magnamaniac com
