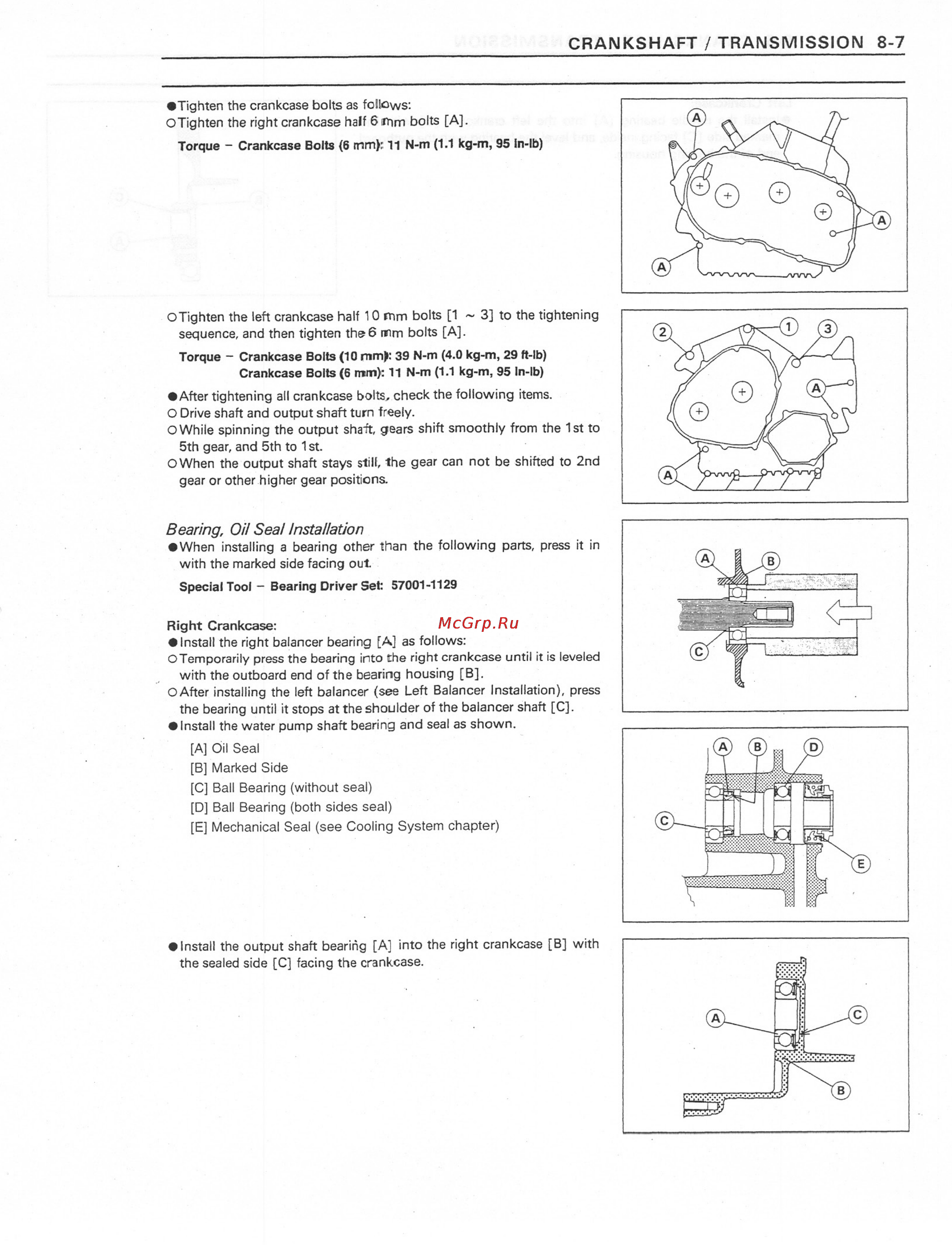

CRANKSHAFT TRANSMISSION 8 7 Tighten the crankcase bolts as follows OTighten the right crankcase half 6 mm bolts A Torque Crankcase Bolts 6 mm 11 N m 1 1 kg m 95 In lb OTighten the left crankcase half 10 mm bolts 1 3 to the tightening sequence and then tighten the6 mm bolts A Torque Crankcase Bolts 10 n m K 39 N m 4 0 kg m 29 ft lb Crankcase Bolts 6 mm 11 N m 1 1 kg m 95 In lb After tightening all crankcase bolts check the following items O Drive shaft and output shaft turn freely O While spinning the output shaft gears shift smoothly from the 1st to 5th gear and 5th to 1 st OWhen the output shaft stays still the gear can not be shifted to 2nd gear or other higher gear positions Bearing OH Sea Installation When installing a bearing other than the following parts press it in with the marked side facing out Special Tool Bearing Driver Set 57001 1129 Right Crankcase Install the right balancer bearing A as follows OTemporarily press the bearing into the right crankcase until it is leveled with the outboard end of the bearing housing B OAfter installing the left balancer see Left Balancer Installation press the bearing until it stops at the shoulder of the balancer shaft C Install the water pump shaft bearing and seal as shown A Oil Seal B Marked Side C Ball Bearing without seal D Ball Bearing both sides seal E Mechanical Seal see Cooling System chapter Install the output shaft bearing A into the right crankcase B with the sealed side C facing the crankcase http manuals magnamaniac com http manuals magnamaniac com
