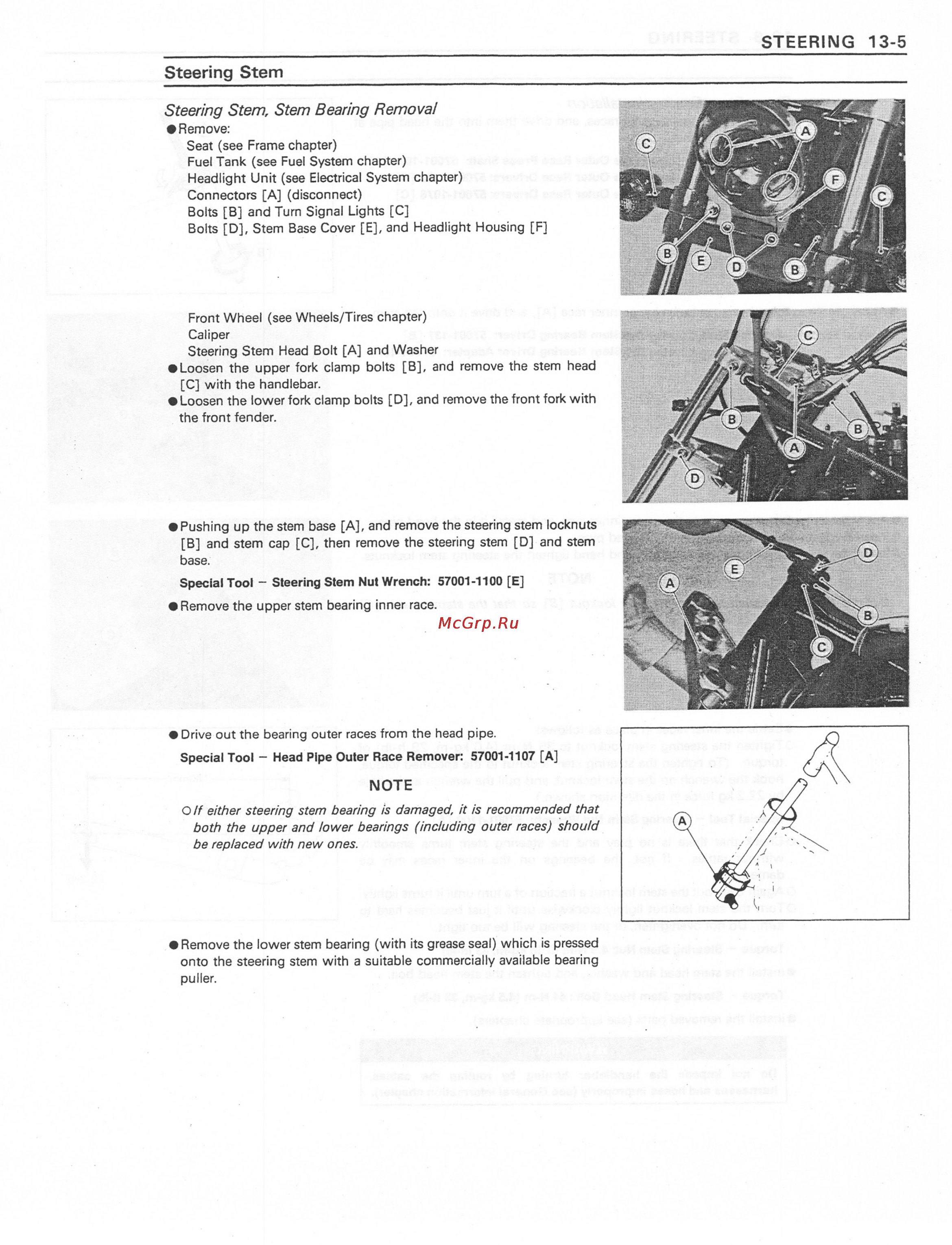

STEERING 13 5 Steering Stem Steering Stem Stem Bearing Removal Remove Seat see Frame chapter Fuel Tank see Fuel System chapter Headlight Unit see Electrical System chapter Connectors A disconnect Bolts B and Turn Signal Lights C Bolts D Stem Base Cover E and Headlight Housing F Front Wheel see Wheeis Tires chapter Caliper Steering Stem Head Bolt A and Washer Loosen the upper fork clamp bolts B and remove the stem head C with the handlebar Loosen the lower fork clamp bolts D and remove the front fork with the front fender Pushing up the stem base A and remove the steering stem locknuts B and stem cap C then remove the steering stem D and stem base Special Tool Steering Stern Nut Wrench 57001 1100 E Remove the upper stem bearing inner race Drive out the bearing outer races from the head pipe Special Tool Head Pipe Outer Race Remover 57001 1107 A NOTE O If either steering stem bearing is damaged it is recommended that both the upper and tower bearings including outer races should be replaced with new ones Remove the lower stem bearing with its grsaseseal which is pressed onto the steering stem with a suitable commercially available bearing puller http manuals magnamaniac com http manuals magnamaniac com
