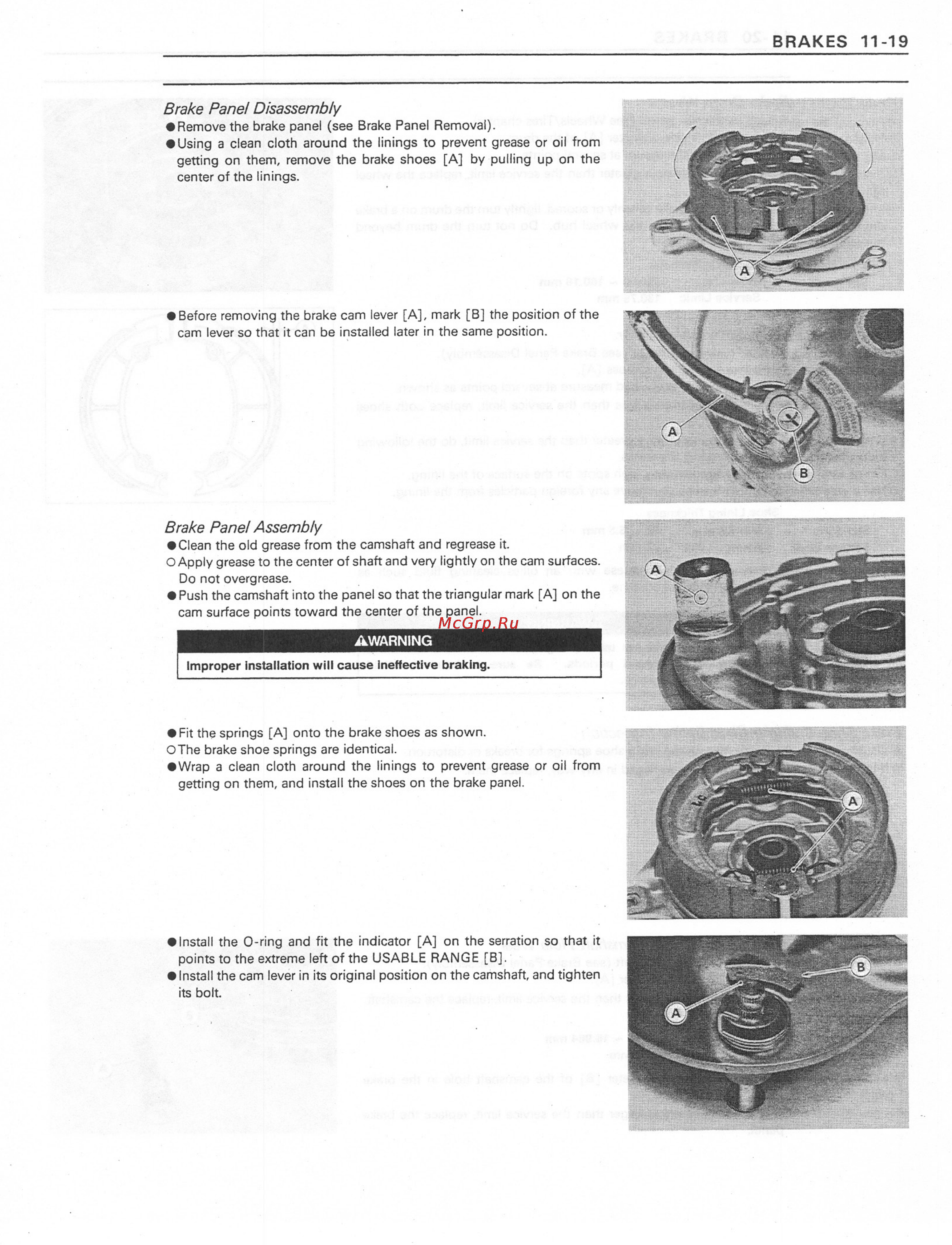

BRAKES 11 19 Brake Pane Disassembly Remove the brake panel see Brake Panel Removal Using a clean cloth around the linings to prevent grease or oii from getting on them remove the brake shoes A by pulling up on the center of the linings Before removing the brake cam lever A mark B the position of the cam lever so that it can be installed later in the same position Brake Pane Assembly Clean the old grease from the camshaft and regrease it O Apply grease to the center of shaft and very tightly on the cam surfaces Do not overgrease Push the camshaft into the panel so thatthe triangular mark A on the cam surface points toward the center of the panel AWARNING Improper Installation will cause Ineffective braking Fit the springs A onto the brake shoes as shown OThe brake shoe springs are identical Wrap a clean cloth around the linings to prevent grease or oil from getting on them and install the shoes on the brake panel Install the O ring and fit the indicator A on the serration so that it points to the extreme left of the USABLE RANGE B Install the cam lever in its original position on the camshaft and tighten its bolt http manuals magnamaniac com http manuals magnamaniac com
