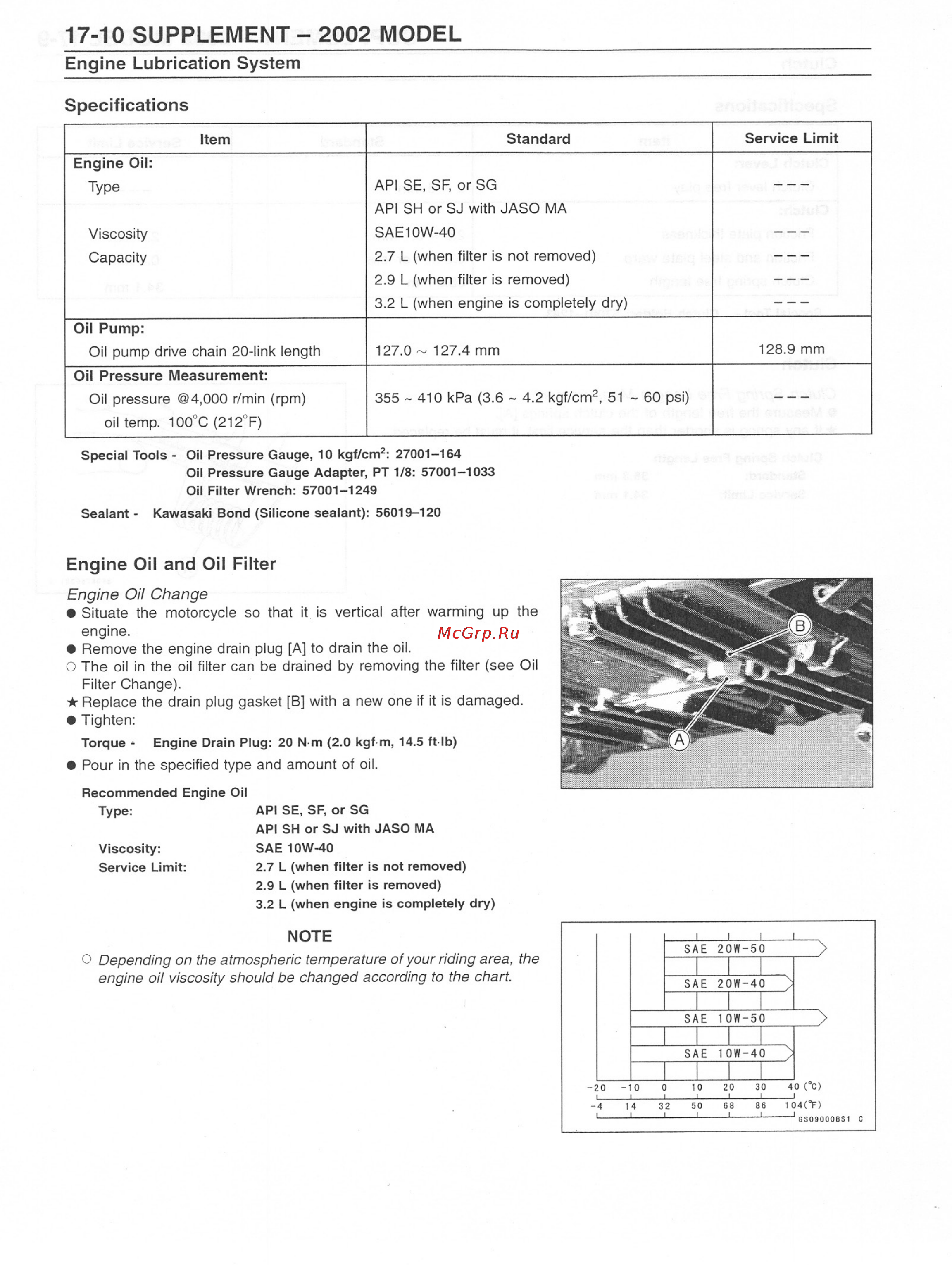

17 10 SUPPLEMENT 2002 MODEL Engine Lubrication System Specifications Item Standard Service Limit Engine Oil API SE SF or SG Type API SH or SJ with JASO MA Viscosity SAE10W 40 Capacity 2 7 L when filter is not removed 2 9 L when filter is removed 3 2 L when engine is completely dry Oil Pump Oil pump drive chain 20 ink length 127 0 127 4 mm 128 9 mm Oil Pressure Measurement Oil pressure 4 000 r min rpm 355 410 kPa 3 6 4 2 kgf cm2 51 60 psi oil temp 100 C 212 F Special Tools Oil Pressure Gauge 10 kgf cm2 27001 164 Oil Pressure Gauge Adapter PT 1 8 57001 1033 Oil Filter Wrench 57001 1249 Sealant Kawasaki Bond Silicone sealant 56019 120 Engine Oil and Oil Filter Engine Oil Change Situate the motorcycle so that it is vertical after warming up the engine Remove the engine drain plug A to drain the oil O The oil in the oil filter can be drained by removing the filter see Oil Filter Change Replace the drain plug gasket B with a new one if it is damaged Tighten Torque Engine Drain Plug 20 N m 2 0 kgfm 14 5 ft lb Pour in the specified type and amount of oil Recommended Engine Oil Type API SE SF or SG API SH or SJ with JASO MA Viscosity SAE 10W 40 Service Limit 2 7 L when filter is not removed 2 9 L when filter is removed 3 2 L when engine is completely dry NOTE O Depending on the atmospheric temperature of your riding area the engine oil viscosity should be changed according to the chart http manuals magnamaniac com http manuals magnamaniac com
