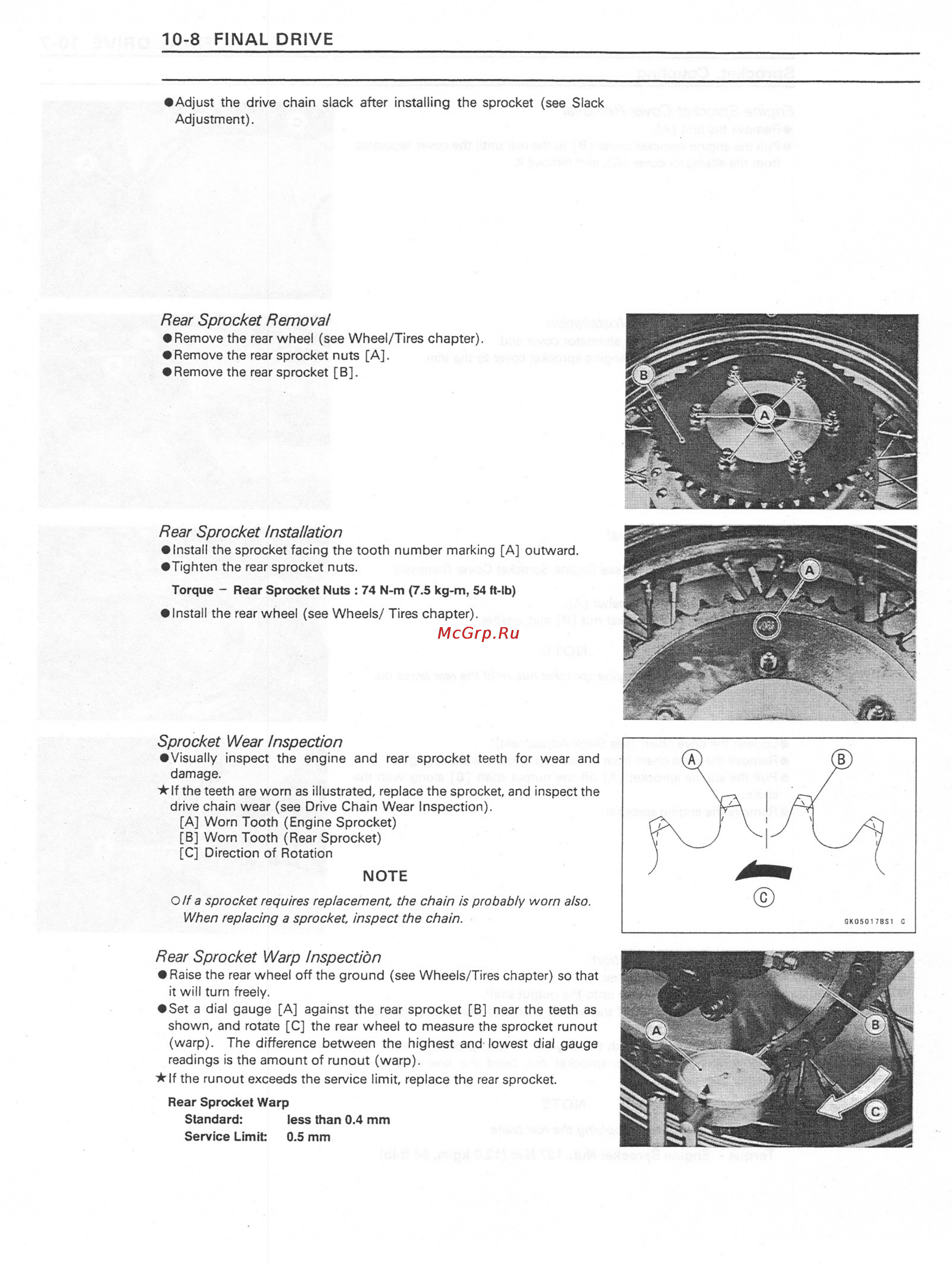

10 8 FINAL DRIVE Adjust the drive chain slack after installing the sprocket see Slack Adjustment Rear Sprocket Removal Remove the rear wheel see Wheel Tires chapter Remove the rear sprocket nuts A Remove the rear sprocket BJ Rear Sprocket Installation install the sprocket facing the tooth number marking A outward Tighten the rear sprocket nuts Torque Rear Sprocket Nuts 74 N m 7 5 kg m 54 tt lb Install the rear wheel see Wheels Tires chapter Sprocket Wear Inspection Visually inspect the engine and rear sprocket teeth for wear and damage If the teeth are worn as illustrated replace the sprocket and inspect the drive chain wear see Drive Chain Wear inspection A Worn Tooth Engine Sprocket B Worn Tooth Rear Sprocket C Direction of Rotation NOTE Olf a sprocket requires replacement the chain is probably worn also When replacing a sprocket inspect the chain Rear Sprocket Warp Inspection Raise the rear wheel off the ground see Wheels Tires chapter so that it will turn freely Set a dial gauge A against the rear sprocket 8 near the teeth as shown and rotate C the rear wheel to measure the sprocket runout warp The difference between the highest and lowest dial gauge readings is the amount of runout warp if the runout exceeds the service limit replace the rear sprocket Rear Sprocket Warp Standard less than 0 4 mm Service Limit 0 5 mm http manuals magnamaniac com http manuals magnamaniac com
