Assembly
STEP 1

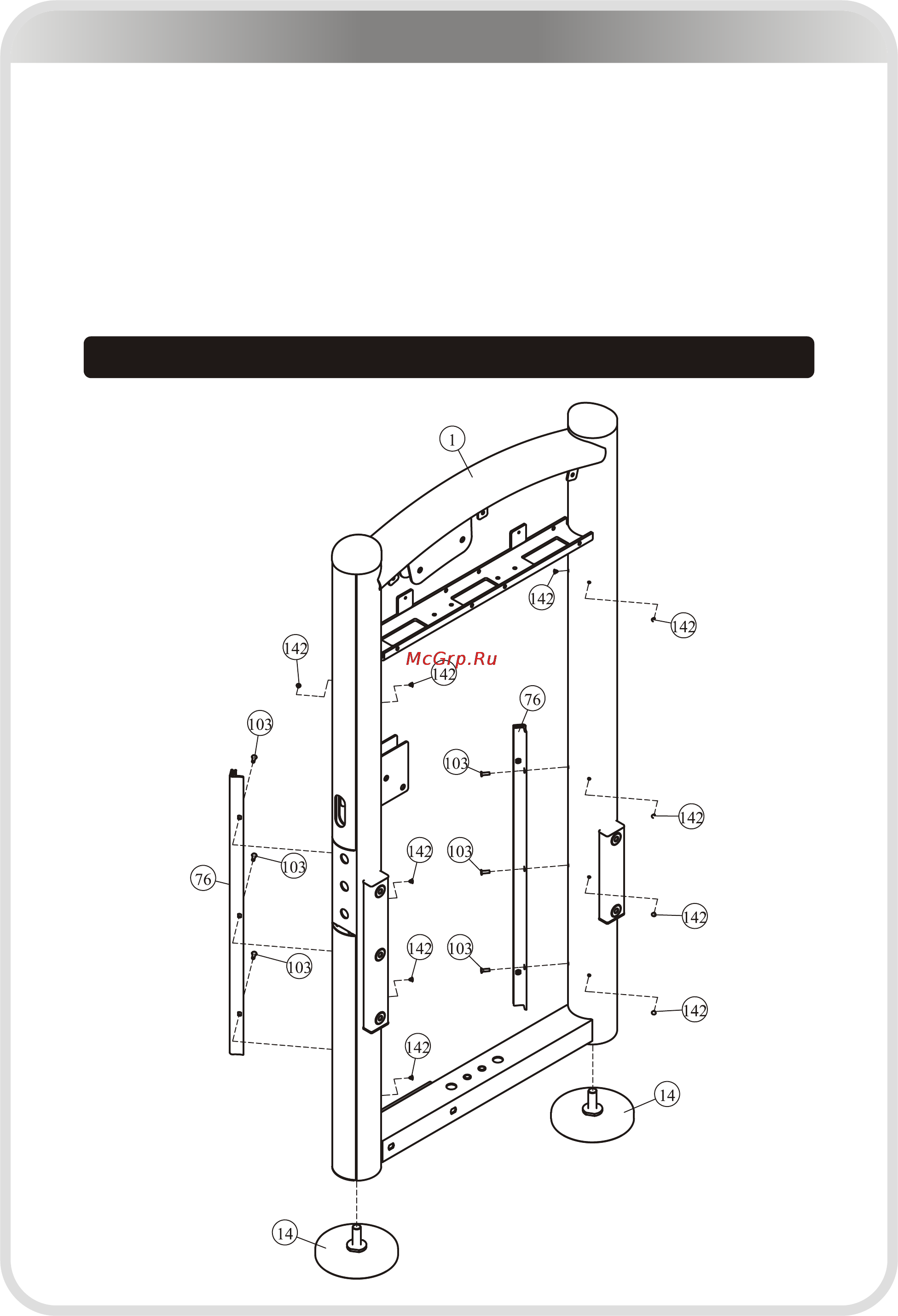

1. Attach two Adjustable Foot Plate (#14) to the Weight Stack Frame (#1).
2. Attach two Short Shroud Retainer Plate (#76) to the Weight Stack Frame (#1)
using:
six M5*16 Flat Philips Screw (#103)
3. Attach ten Φ8.1*7 Button (#142) to the Weight Stack Frame (#1).
Note: Wrench Tighten Screws.
Here is the assembly instruction for Shor t Shroud !
