─ 16 ─
AssemblyAssembly

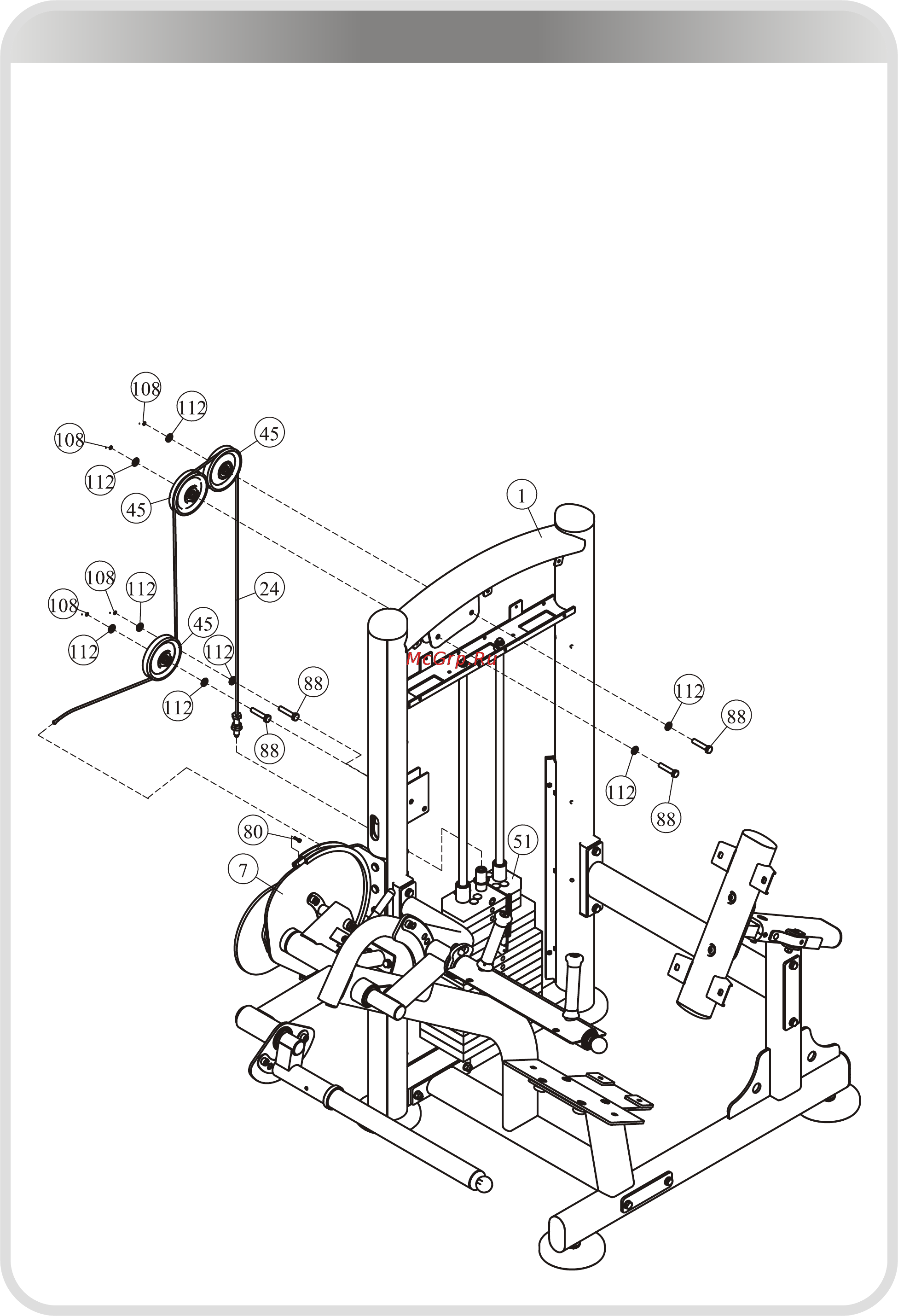

STEP 6
1. Attach the Cable (#24) to the Top Plate (#51).
2. Attach three 4.5" Pulley (#45) to the Weight Stack Frame (#1) using:
four M10*50 HHB (#88) eight Φ11*Φ20*2 Flat Washer (#112)
four M10 Nylon Lock Nut (#108)
3. Attach the Cable (#24) to the Cam (#7) using:
one M4*15 SHCS (#80)
Note: Wrench Tighten Βolts and Nylon Lock nuts.
