─ 18 ─

AssemblyAssembly

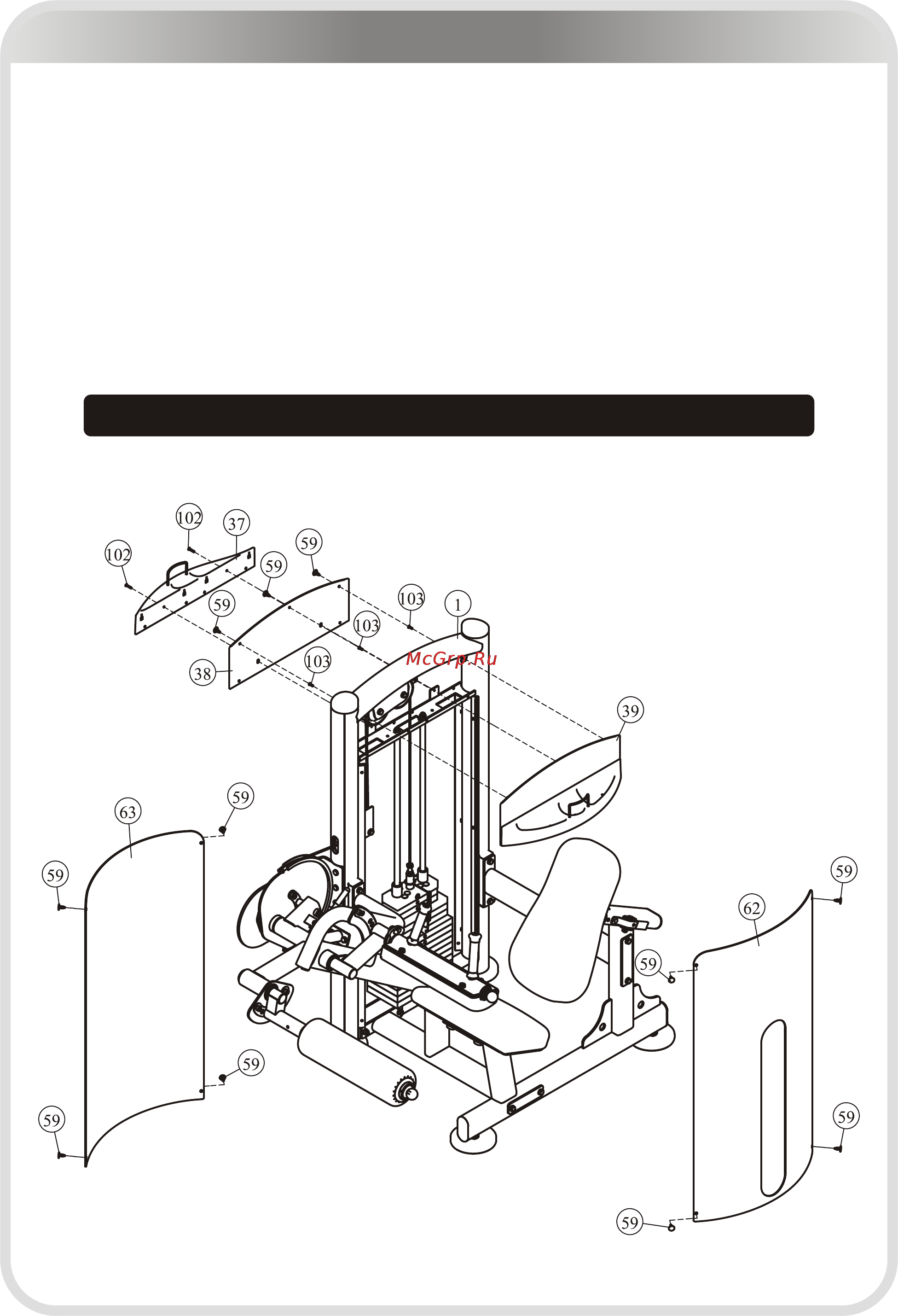

STEP 8

1. Attach the Front Shroud (#62) & Rear Shroud (#63) to the Weight Stack

Frame (#1) using:

eight Button (#59)

2. Attach the Top Front Shroud (#39) to the Weight Stack Frame (#1) using:

three M5*16 Flat Philips Screw (#103)

3. Attach the Top Rear Shroud A (#38) & the Rear Support (#37) to the Weight

Stack Frame (#1) using:

three Button (#59) two M5*25 Flat Philips Screw (#102)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Long Shroud !
