─ 15 ─

AssemblyAssembly

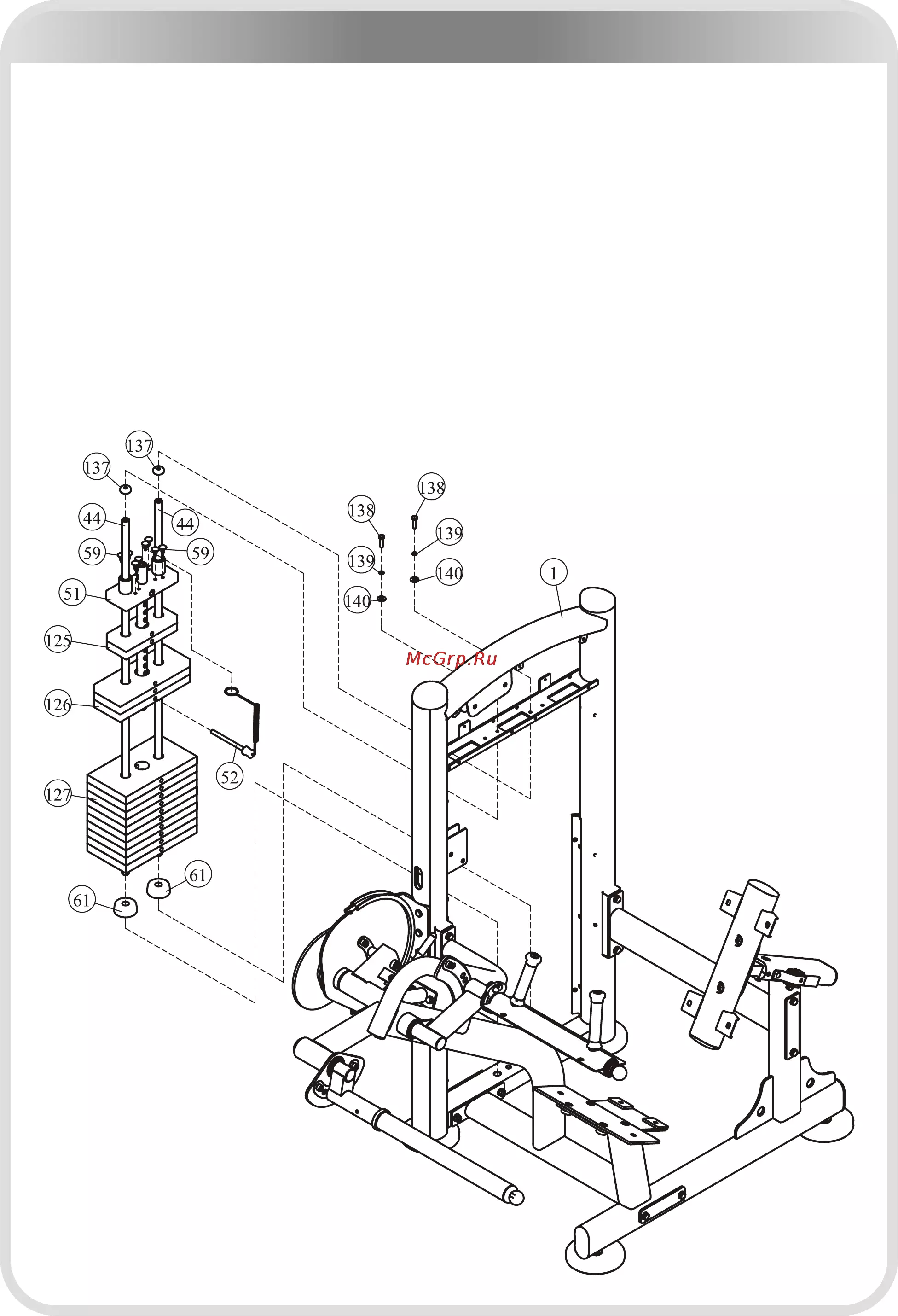

STEP 5

1. Attach:

two Guide Rod (#44) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#61)

ten Weight Plate 15LBS (#127) three Weight Plate 10LBS (#126)

two Weight Plate 5LBS (#125) one Top Plate (#51)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#138) two Φ8 Spring Washers (#139)

two Φ9*Φ22*1.6 Flat Washer (#140) two Φ29*Φ19*10 Rubber Plug (#137)

2. Attach the Selector Pin W/Coil (#52) & eight Button (#59) to the Top Plate (#51).

Note: Wrench Tighten Βolts and Nylon Lock nuts.
