─ 14 ─

AssemblyAssembly

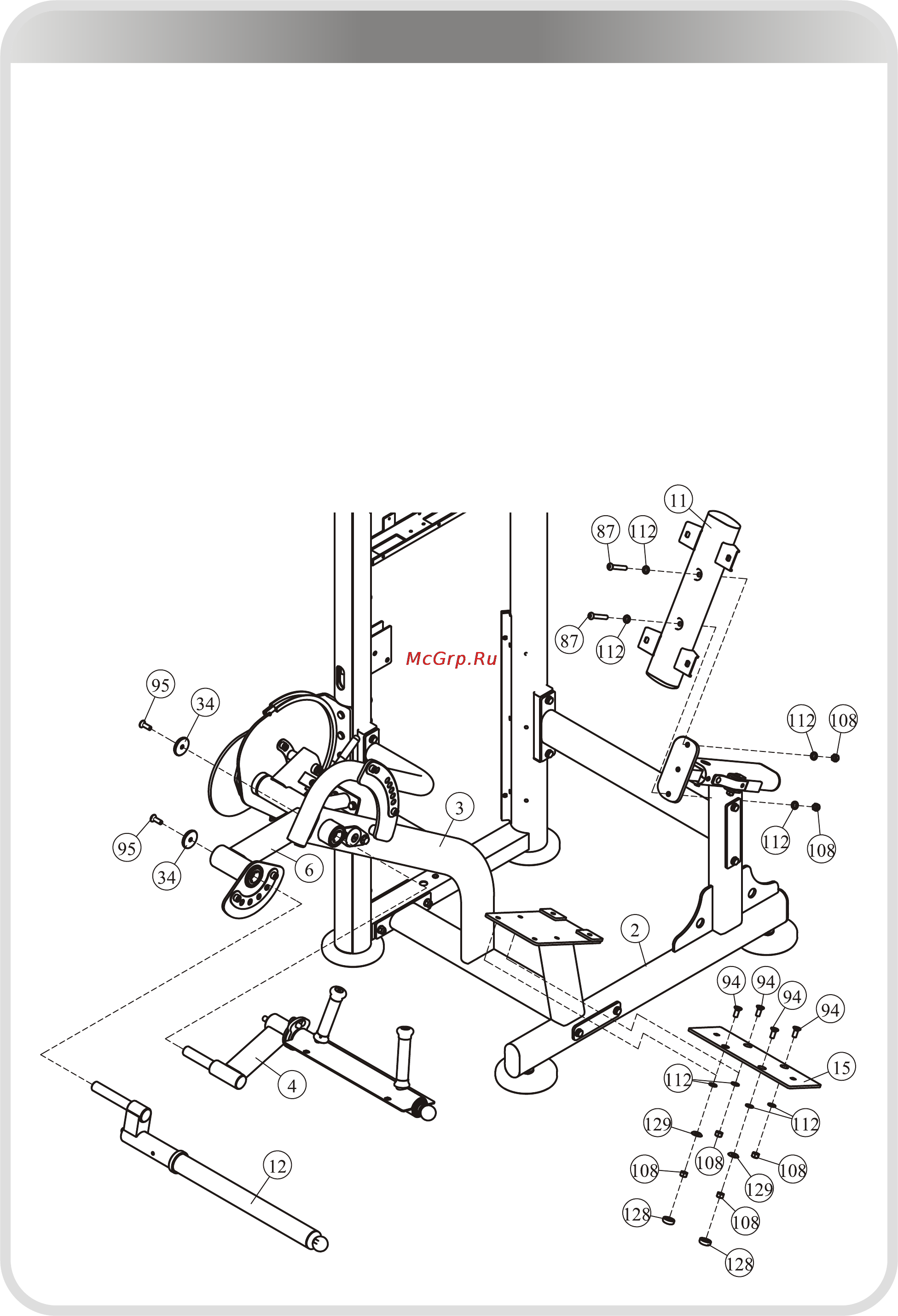

STEP 4

1. Attach the Seat Pad Plate (#15) to the Main Frame (#2) using:

four M10*25 FHCS (#94) four Φ11*Φ20*2 Flat Washer (#112)

four M10 Nylon Lock Nut (#108) two Φ27.6*Φ12.8*3.5 Washer(#129)

two Φ30 Plastic Cap (#128)

2. Attach the Back Pad Support (#11) to the Main Frame (#2) using:

two M10*65 BHCS (#87) four Φ11*Φ20*2 Flat Washer (#112)

two M10 Nylon Lock Nut (#108)

3. Attach the Movement Arm (#4) to the Bottom Cross Brace (#3) using:

one Aluminum End Cap (#34) one M10*30 FHCS (#95)

4. Attach the Swing Tube (#12) to the Pivot Arm (#6) using:

one Aluminum End Cap (#34) one M10*30 FHCS (#95)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
