─ 13 ─

Assembly

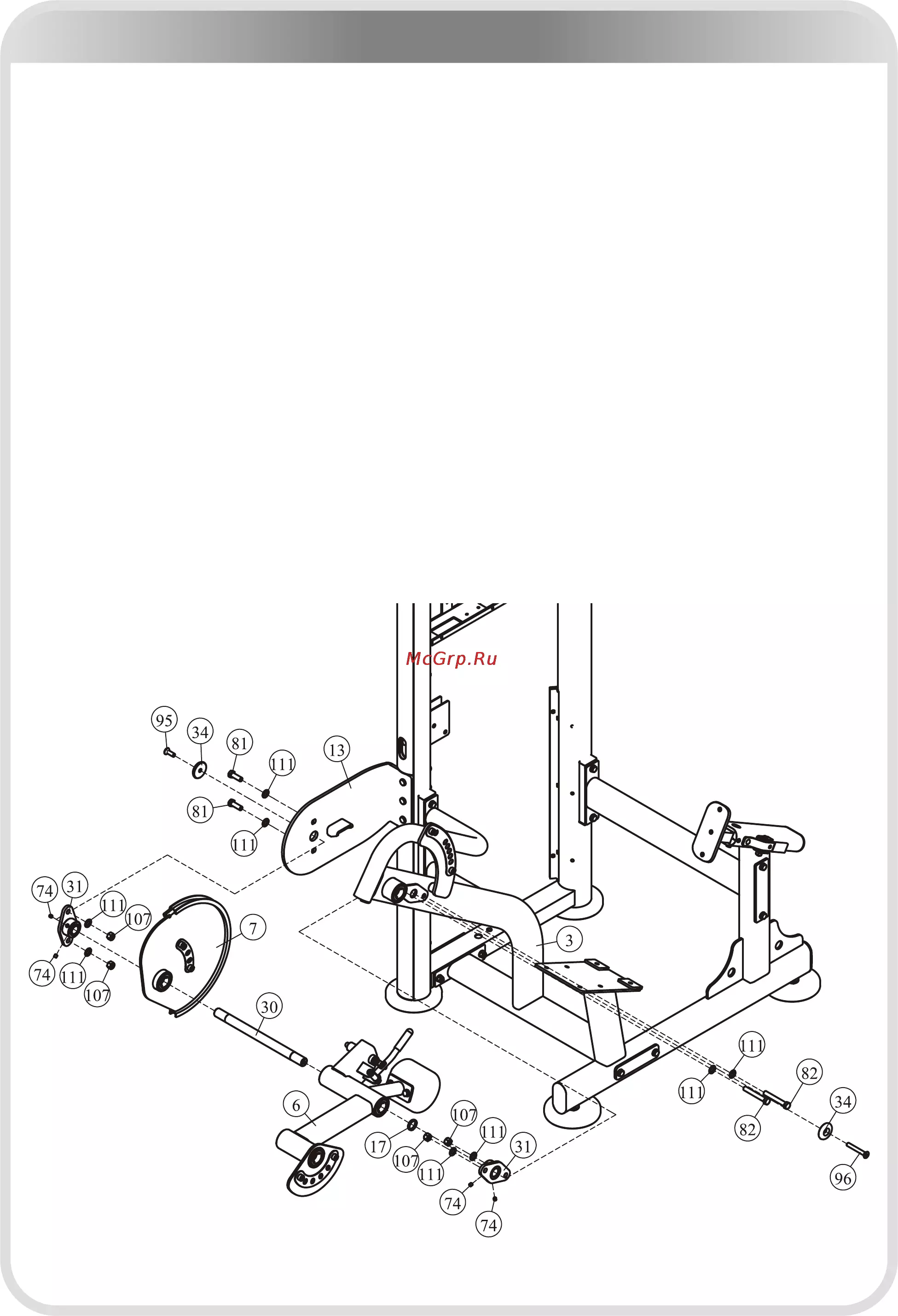

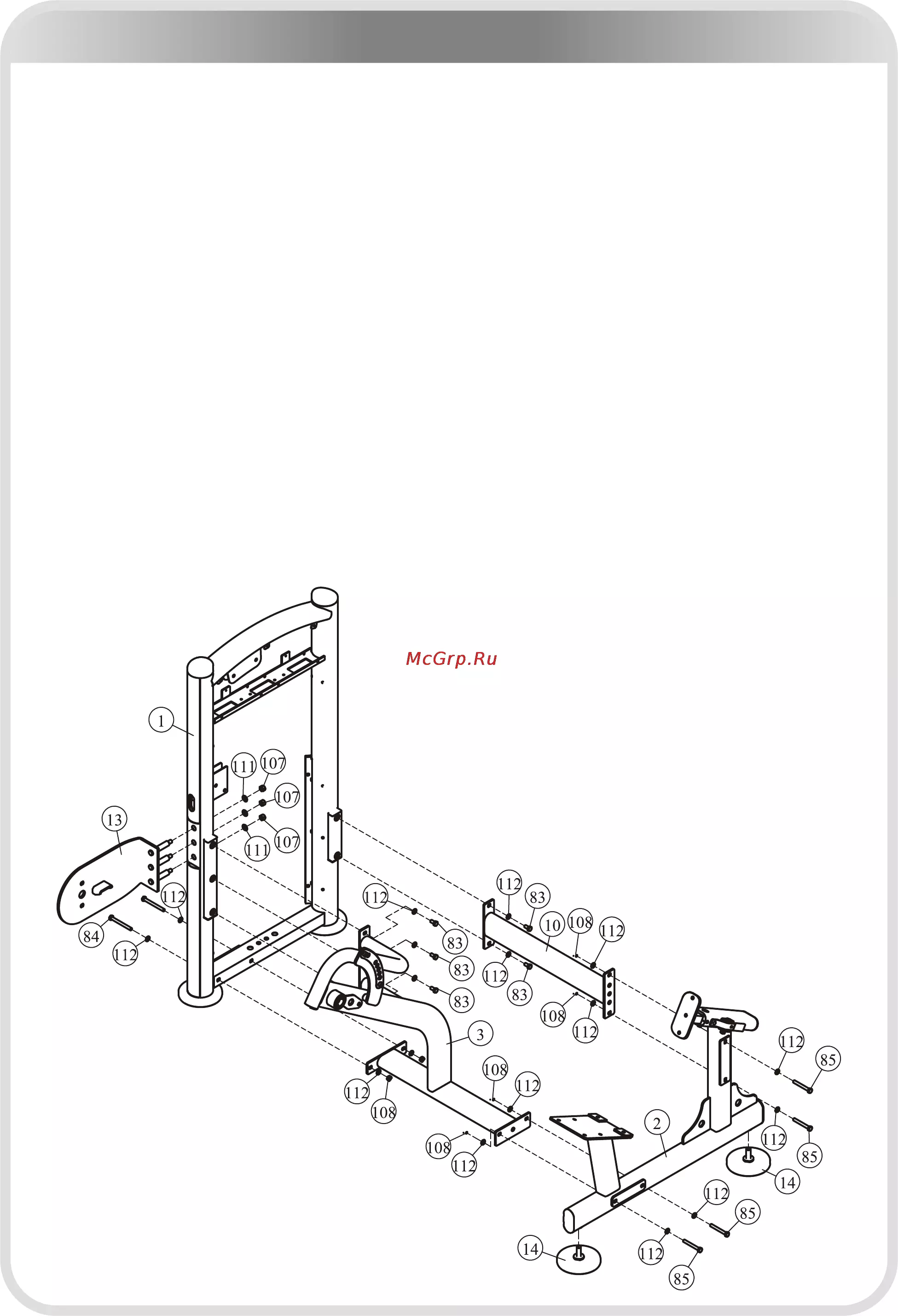

STEP 3

1. Attach the Cam (#7) & the Pivot Arm (#6) & the φ32*φ26*5 Flat Washer (#17)

& two Flange (#31) to the Main Shaft (#30).

2. Attach one Flange (#31) to the Main Bracket (#13) using:

two M12*35 HHB (#81) four Φ13*Φ24*1.5 Flat Washer (#111)

two M12 Nylon Lock Nut (#107)

3. Attach the Flange (#31) to the Bottom Cross Brace (#3) using:

two M12*85 HHB (#82) four Φ13*Φ24*1.5 Flat Washer (#111)

two M12 Nylon Lock Nut (#107)

4. Attach two Aluminum End Cap (#34) to the Main Shaft (#30) using:

one M10*30 FHCS (#95) one M10*75 FHCS (#96)

5. Attach two Flange (#31) to the Main Shaft (#30) using:

four M8*8 Socket Set Screw (#74)

Note: Hand tighten Βolts and Nylon Lock nuts.
