AssemblyAssembly

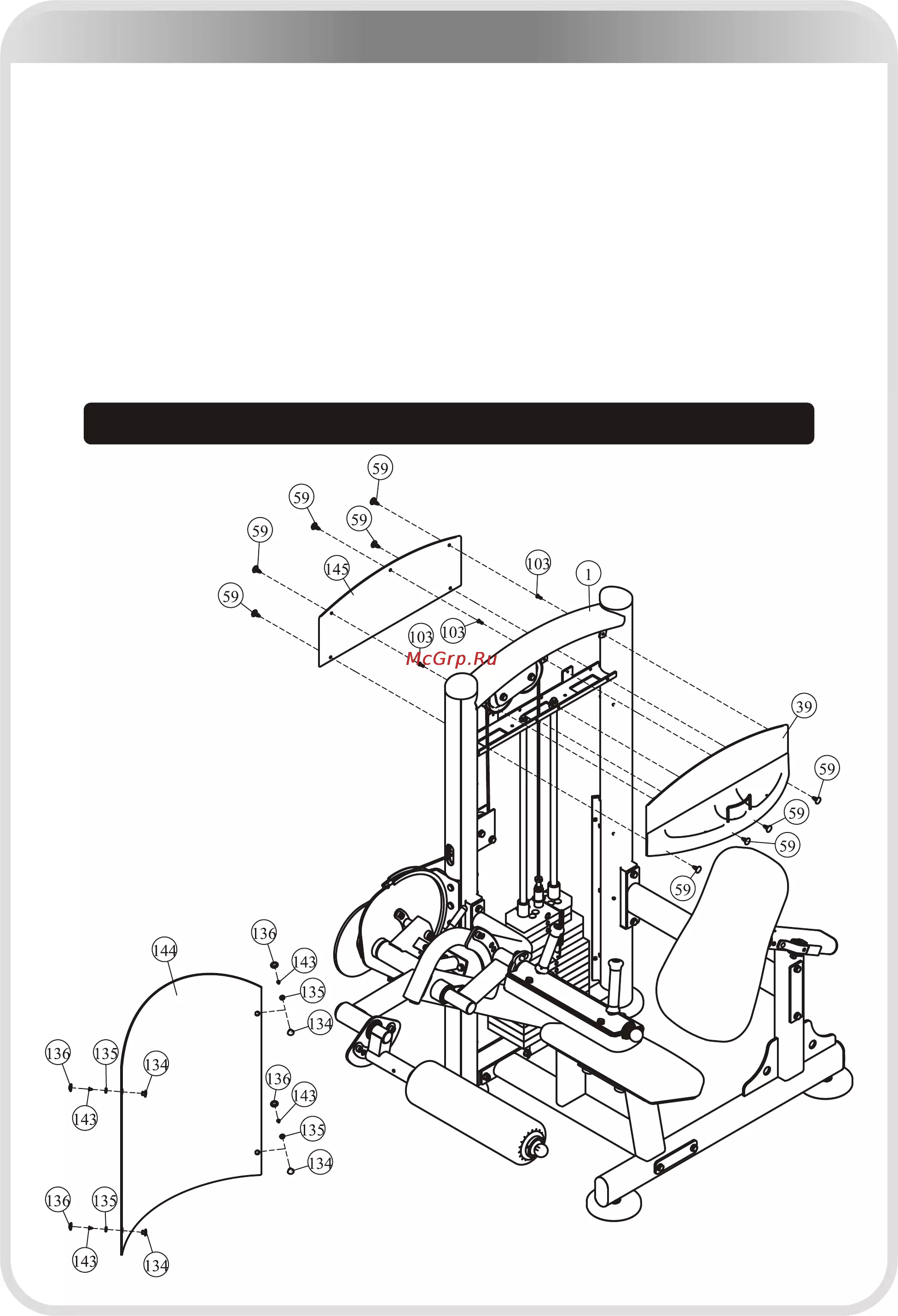

STEP 8

1. Attach the Shroud (#144) to the Weight Stack Frame (#1) using:

four Connect Button (#134) four Plastic Washer (#135)

four ST4.2*10 Self-Tapping Screw (#143) four Plastic Cover (#136)

2. Attach the Top Front Shroud (#39) to the Weight Stack Frame (#1) using:

four Button (#59) three M5*16 Flat Philips Screw (#103)

3. Attach the Top Rear Shroud (#145) to the Weight Stack Frame (#1) using:

five Button (#59)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

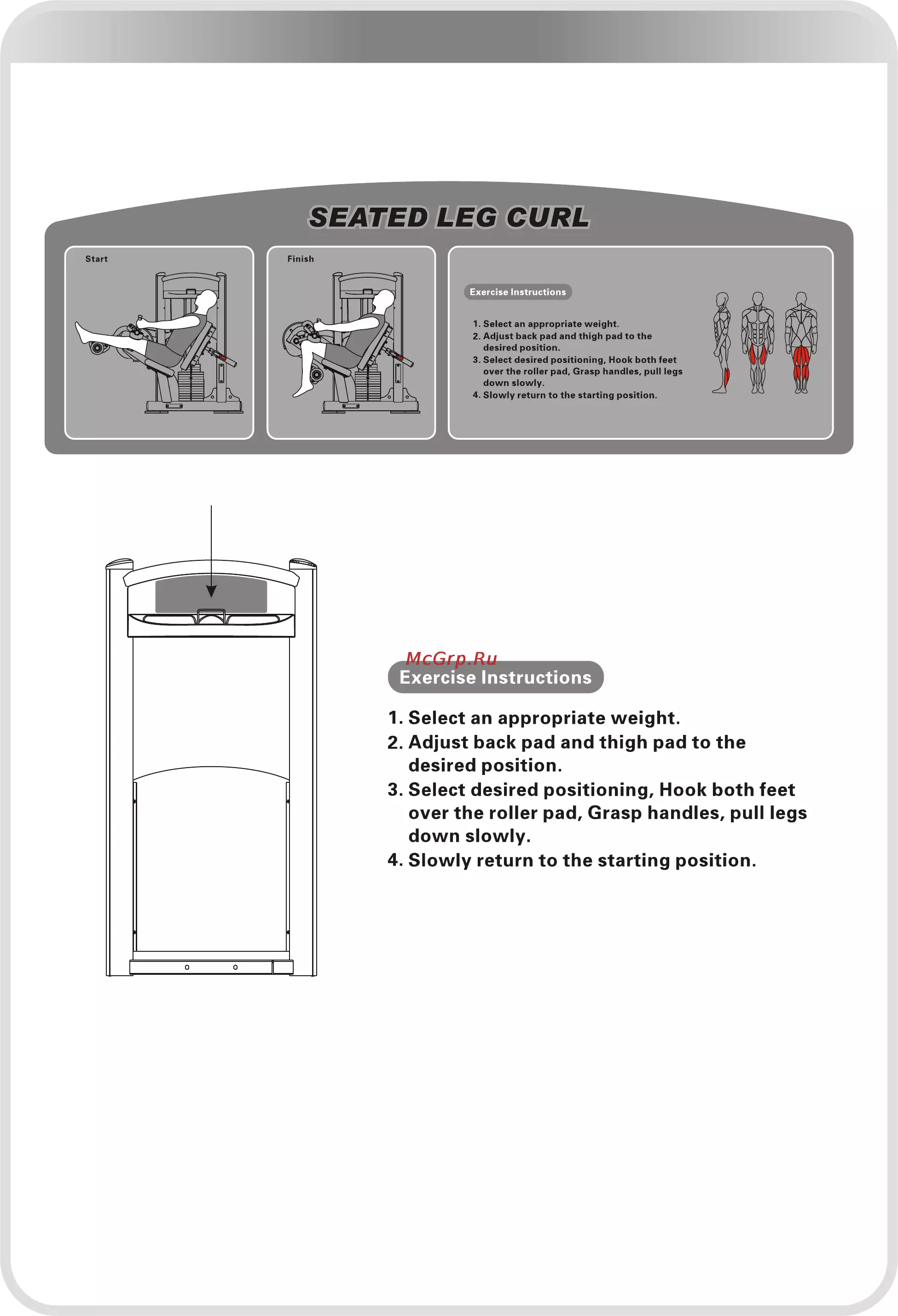

Here is the assembly instruction for Shor t Shroud !
