─ 17 ─

AssemblyAssembly

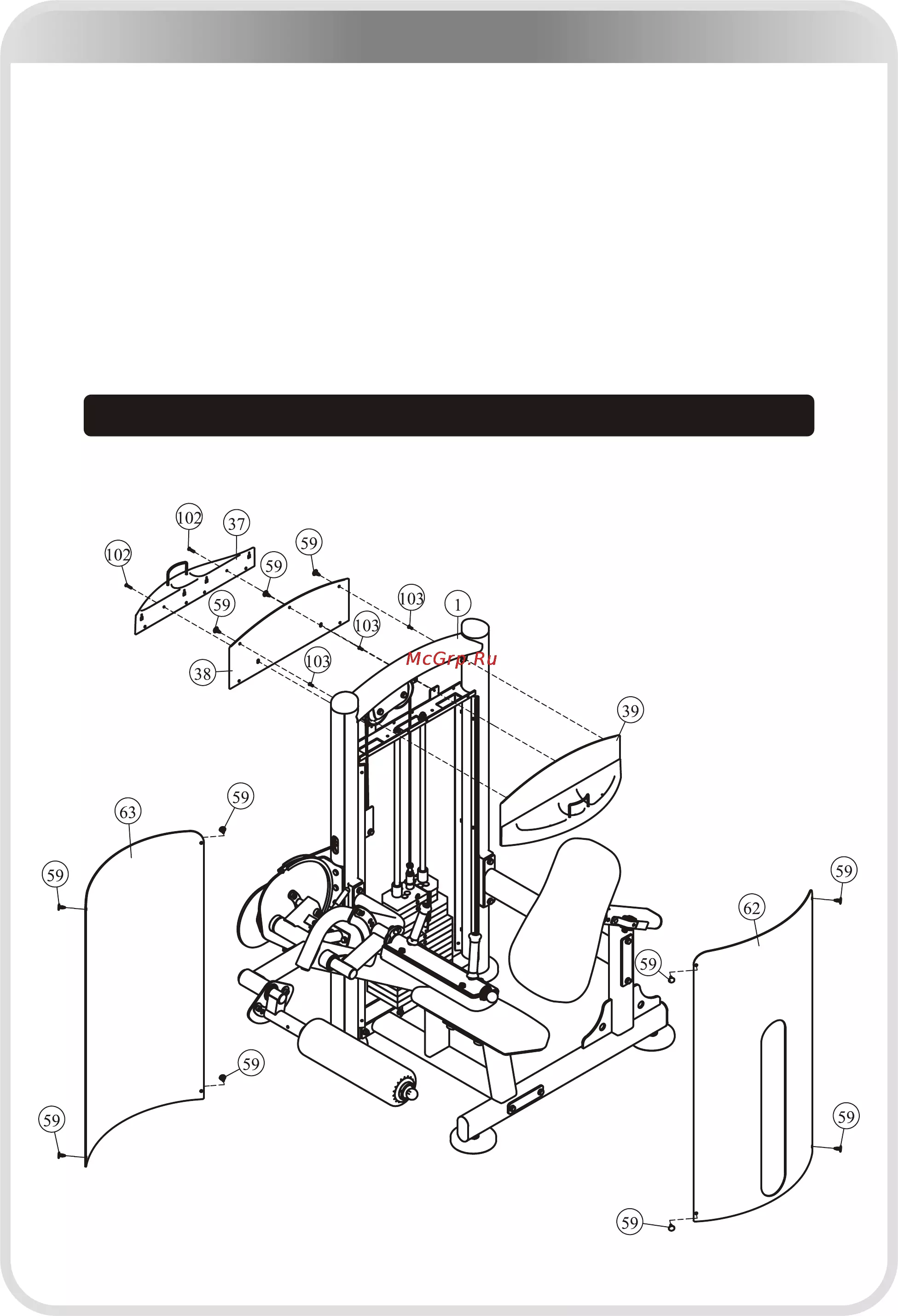

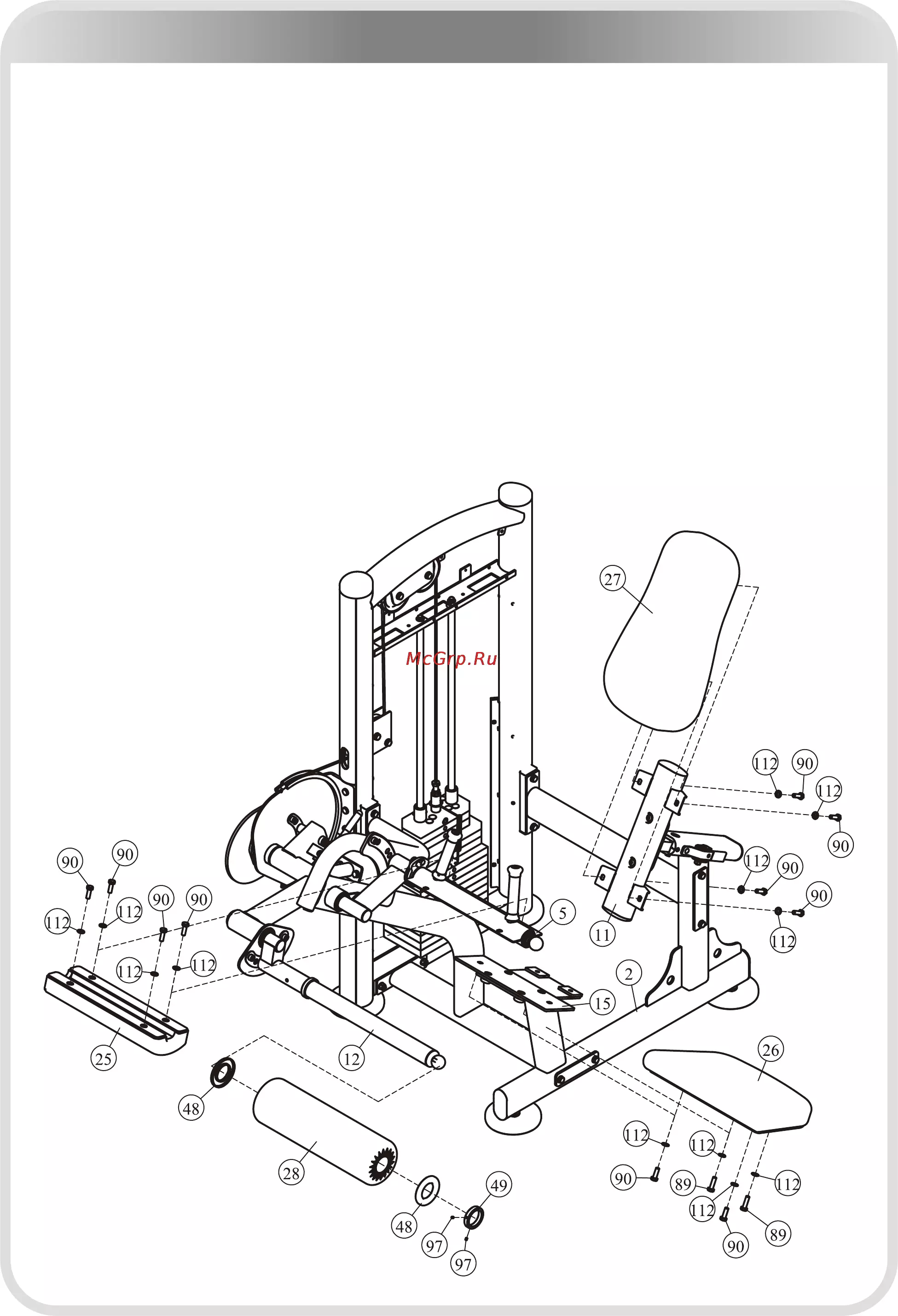

STEP 7

1. Attach the Seat Pad (#26) to the Main Frame (#2) using:

four Φ11*Φ20*2 Flat Washer (#112) two M10*30 HHB (#90)

two M10*35 HHB (#89)

2. Attach the Roller (#28) to the Swing Tube (#12) using:

two Big Collar (#48) one Φ65.6*Φ50.5*12.7 Collar (#49)

two 10-32*6.4 Socket Set Screw (#97)

3. Attach the Back Pad (#27) to the Back Pad Support (#11) using:

four M10*30 HHB (#90) four Φ11*Φ20*2 Flat Washer (#112)

4. Attach the Thigh Pad (#25) to the Support Arm (#5) using:

four M10*30 HHB (#90) four Φ11*Φ20*2 Flat Washer (#112)

Note: Wrench Tighten Βolts and Nylon Lock nuts.
