─ 12 ─

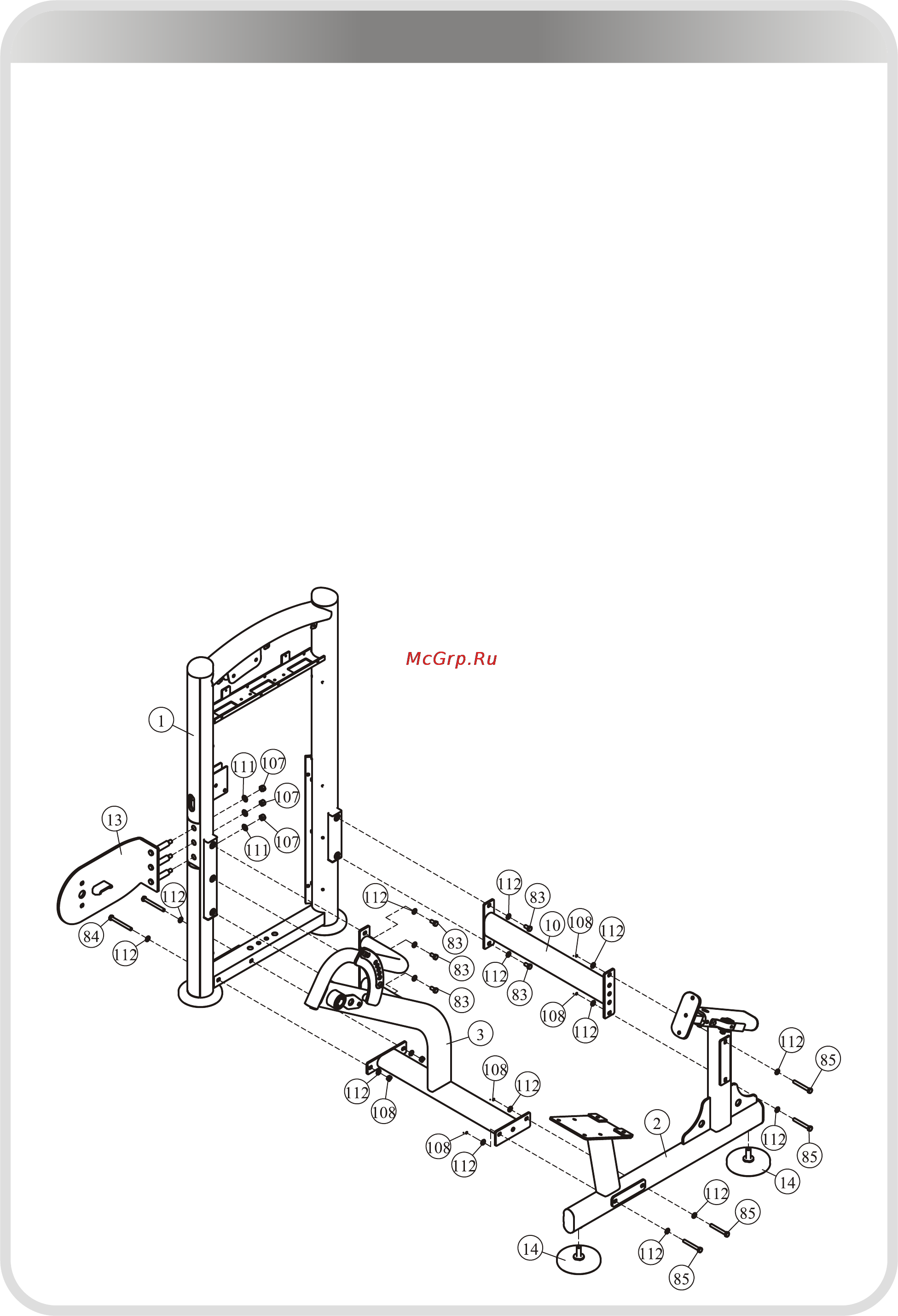

Assembly

STEP 2

1. Attach two Adjustable Foot Plate (#14) to the Main Frame (#2).

2. Attach the Main Bracket (#13) to the Weight Stack Frame (#1) using:

three Φ13* Φ24*1.5 Flat Washer (#111) three M12 Nylon Lock Nut (#107)

3. Attach the Bottom Cross Brace (#3) to the Weight Stack Frame (#1) using:

two M10*100 HHB (#84) three M10*20 HHB (#83)

seven Φ11*Φ20*2 Flat Washer (#112) two M10 Nylon Lock Nut (#108)

4. Attach the Bottom Cross Brace (#3) to the Main Frame (#2) using:

two M10*80 HHB (#85) four Φ11*Φ20*2 Flat Washer (#112)

two M10 Nylon Lock Nut (#108)

5. Attach the Rear Cross Brace (#10) to the Weight Stack Frame (#1) using:

two M10*20 HHB (#83) two Φ11*Φ20*2 Flat Washer (#112)

6. Attach the Rear Cross Brace (#10) to the Main Frame (#2) using:

two M10*80 HHB (#85) four Φ11*Φ20*2 Flat Washer (#112)

two M10 Nylon Lock Nut (#108)

Note: Hand tighten Βolts and Nylon Lock nuts.
