Panasonic WV-ASC970E [25/49] Operating procedures with cu950
![Panasonic WV-ASC970E [25/49] Operating procedures with cu950](/views2/1014031/page25/bg19.png)
25
■

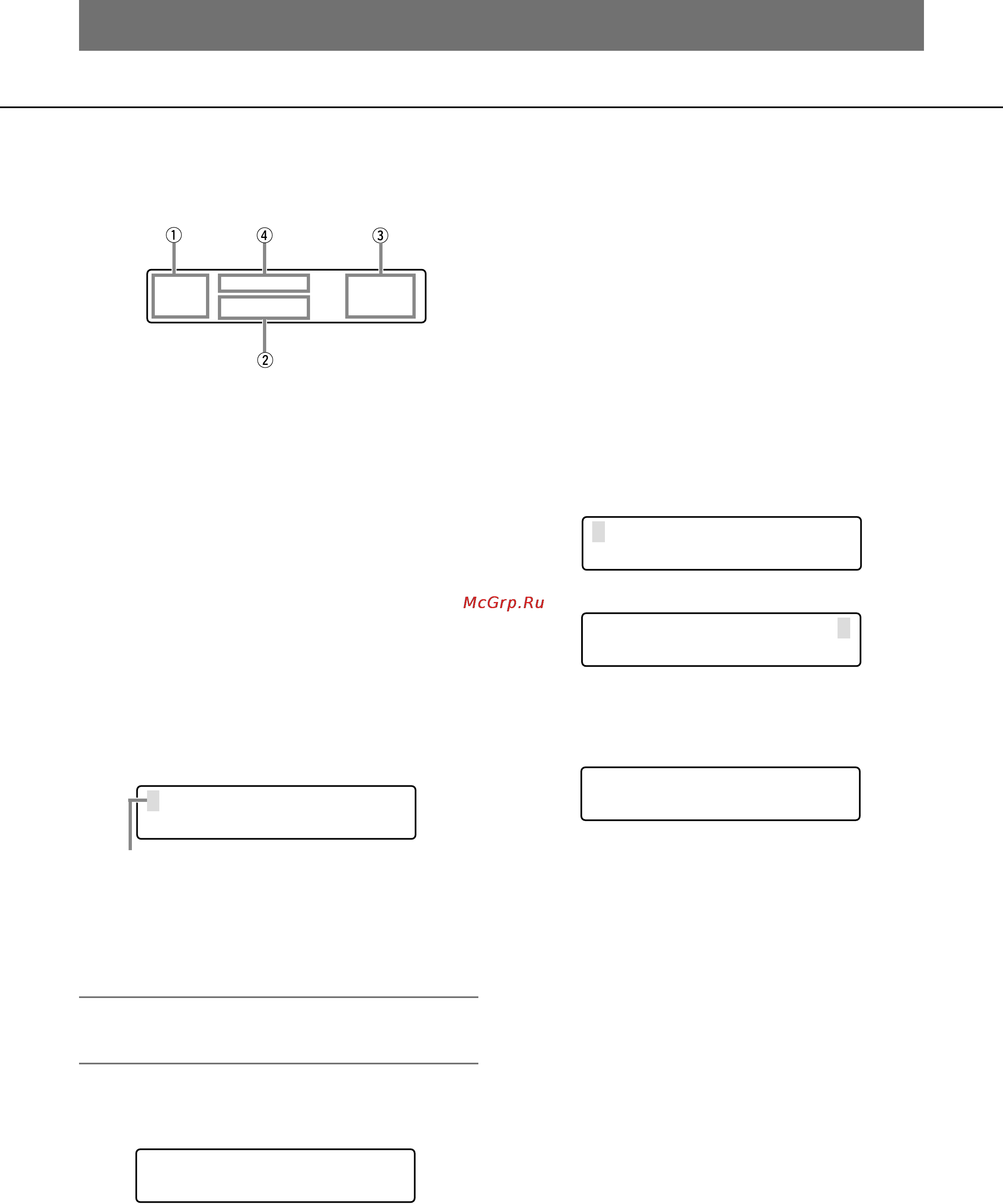

Default Status (LCD Display
After Login)
q Monitor number
The number of connected monitor is displayed.
w Unit number/Status
The number of connected site will be displayed.
e Camera number
The number of selected camera is displayed.
r Input number/Recorder number/Status
The numeric input, selected recorder number, or
status is displayed.
■
Blinking
In this document, grayed (greyed) areas on the LCD
illustrations mean blinking.
■
Messages Displayed on the LCD
The following are examples of LCD display after login.
Note:
• SomepartsofLCDdisplays,describedonthis
document, may differ from the actual status.
● Invalid
MON CAM
0032 Unit:01 >00512
∗ MON Prohibit CAM
0001 Unit:01 00001
Blinking
MON Invalid CAM
0001 Unit:01 00001
LCD Display Descriptions
This message is displayed in the following circum-
stances.
• WhenyouhaveenteredawronguserIDorpass-
word, etc.
• Whenyouhaveenteredacameranumberormoni-
tor number, etc. that is not existing.
● Busy
• Whenaselectedmonitoriscontrolledbyahigher-
level user, "∗" blinks on the LCD. (You cannot con-
trol the monitor.)
• Whenaselectedcameraiscontrolledbyahigher-
level user, "∗" blinks on the LCD. (You cannot con-
trol the camera.)
• TocanceltheBusystatus,selectanothermonitor,
camera, or wait until "∗" goes out.
● Prohibit
• Whenyouhavetriedanoperationnotauthorized
by the system unit, "Prohibit" is displayed on the
LCD.
• Whenyouhaveforgottentoselectamonitor
before selecting a camera, "Prohibit" is displayed
on the LCD.
• Afterafewseconds,theLCDdisplaywillreturnto
the default status.
∗ MON Prohibit CAM
0001 Unit:01 00001
"Busy" status is activated for a monitor.
MON Prohibit CAM∗
0001 Unit:01 00001
"Busy" status is activated for a camera.
MON Prohibit CAM
0001 Unit:01 00001
Operating Procedures with WV-CU950
