Lens Control
Note:
• Checkthataspecifiedlens,withmotorizedzoom/
focus functions, is mounted on the camera, and
the lens selection (DC/VIDEO) on the camera is set
to DC.
• Availablefunctionsdifferdependingoncameras.
Refer to the Operating Instructions of camera.
1. Select the desired monitor and camera. (Refer to
p. 27 Monitor Selection and Camera Selection.)
2. Press the FOCUS FAR or NEAR button while
watching the monitor. The lens focus is adjusted to
obtain a sharply focused image.
Note:
• PressingtheBbuttonortopbuttonof3Djoystick
unit can also set the lens focus automatically.
3. To adjust the lens zoom, move the zoom wheel
controller to the right (TELE) or left (WIDE).
4. Press the IRIS OPEN or CLOSE buttons to open/
close the lens iris. The lens iris is adjusted by these
buttons to obtain the proper image exposure.
Note:
• Toreturnthelensiristothefactorydefaultstatus,
press the A button of 3D joystick unit.
■
Pan/Tilt Control
● Manual Operation
1. Select the desired monitor and camera. (Refer to
p. 27 Monitor Selection and Camera Selection.)
2. Move the 3D joystick to move the pan/tilt head
towards the desired direction.
Note:
• Ifyoumovethe3Djoystickwidely,youcanpan
and tilt the camera faster.
• Panning/tiltingspeeddiffersdependingoncamer-
as.
● Auto Panning
Refer to p. 42 Auto Mode for how to operate.
●Program Preset Position
1. Select the desired monitor and camera. (Refer to
p. 27 Monitor Selection and Camera Selection.)

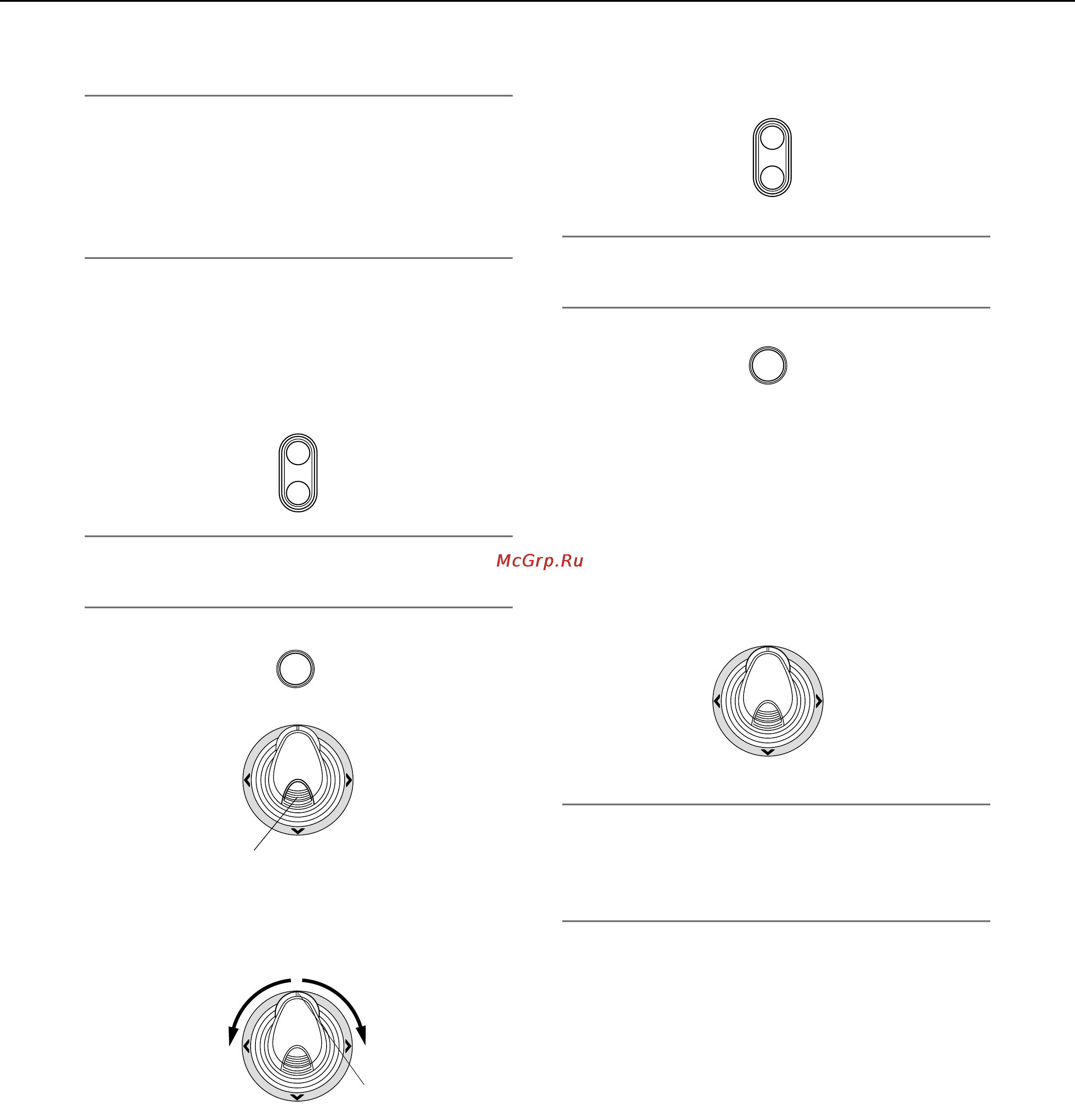

FAR
FOCUS
NEAR
B
Top button
WIDE
TELE
Zoom wheel controller
OPEN
IRIS
CLOSE
A
