VA-1USB-T/VA-1USB-R - Defining the VA-1USB-T and VA-1USB-R USB Transmitter and
Receiver
7
7

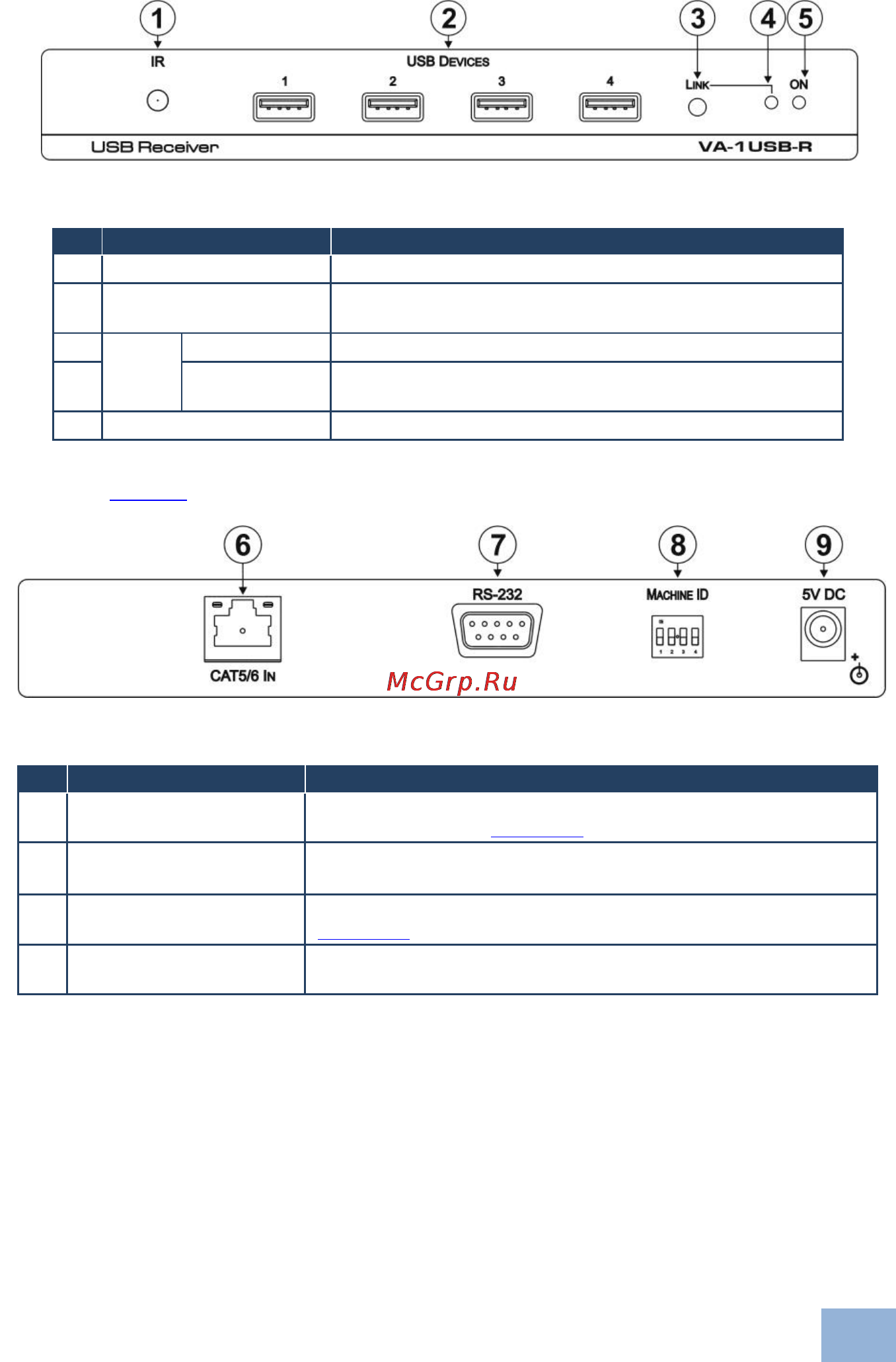

Figure 3: VA-1USB-R USB Receiver Front Panel
#
Feature
Function
1
IR Sensor
Receives IR signals from an IR transmitter
2
USB DEVICES 1~4
Type A USB Connectors
Connect to up to four USB devices
3
LINK
Button
Press to establish the TP link to the transmitter
4
LED
Lights green when the TP link to the transmitter is
established
5
ON LED
Lights green to indicate that the device is powered on
Figure 4 defines the rear panel of the VA-1USB-R.
Figure 4: VA-1USB-R USB Receiver Rear Panel
#
Feature
Function
6
CAT 5/6 IN RJ-45
Connector
Connect to the CAT 5/6 OUT RJ-45 connector on the rear panel of
the VA-1USB-T (see Section 2.4)
7
RS-232 9-pin D-sub
Serial Port Connector (F)
Connect to the device to be controlled via the serial link.
Note: The RS-232 link is bidirectional
8
MACHINE ID 4-way
DIP-switch
Use to set the device ID to pair with the transmitter (see
Section 5.2)
9
5V DC Power Connector
Connect to one of the supplied +5V DC power adapters. Center
pin positive
