16
VA-1USB-T/VA-1USB-R - Using the Web Pages
4. Reboot the device by clicking on Utilities and clicking Reboot.
The device is rebooted with the new IP parameters.
6.4 The Functions Tab
Using the Functions tab (Figure 14) you can enable/disable and modify the serial-
over-IP parameters.

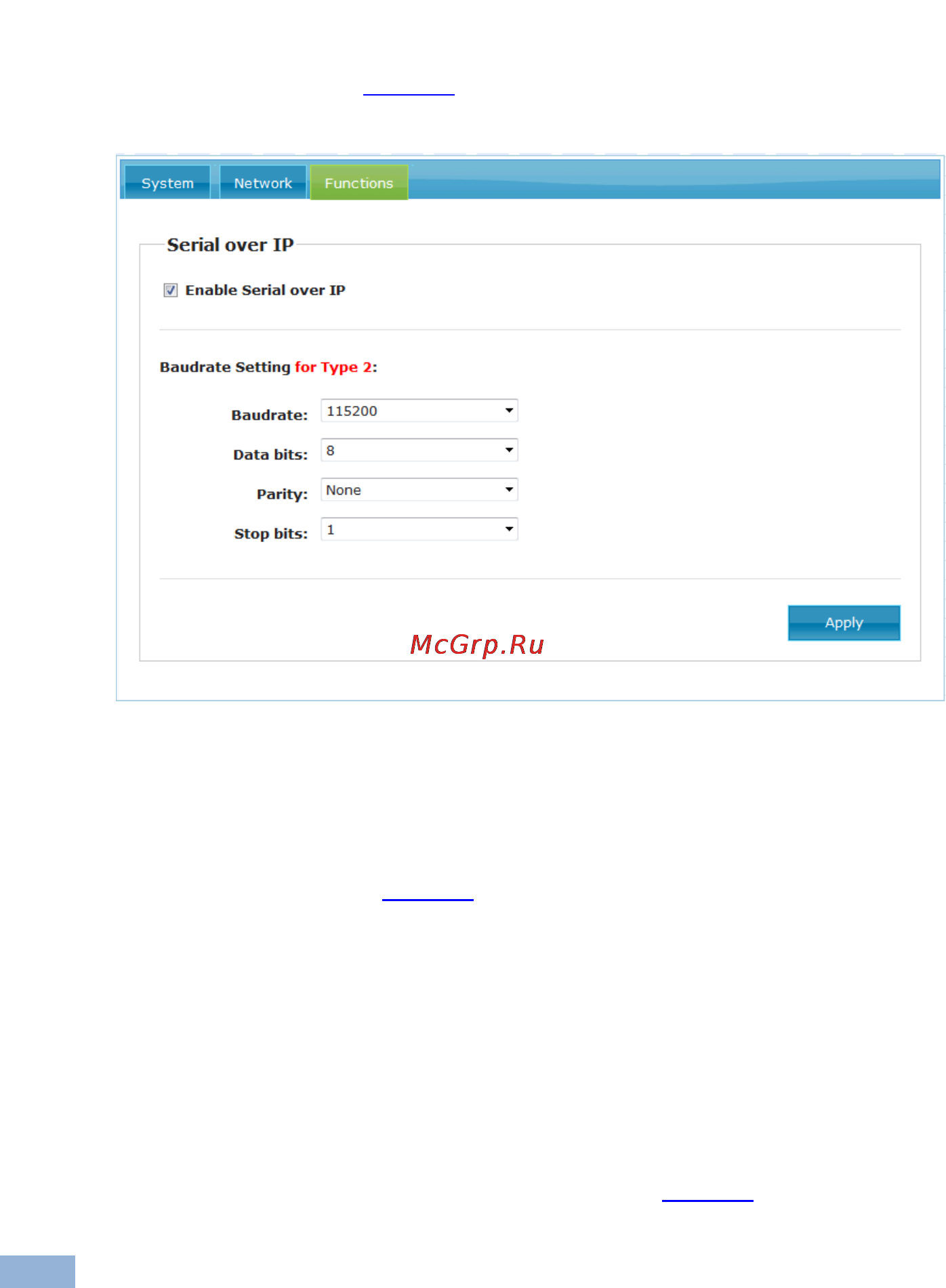

Figure 14: The Functions Tab
To modify the serial-over-IP functionality:
1. Click on the Functions tab.
The window shown in Figure 14 is displayed.
2. Enable or disable the device by checking or unchecking the Enable Serial
over IP box.
3. Modify the serial communication parameters using the drop-down lists for
Baud rate, Data bits, Parity and Stop bits.
4. Click Apply.
The changes are made and the message shown in Figure 15 is displayed.
