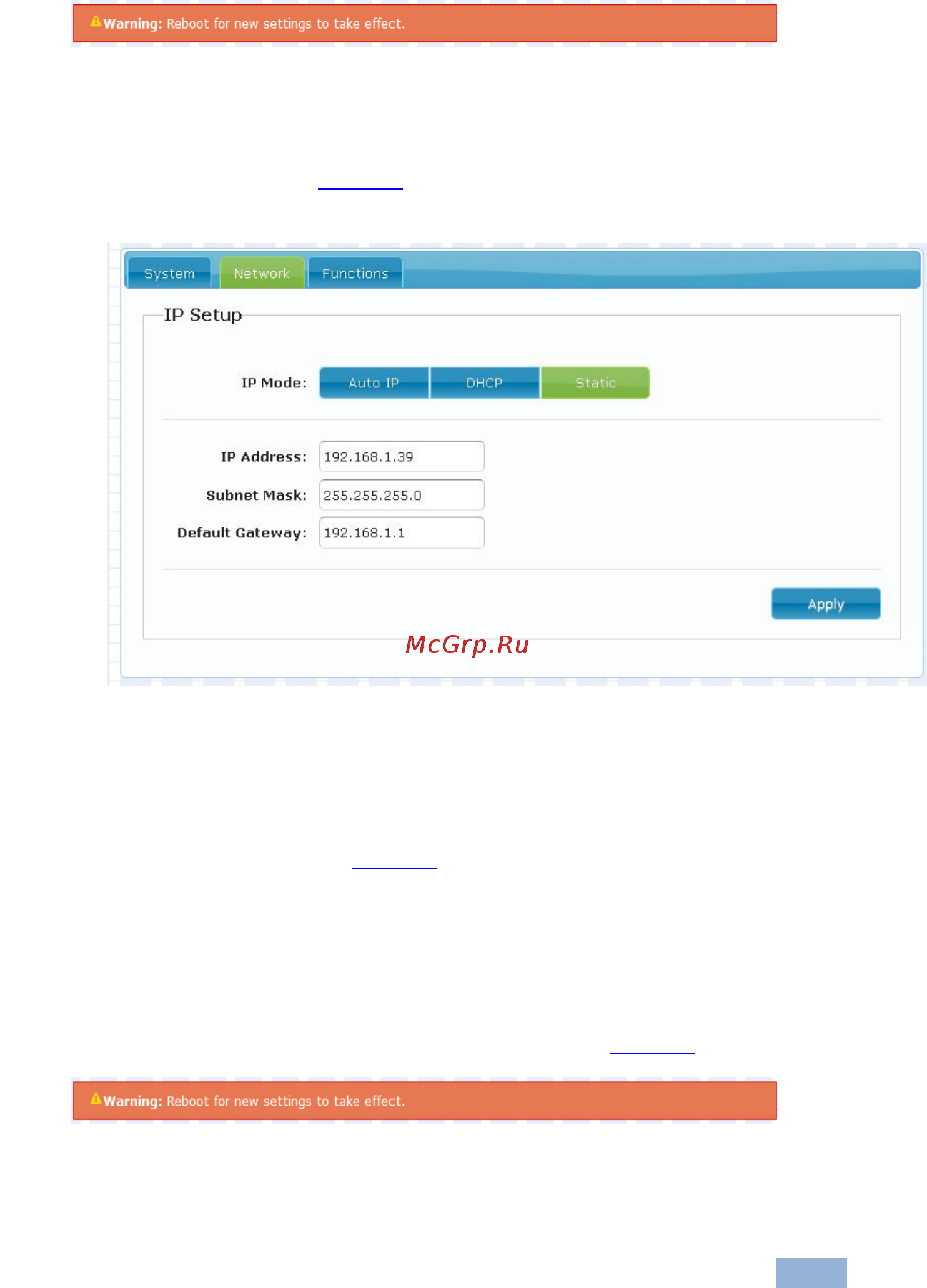

VA-1USB-T/VA-1USB-R - Using the Web Pages
15
15
Figure 11: Warning Message
6.3 The Network Tab
Using the Network tab (Figure 12), you can modify the IP parameters of the
device. Currently only static IP addressing is allowed.
Figure 12: The Network Tab
To change the IP parameters:
1. Click on the Network tab.
The window shown in Figure 12 is displayed.
2. Modify the IP address, subnet mask and default gateway addresses as
required.
3. Click Apply.
The changes are made and the message shown in Figure 13 is displayed.
Figure 13: Warning Message
