8
VA-1USB-T/VA-1USB-R - Connecting the VA-1USB-T and VA-1USB-R
5 Connecting the VA-1USB-T and VA-1USB-R
Switch off the power to all devices before connecting them to your
VA-1USB-T/VA-1USB-R. After connecting your VA-1USB-T/
VA-1USB-R, connect the power to the transmitter and receiver and
then switch on the power to the other devices.

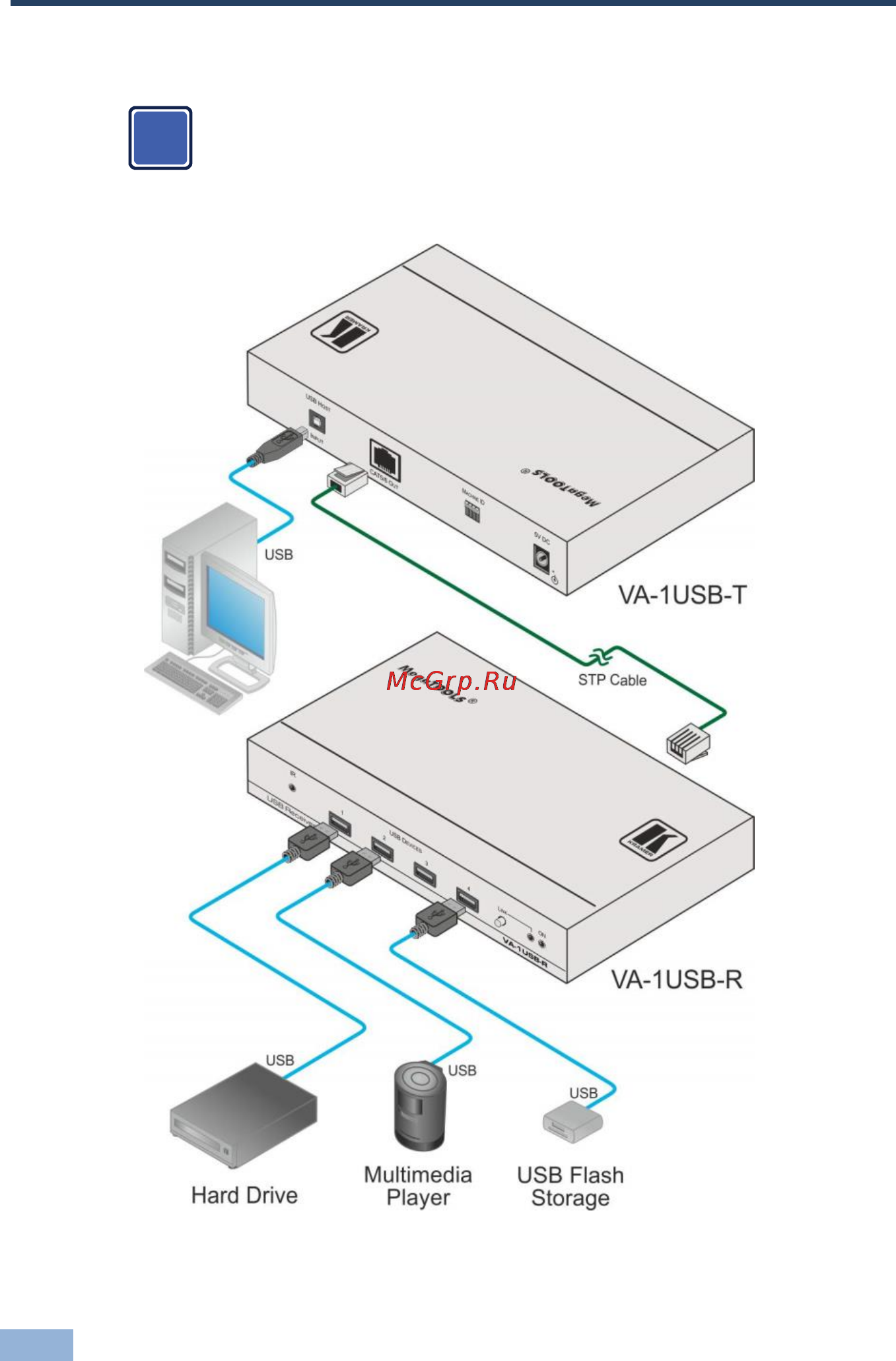

Figure 5: Connecting the VA-1USB-T Transmitter and VA-1USB-R Receiver
