VA-1USB-T/VA-1USB-R - Defining the VA-1USB-T and VA-1USB-R USB Transmitter and
Receiver
5
5
4 Defining the VA-1USB-T and VA-1USB-R
USB Transmitter and Receiver
This section defines the:
VA-1USB-T USB Transmitter (see Section 4.1)
VA-1USB-R USB Receiver (see Section 4.2)
4.1 Defining the VA-1USB-T USB Transmitter
In addition to encoding and transmitting the USB and RS-232 signals, the
VA-1USB-T outputs the IR signal received from the VA-1USB-R.
RS-232 commands and data flow bidirectionally allowing status requests and
control of a destination unit.
Figure 1 defines the front panel of the VA-1USB-T.

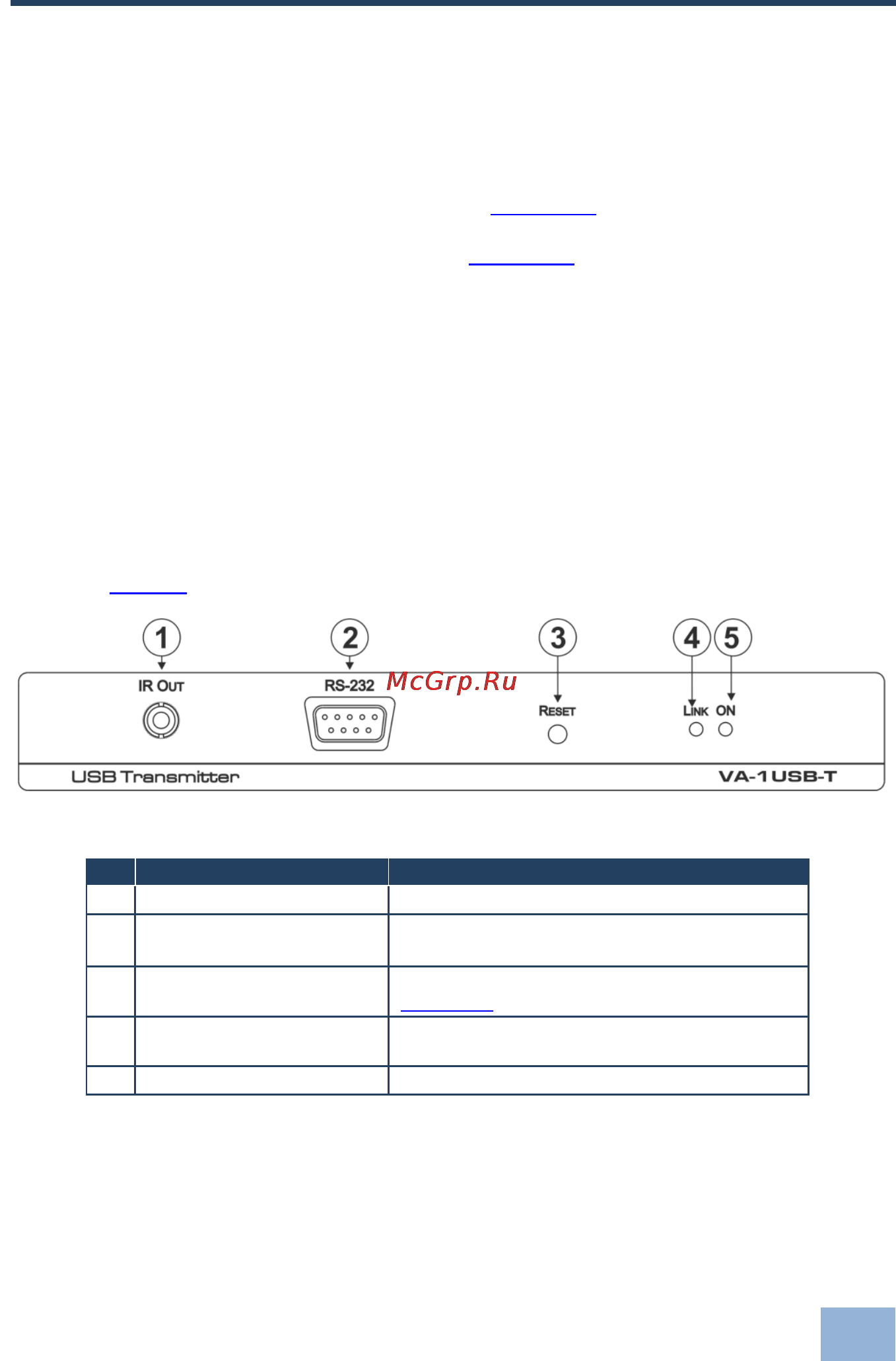

Figure 1: VA-1USB-T USB Transmitter Front Panel
#
Feature
Function
1
IR OUT 3.5mm Mini Jack
Connect the IR blaster
2
RS-232 9-pin D-sub Serial
Port Connector (F)
Connect to the serial controller
Note: The RS-232 link is bidirectional
3
RESET Button
Press to reset the device to factory default (see
Section 5.3)
4
LINK LED
Lights green when the TP link to the receiver is
established
5
ON LED
Lights green when the device is powered on
