12

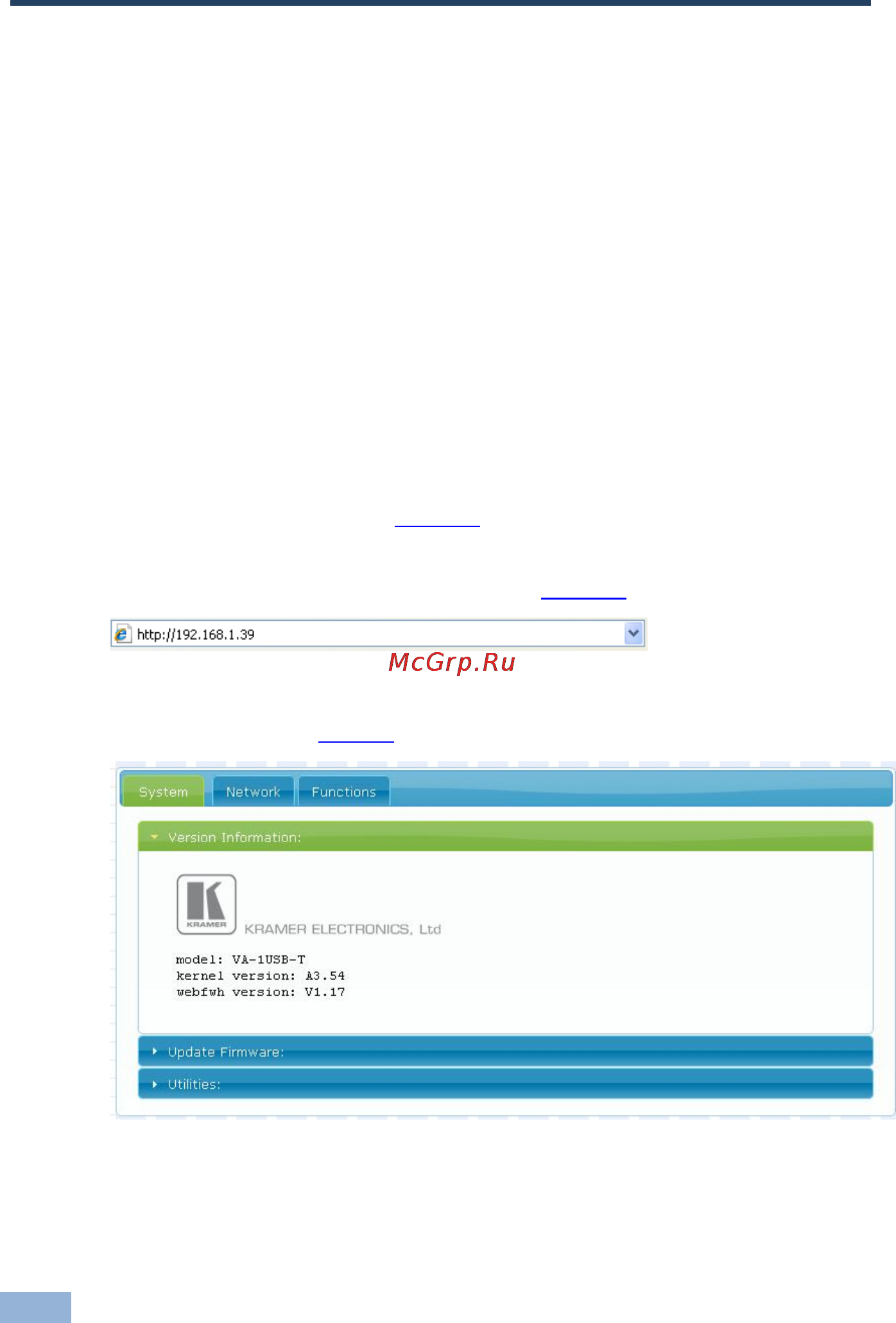

VA-1USB-T/VA-1USB-R - Using the Web Pages
6 Using the Web Pages
The VA-1USB-T and VA-1USB-R provide built-in Web pages accessible by
standard Web browsers that allow you to configure and maintain the devices.
6.1 Accessing the VA-1USB-T/VA-1USB-R Embedded Web
Pages
Before you can use the embedded Web pages, check that your computer is
correctly connected to the VA-1USB-T/VA-1USB-R via the Ethernet connection.
To access the VA-1USB-T/VA-1USB-R embedded Web pages:
1. Open your Internet browser.
2. Type the IP address (see Section 9) of the VA-1USB-T/VA-1USB-R in the
address bar of your browser. (The IP address for the VA-1USB-T is shown,
for the IP address of the VA-1USB-R see Section 8).
Figure 7: Entering the IP Address in your Browser
The screen shown in Figure 8 appears.
Figure 8: Main Page System Tab
