Kramer VA-1USB-T [16/25] The system tab

VA-1USB-T/VA-1USB-R - Using the Web Pages

The Web pages consist of the following tabs:

 System tab (see Section 6.2)

 Network tab (see Section 6.3)

 Functions tab (see Section 6.4)

6.2 The System Tab

Using the System tab (Figure 9) you can:

 View the version information

 Update the firmware

 Run functions

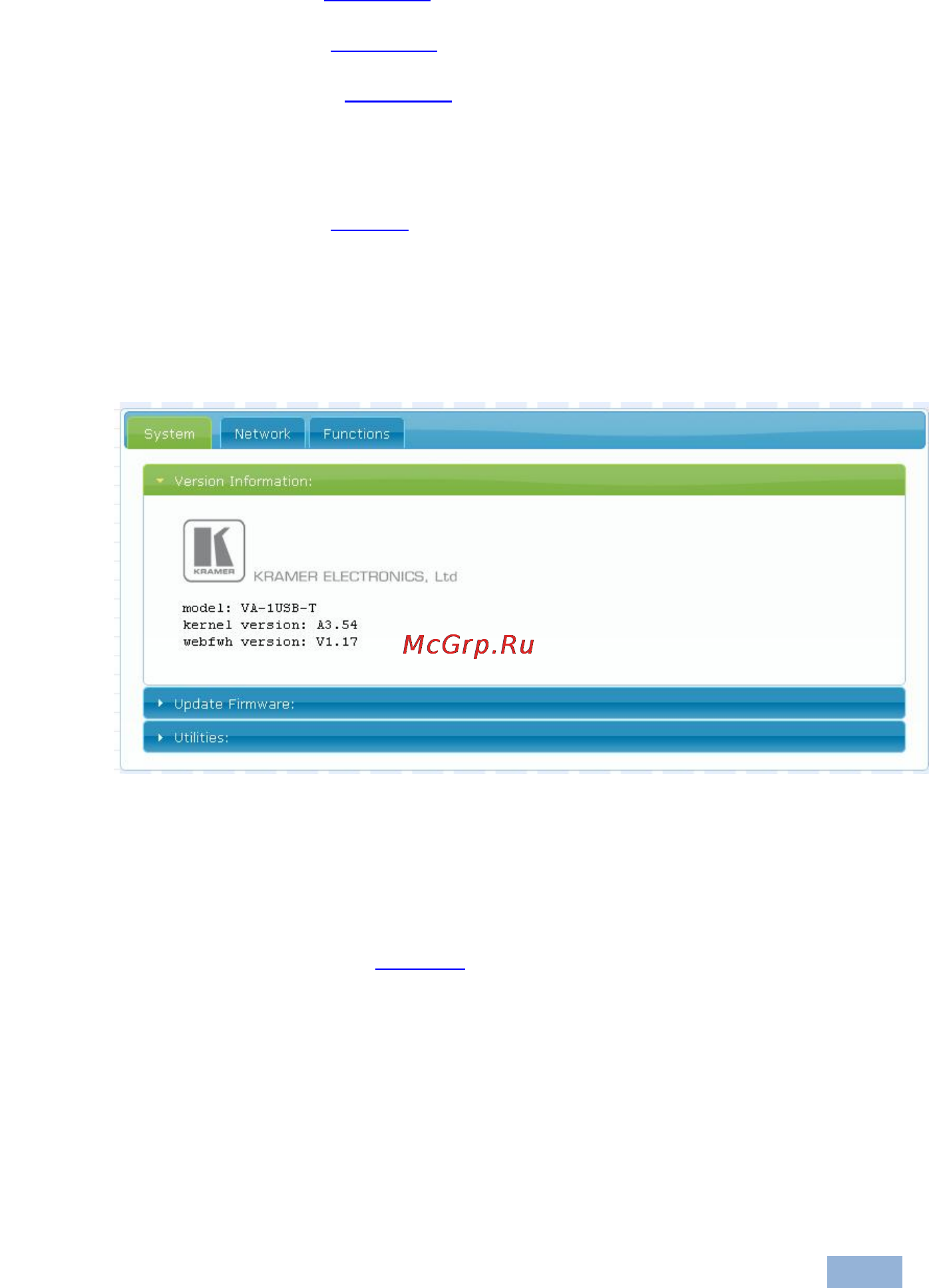

Figure 9: System Tab

To update the firmware:

1. Click on Update Firmware.

The window shown in Figure 10 is displayed.
