VP-770 – Overview
9
#
Feature
Function
15
RESET TO XGA/720P Button
Press to reset the video output resolution to XGA or 720p and change the deep color settings to Off on the
output (see Section 6.7)
Press and hold for about 3 seconds to toggle between reset to XGA and reset to 720p
16
PANEL LOCK Button
Press and hold for about 3 seconds to lock/unlock the front panel buttons

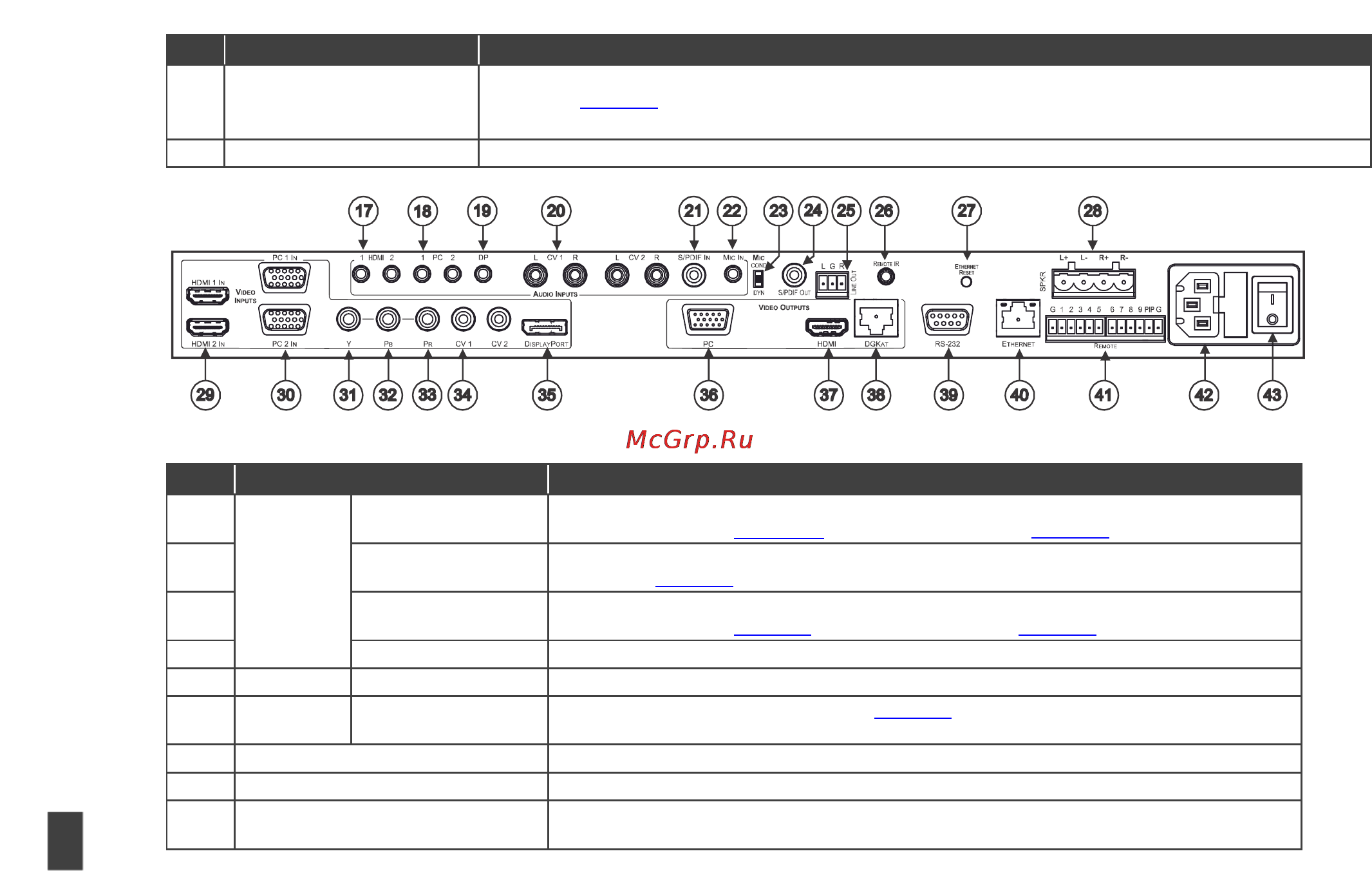

Figure 2: VP-770 Presentation Switcher/Scaler Rear Panel
#
Feature
Function
17
AUDIO IN
Unbalanced
Connectors
HDMI 3.5mm Mini
Jack
Connect to an unbalanced audio source for audio takeover of the HDMI 1 and HDMI 2
embedded audio (see Section 6.3). The pinout is defined in Section 5.3
18
PC 3.5mm Mini Jack
Connect to the unbalanced audio of the computer graphics source (from 1 to 2). The pinout
is defined in Section 5.3
19
DP 3.5mm Mini Jack
Connect to the unbalanced audio source for analog audio takeover of the DisplayPort
embedded audio (see Section 6.3). The pinout is defined in Section 5.3
20
CV (L, R) RCA
Connect to the unbalanced stereo audio of the composite video source (from 1 to 2)
21
S/PDIF IN RCA
Connect to the digital audio source of the component video (Y, Pb, Pr)
22
MIC IN 3.5mm Mini
Jack
Connect to a microphone (see pinout in Section 5.2)
23
COND/DYN MIC DIP-switch
Select between a condenser and a dynamic type microphone
24
S/PDIF OUT RCA Connector
Connect to a digital audio acceptor
25
LINE OUT (L, R) Terminal Block
Connector
Connect to the L and R unbalanced stereo audio acceptor
