VP-770 - Controlling the VP-770
51
51
6. Select Use the following IP Address for static IP addressing and fill in the
details as shown in Figure 31.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to
192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.

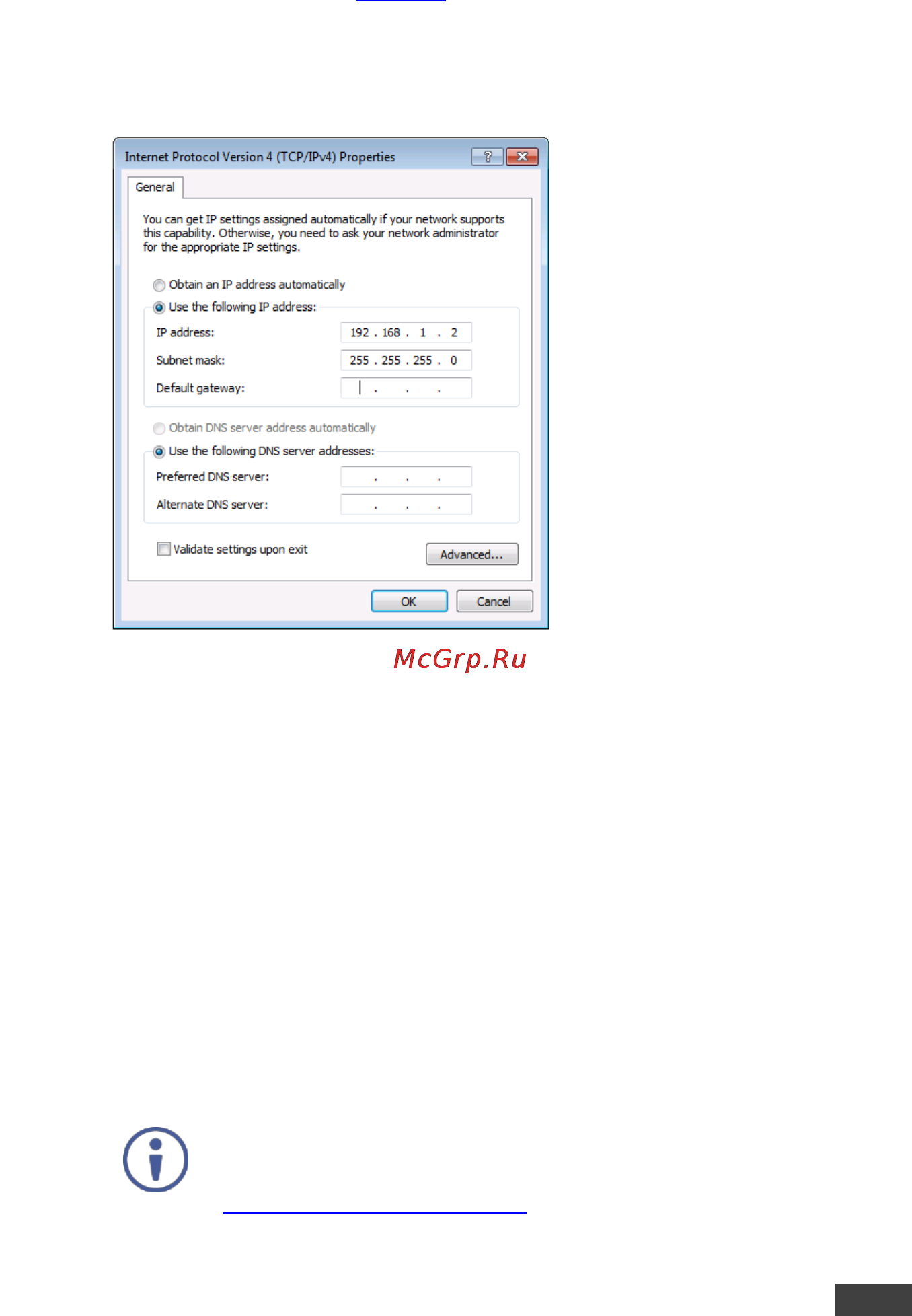

Figure 31: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
8.5.2 Connecting the ETHERNET Port via a Network Hub or Switch
You can connect the Ethernet port of the VP-770 to the Ethernet port on a network
hub or network router, via a straight-through cable with RJ-45 connectors.
8.5.3 Ethernet Port Configuration and Control
Use the Kramer K-UPLOAD software to configure and control the VP-770 via the
Ethernet.
The latest version of K-UPLOAD and installation instructions can be
downloaded from the Kramer Web site at
www.kramerav.com/downloads/
