Kramer VP-770 [85/123] The output settings

VP-770 - Using the Embedded Web Pages

9.5 The Output Settings

The Output Settings page lets you define the output parameters:

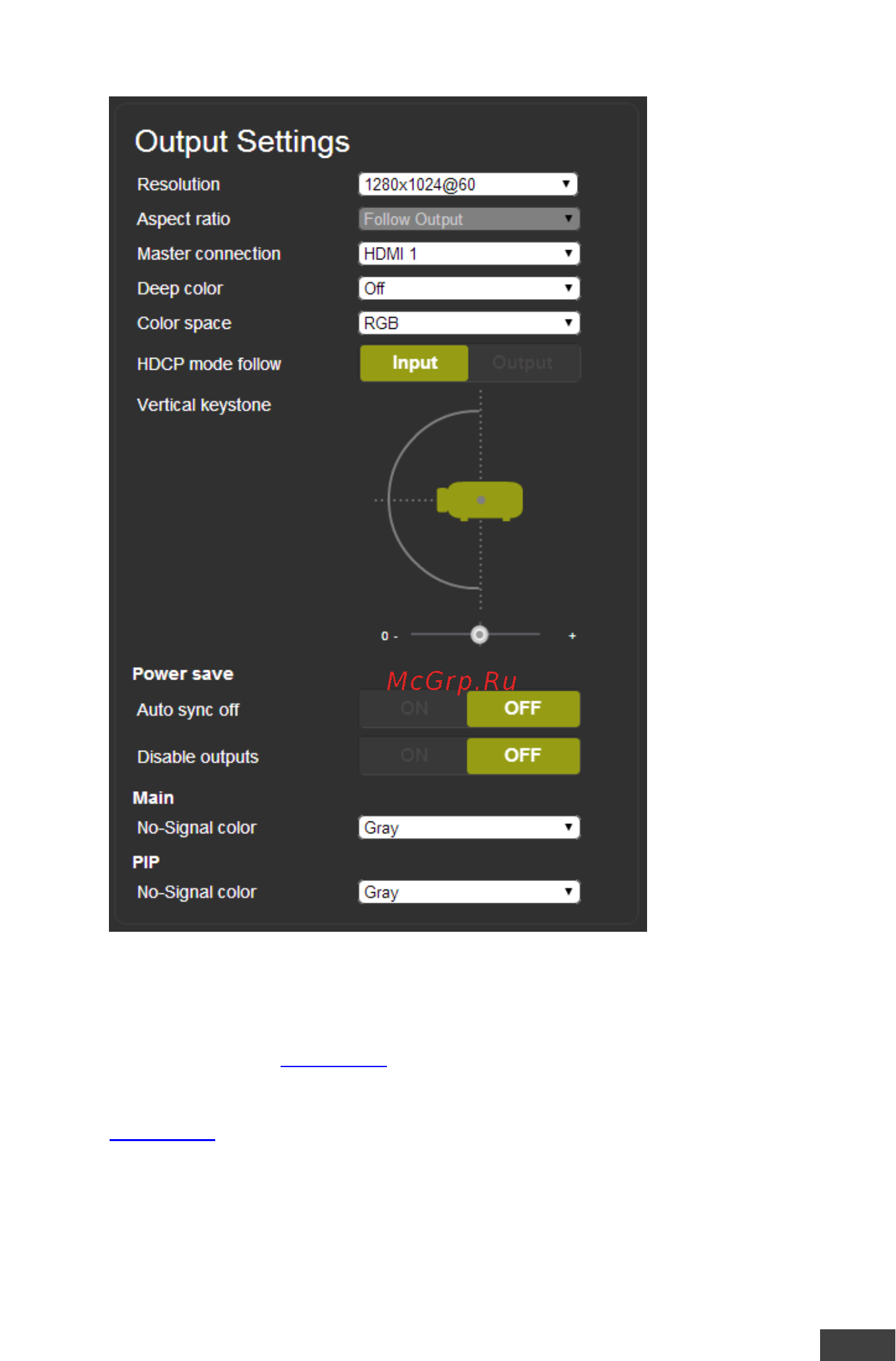

Figure 71: The Output Settings Page

Set the output resolution, the aspect ratio, the master connection, deep color and

HDCP mode (see Section 6.7), as well as the vertical keystone, power-save

settings and the color of the window if there is no signal on the input (see

Section 6.8).
