Kramer VP-770 [96/123] The security page

VP-770 - Using the Embedded Web Pages

9.9 The Security Page

The Security page defines two security levels:

 No username or password required

 Access to all settings requires a valid username and password

When security is activated, you can change the password

By default, the Security page is deactivated and there is no need to enter a

username and password to access the Web pages:

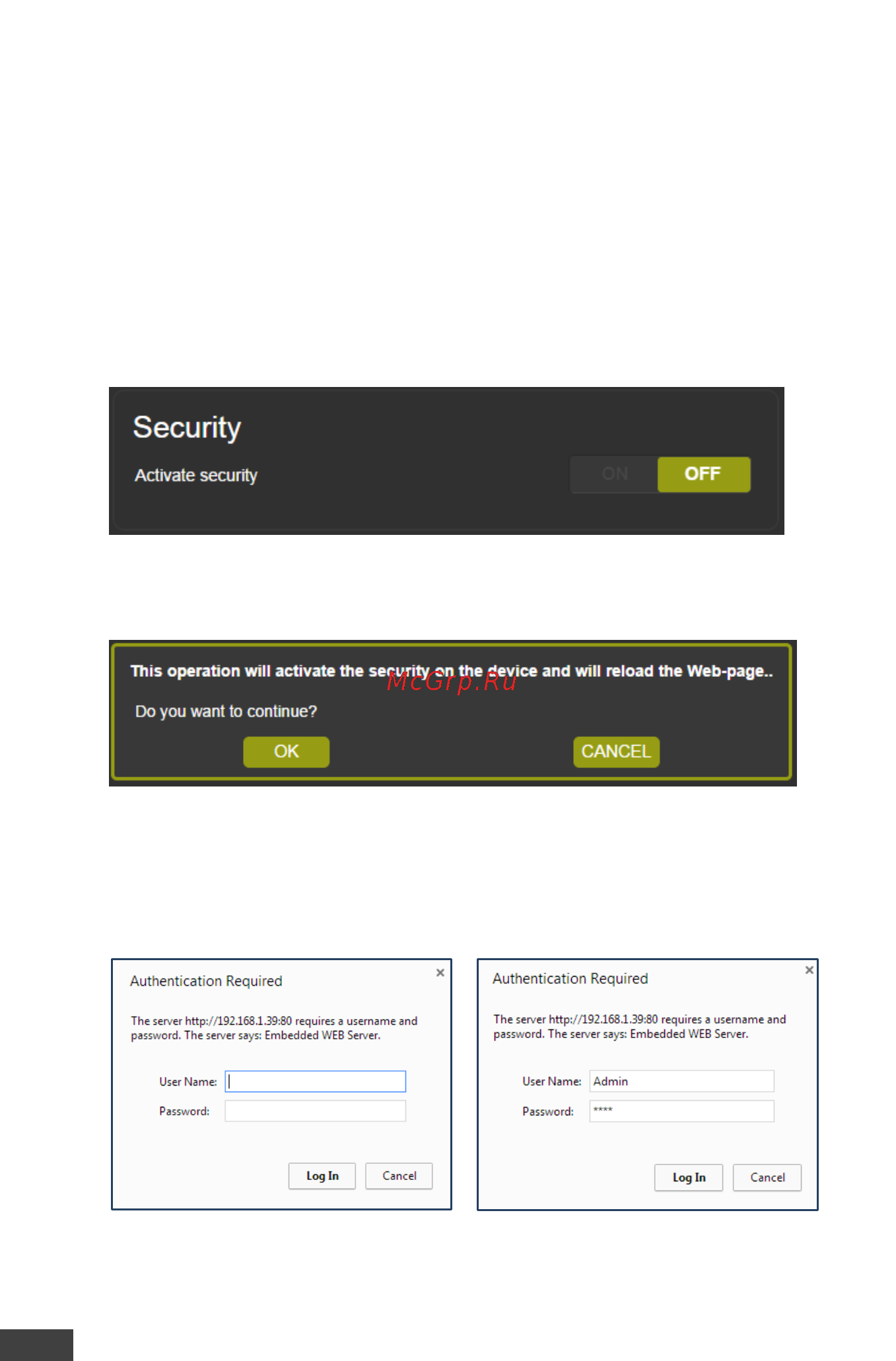

Figure 85: The Security Page – Security Deactivated

To activate security, press the ON button:

Figure 86: The Security Page – Activating the Security

Click OK.

The Web Page reloads and the following message appears for you to fill in:

Figure 87: The Security Page – Authentication Required
