Kramer VP-770 [38/123] The scale menu

VP-770 - The OSD Menu

6.7 The Scale Menu

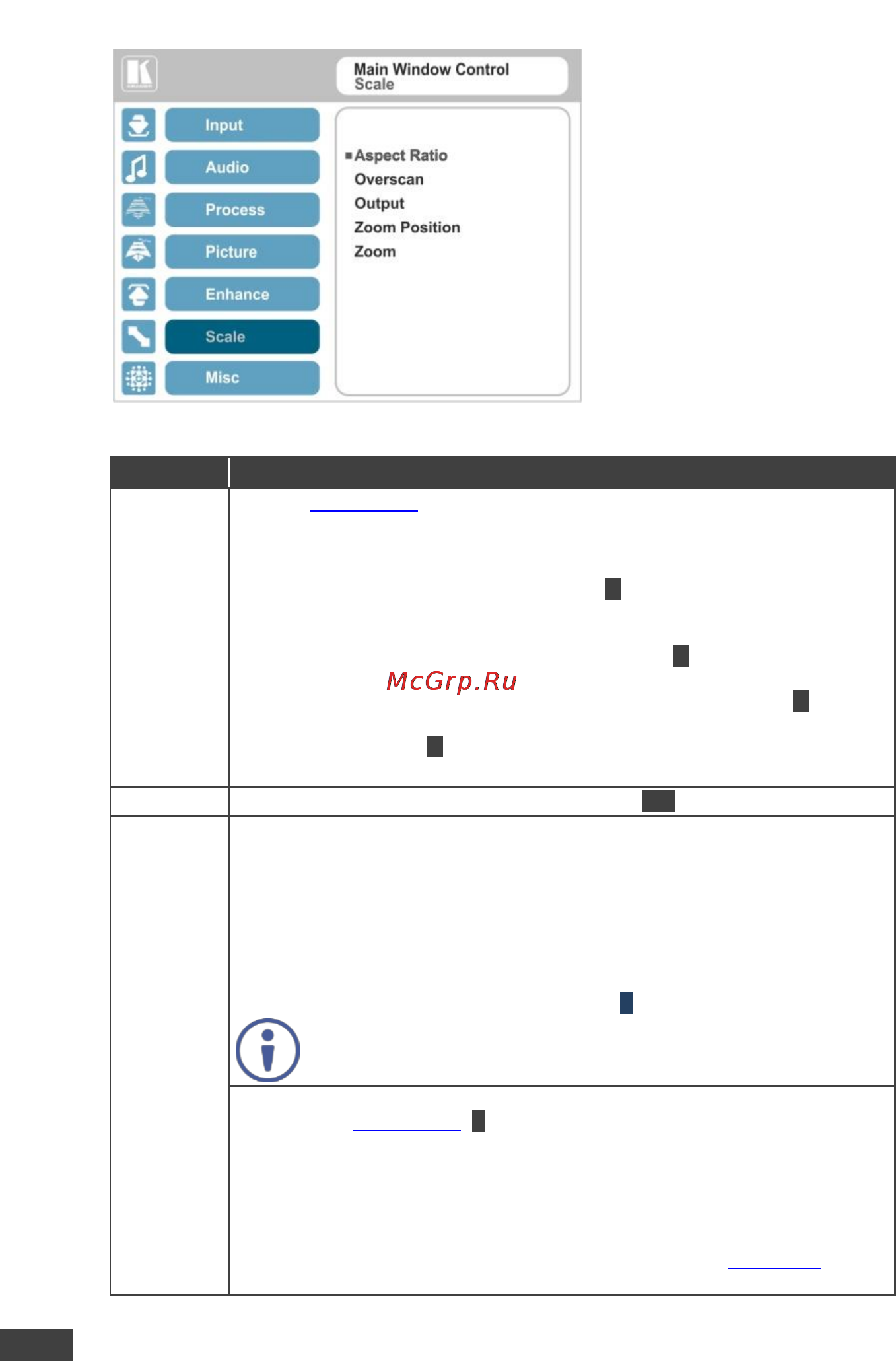

Figure 22: Scale Menu

Setting

Function

Aspect

Ratio

Set (see Section 6.7.1) to:

Follow Input – Display on the output with pixel-to-pixel mapping of the input. If

the input resolution ≤ output resolution, display with a blank border.

If the input resolution > output resolution, Follow Input is denied and the aspect

ratio automatically changes to Follow Output M

Follow Output – Display as a full picture at the selected output resolution. If

the input resolution < output resolution, scale up the picture. If the input

resolution > output resolution, scale down the picture M

Best Fit – the best possible compromise between the input and the output

aspect ratios, showing the largest possible picture with no distortion M

Letterbox – to compress the top and bottom edges of the input signal, but fill

the width of the screen M

Applies to the Single Window display mode only

Overscan

Set the overscan (per window) to Off, 5% or 10% M/P

Output

Set the:

Output Resolution – to Native, 640x480@60, 640x480@75, 800x600@50,

800x600@60, 800x600@75, 1024x768@50, 1024x768@60, 1024x768@75,

1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50, 1280x1024@60,

1280x1024@75, 1360x768@60,1366x768@50, 1366x768@60, 1400x1050@50,

1400x1050@60, 1600x900@60, 1600x1200@50, 1600x1200@60,

1680x1050@60,1920x1200@60, 480i60, 480p60, 576i50, 576p50, 720p50,

720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30,

1080p50, 1080p59.94, 1080p60, 2k50 or 2k60 E

Note that any change in the output resolution will cancel the

zoom setting and window customization

Master Connection – to HDMI, DGKat or PC to determine the machine’s

behavior (see Section 6.7.2) E

If the native resolution is not supported by the selected Master Connection, the

system searches for the best supported resolution. If the search fails (for

example, if the master connection is disconnected or EDID is unreadable), the

resolution will default to XGA.

SDI is not applicable and appears transparent. If the transparency of the OSD

menu is set to ON this menu item will become invisible (see Section 6.8)

Deep Color – to Off (the default) for 8bit color depth or to Follow Output for
