VP-770 - Using the Embedded Web Pages

9.3 The Input Settings Page

The Input Settings page (see Figure 68) lets you label the selected input on the

main and PIP windows and save it, and define the input settings.

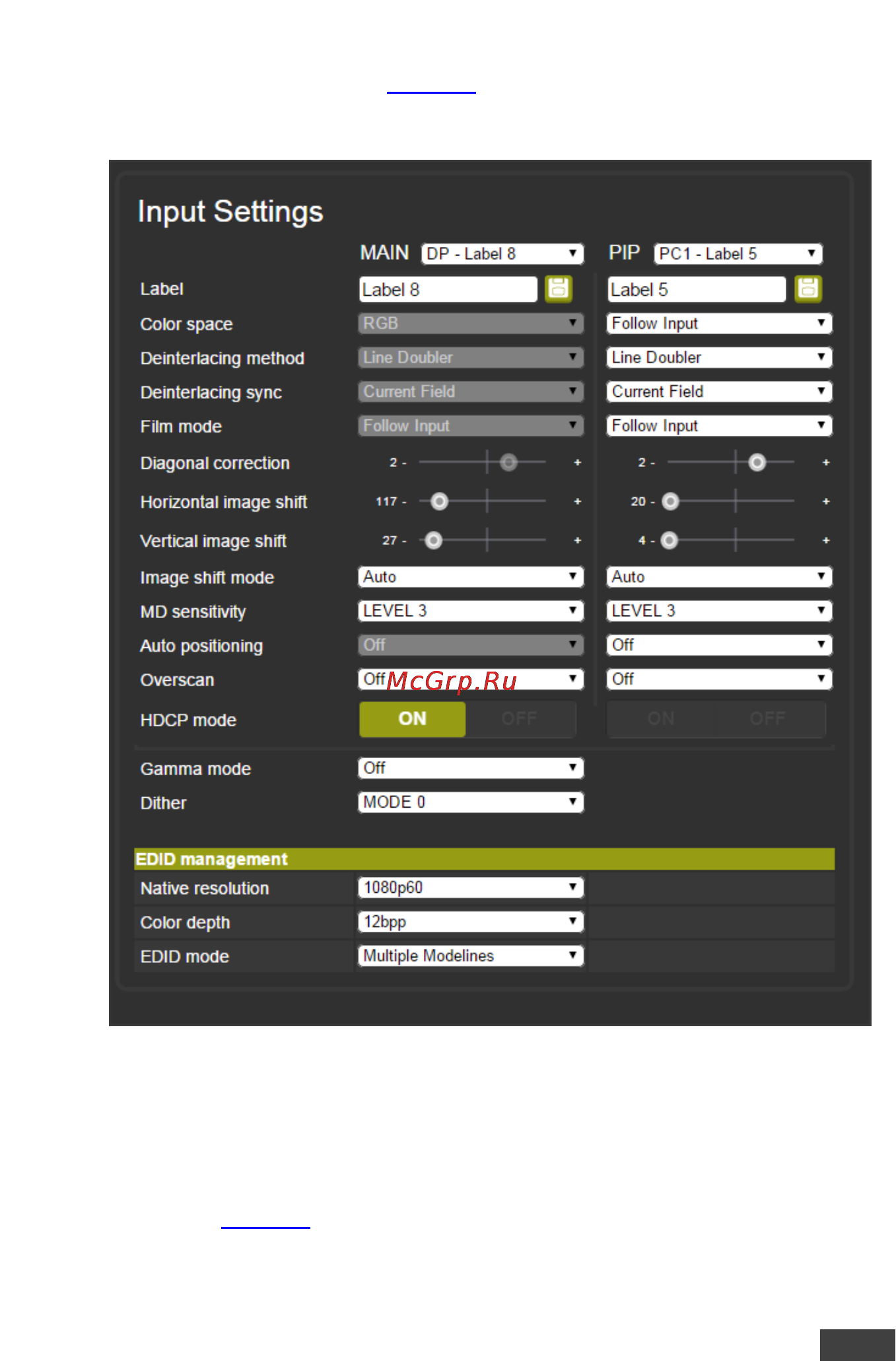

Figure 68: The Input Settings Page

Note that Color depth is available for HDMI and DP inputs only.

If the PIP window is not active, you can activate it by clicking the Activate PIP

button (see Figure 69).
