Kramer VP-770 [68/123] Swapping inputs

VP-770 - Using the Embedded Web Pages

9.1.2 Swapping Inputs

Press the Swap Inputs button to swap between MAIN and PIP inputs.

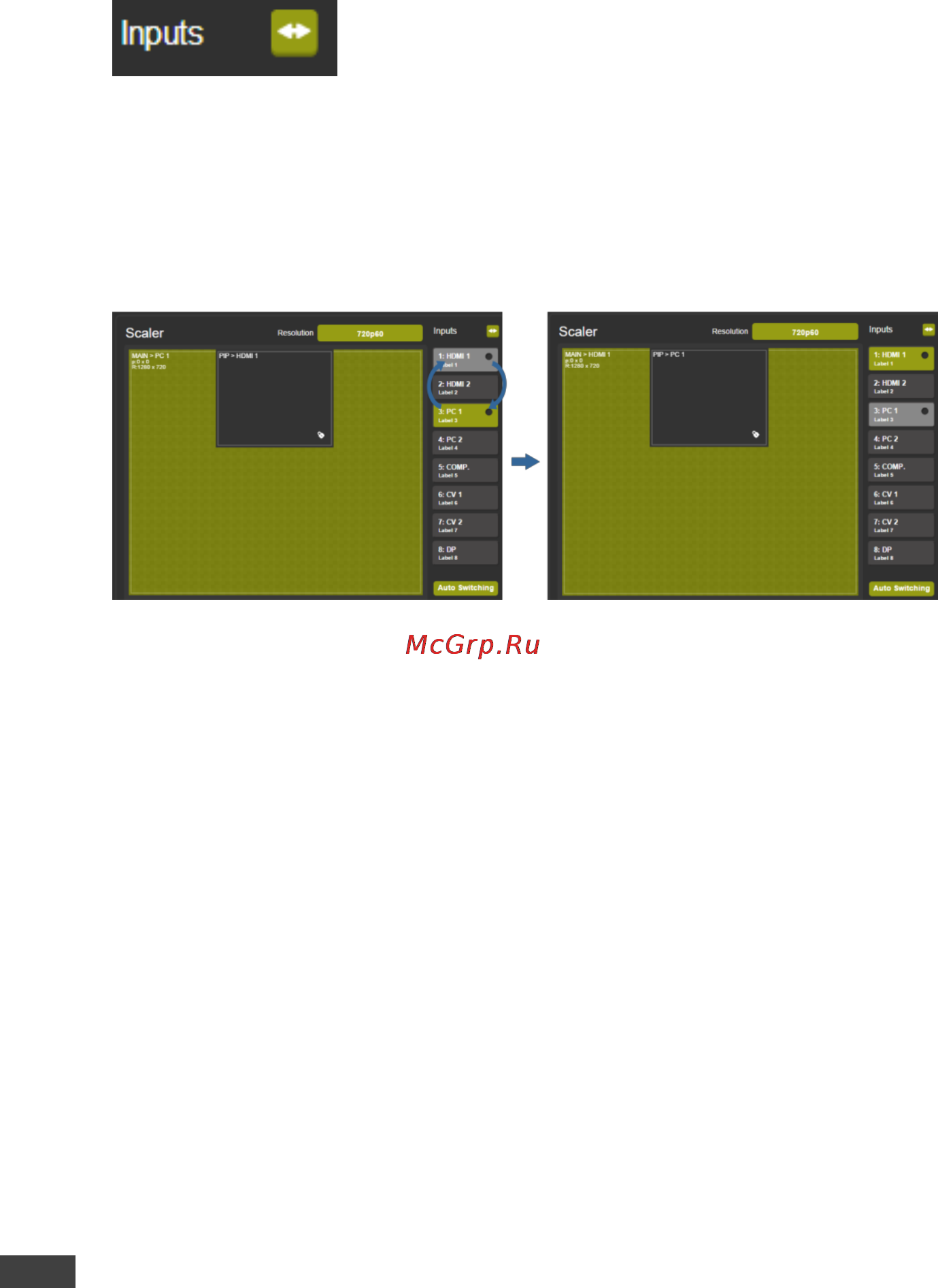

Figure 43: The Routing & Scaling Page – The Swap Inputs

For example, if the MAIN window displays input 3 (PC 1) and the PIP window

displays input 1 (HDMI 1), these inputs swap places when clicking the Swap Inputs

button, so the MAIN window will now show HDMI 1 and the PIP window will show

PC 1:

Figure 44: The Routing & Scaling Page – Swapping the Inputs
