48
VP-770 - Controlling the VP-770
8.4.1 Connecting to the VP-770 via your Browser
Note that if the Protocol is set to Legacy (via the Miscellaneous menu,
see Section 6.8), the Web pages may not function properly.
Make sure that your PC is connected via a network to the VP-770 and do the
following:
1. Open your Internet browser.
2. Enter the unit’s IP number or name in the Address bar of your browser.
If you are using DHCP, you have to enter the name.
The default IP number is 192.168.1.39, and may be changed by the system
integrator

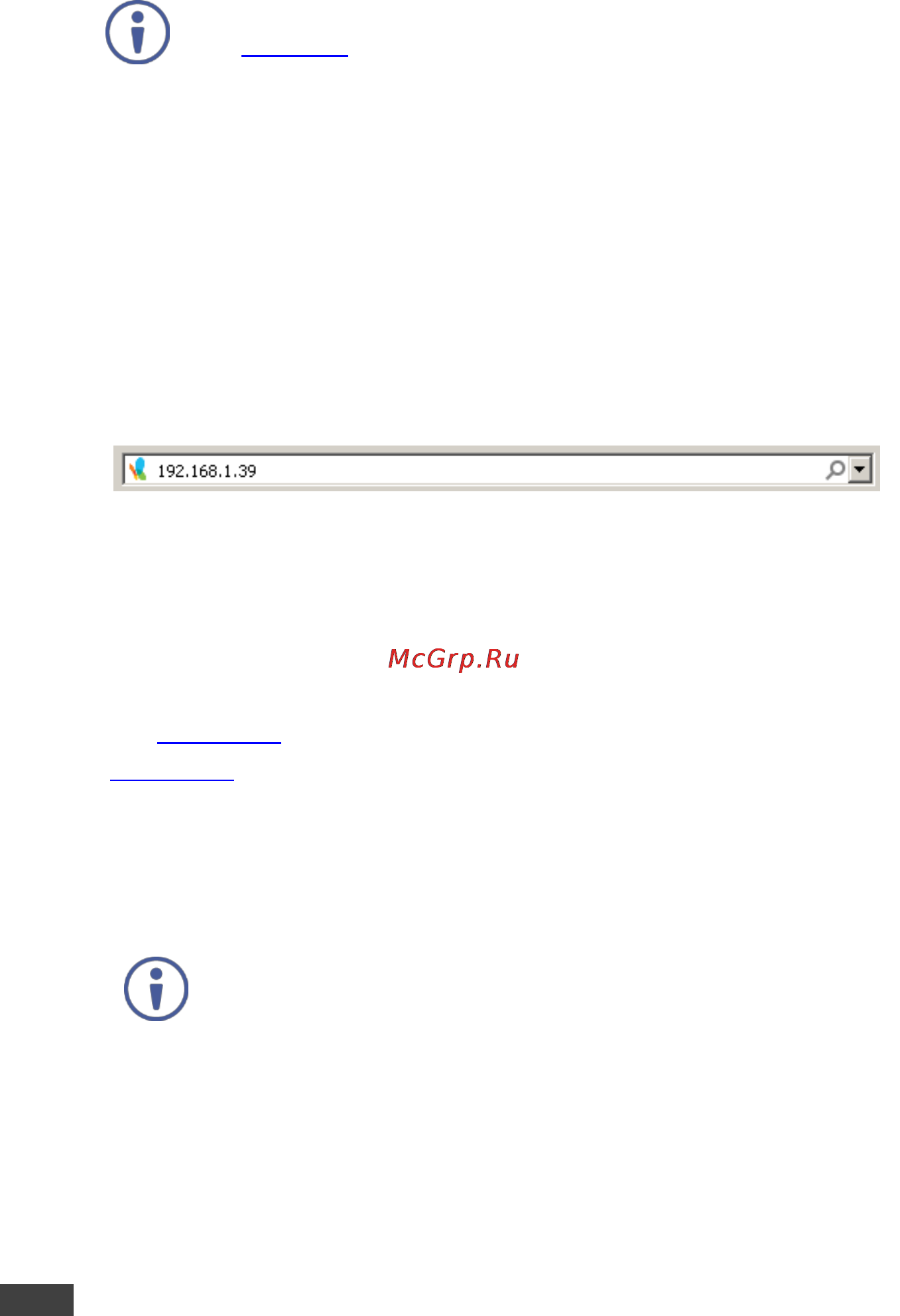

Figure 27: Entering the IP Number in the Address Bar
You can now control the machine via the Web page.
8.5 Connecting the VP-770 via the ETHERNET Port
You can connect the VP-770 via the Ethernet, using a crossover cable
(see Section 8.5.1) for direct connection to the PC or a straight through cable (see
Section 8.5.2) for connection via a network hub or network router.
8.5.1 Connecting the ETHERNET Port directly to a PC
You can connect the Ethernet port of the VP-770 directly to the Ethernet port on
your PC using a crossover cable with RJ-45 connectors.
This type of connection is recommended for identifying the VP-770
with the factory configured default IP address.
After connecting the VP-770 to the Ethernet port, configure your PC as follows:
1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
