VP-770 - Using the Embedded Web Pages

9.11 Save or Upload a Configuration

The VP-770 Web page lets you upload a saved configuration or save a

configuration. To do so, click the Upload (see Figure 90) and Save (see Figure 91)

buttons, respectively, which are located at the lower part of the menu list.

Note that the configuration is automatically saved to the Downloads

folder and uploaded from it as well

When saving a configuration, the file automatically saves it to the Downloads

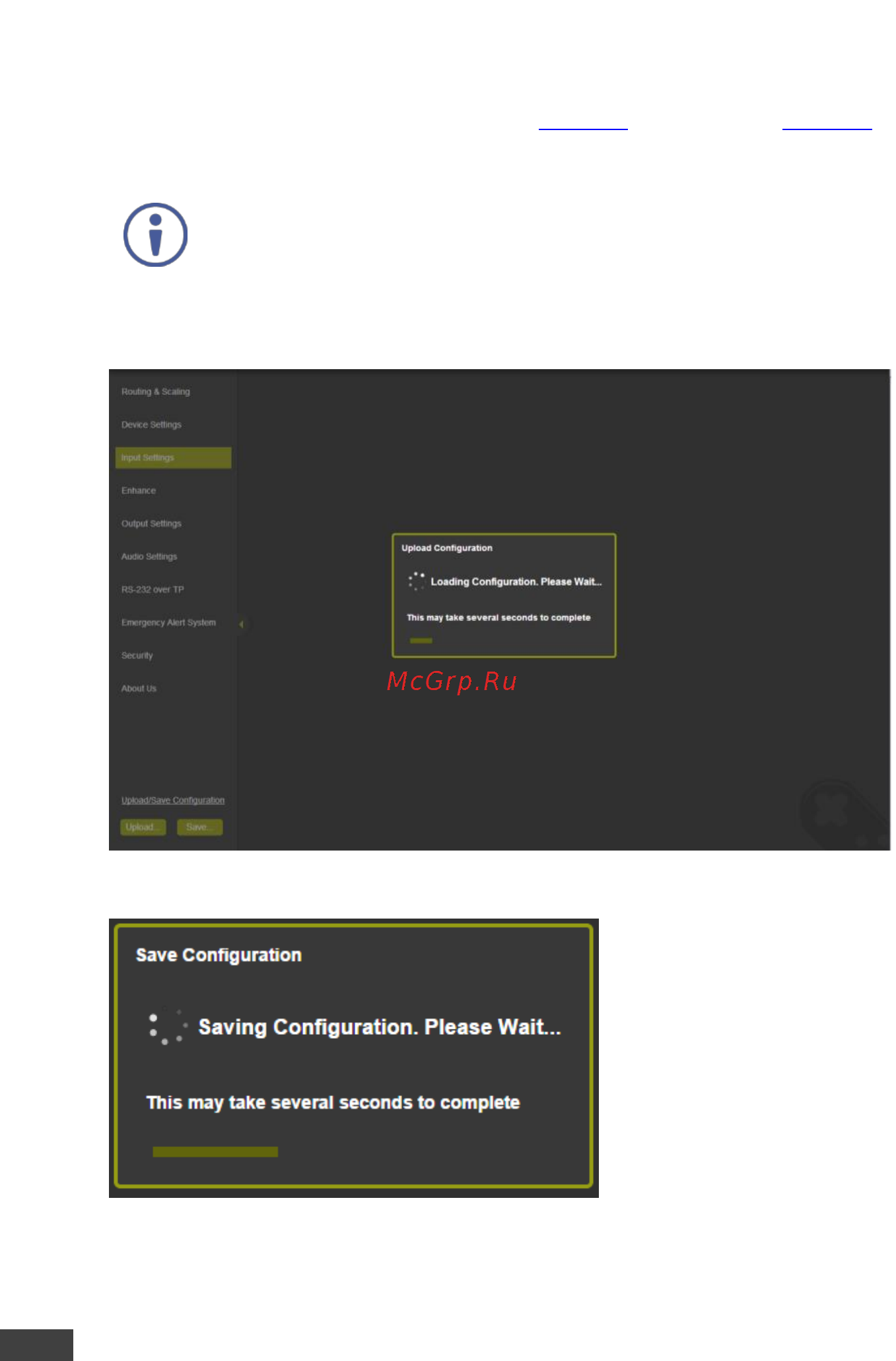

Figure 90: Loading a Configuration

Figure 91: Saving a Configuration
