Kramer VP-770 [73/123] The take mode

VP-770 - Using the Embedded Web Pages

9.1.4.1 The TAKE Mode

Click the TAKE button to enter the TAKE (Confirm) mode. A fine red line encircles

the functions that apply to the TAKE mode (for example, the inputs):

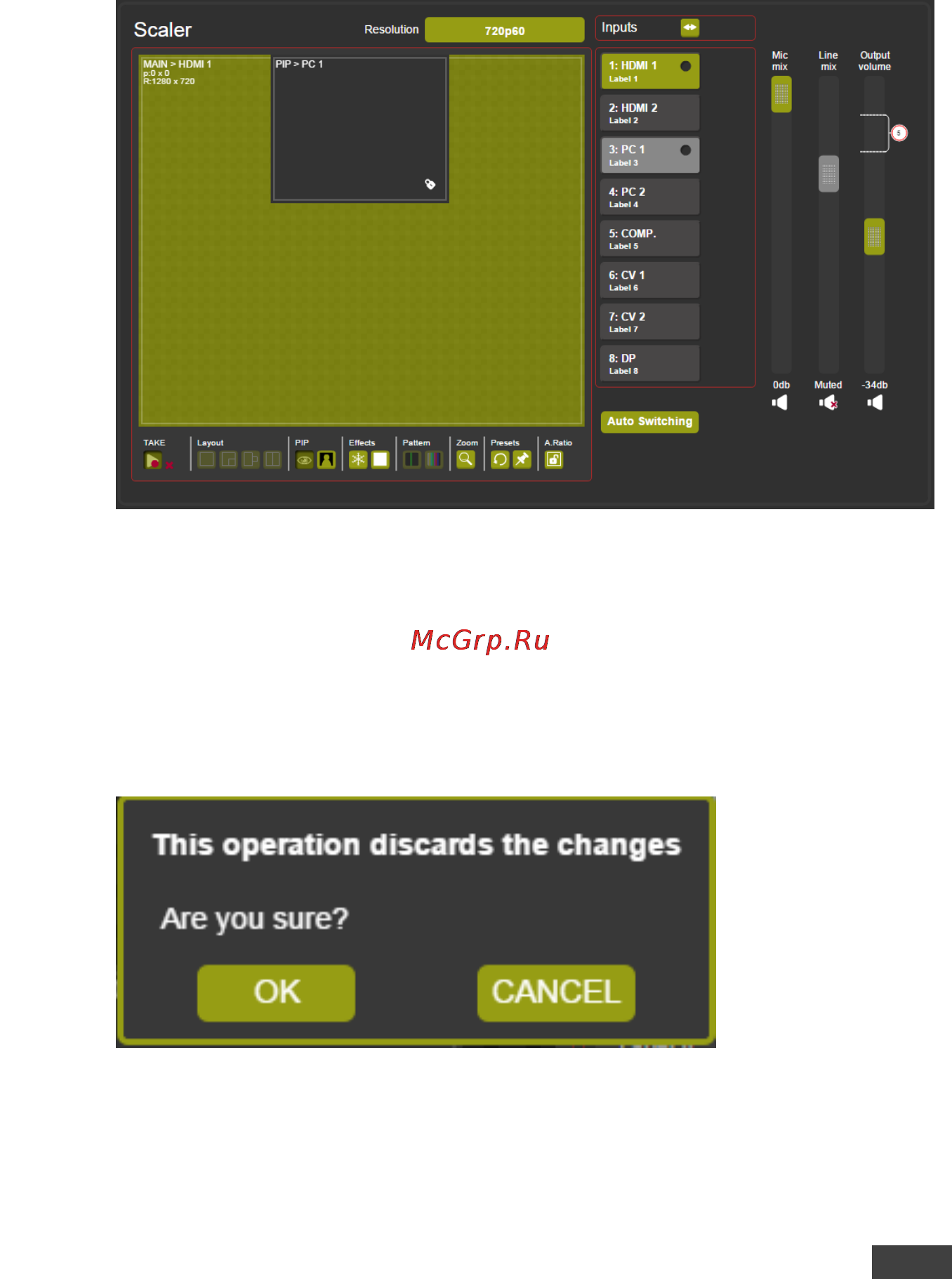

Figure 52: The Routing & Scaling Page – TAKE Mode

Set the changes (for example, the MAIN window input) and click the TAKE button

once again. The changes are carried out and the red lines disappear.

Clicking the cancel button will cancel the changes (before pressing TAKE for the

second time):

Figure 53: The Routing & Scaling Page – Cancel the Changes
